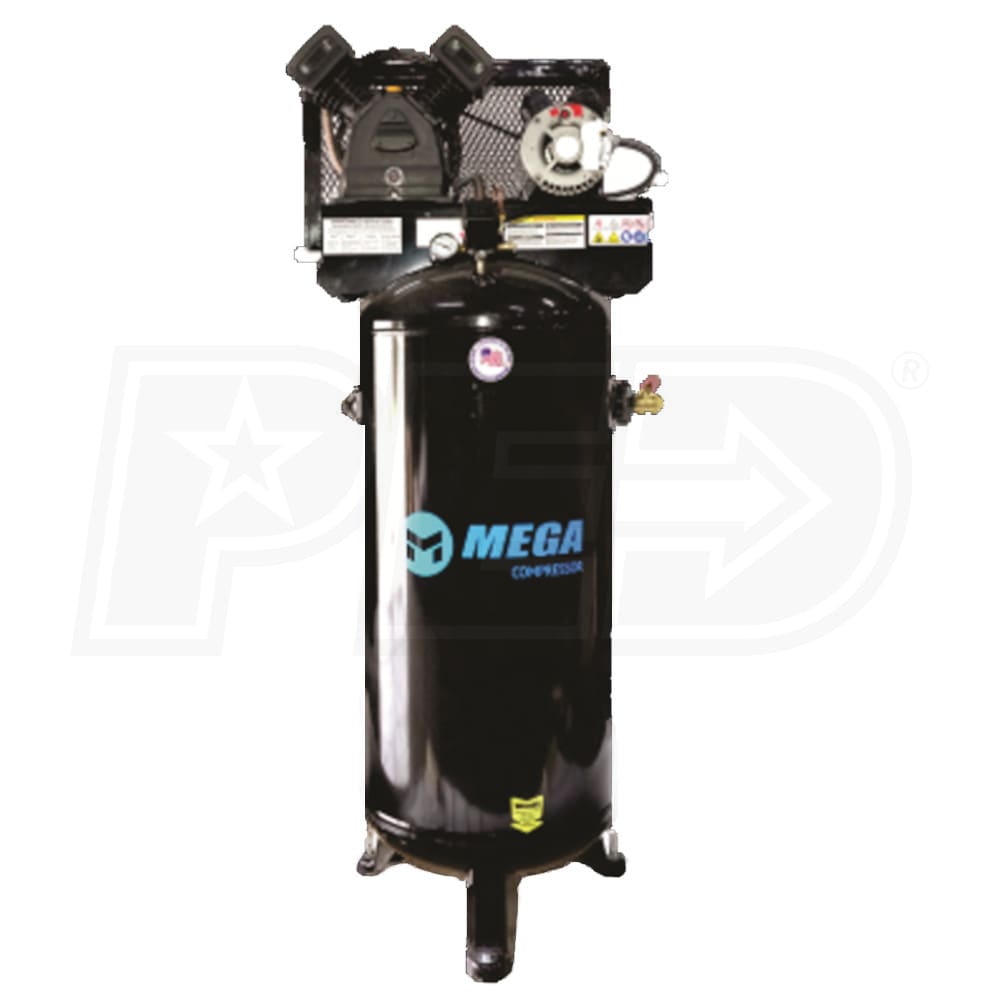

MEGA 3-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase - 150 PSI)

Model:

MP-6060VU

Write A Review
$831.20
Was $1,039.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

MEGA 3-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase - 150 PSI)
MEGA 3-HP 60-Gallon Single-Stage Air Compressor (208/230V 1-Phase - 150 PSI)
Model: MP-6060VU
$831.20
Was $1,039.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Single Stage 1-Phase

CFM

12

Tank Size

60

  • MEGA Single-Stage Air Compressor
  • Perfect for DIY projects to the professional air compressor user
  • Heavy-Duty 3-HP Induction Motor
  • 208/230-volt single-phase motor
  • Provides maximum performance and efficiency
  • Delivers 12 CFM @ 90 PSI: Max 150 PSI
  • Plenty of power to run a wide range of air tools
  • Tackle airbrushing, drilling, sanding and bolting/wrenching
  • Cast Iron V-Twin Oil Lubricated Pump
  • Thermally stable cast iron cylinder body
  • Aluminum head and machine cast iron valve plate
  • Aluminum pump head helps dissipate heat for longer pump life
  • "V" Design
  • Minimizes vibration, improves cooling, extends compressor life
  • One-Piece Cast Iron Crankcase
  • Durable automotive-style ball bearings
  • Stainless steel reed valves for increased volumetric efficiency
  • 60-Gallon Vertical Tank
  • Fully enclosed belt guard protects you and the belt
  • Easy-access manual drain simplifies routine maintenance
  • Easy Viewing Oil Sight Glass On Pump
  • Easily check compressors pump oil level
  • Conveniently accessible oil fill for fast maintenance
  • 1-Year Limited Manufacturer Warranty
  • Protect your investment
  • Shipped with 100% full synthetic air compressor
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

MP-6060VU
specs product image PID-118699
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
14
Recommended Breaker
30 Amp Breaker
Engine
HP
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
12
CFM Rated @
90 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
300 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
28 Inches
Product Width
32 Inches
Product Height
70 Inches
Power Type
Electric
UPC
376204971904
