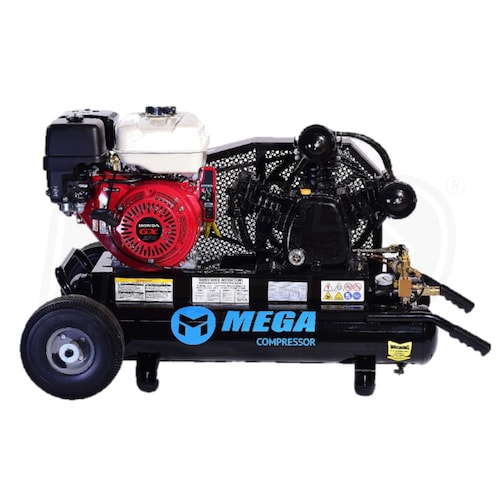

MEGA 9-HP 10-Gallon Gas Air Compressor w/ Electric Start Honda Engine (180 PSI)
Model:
MP-9010HGE
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Portable - Horizontal
Engine Brand
Honda GX
CFM
18
Tank Size
10
- Reliable 9-HP Honda GX270 OHV Engine w/ Electric Start
- Low oil engine shutdown for maximum reliability
- Easy starting, high low fuel and oil consumption and reduced noise levels
- Delivers 18 CFM @ 90 PSI: Max 180 PSI
- Plenty of power to run a wide range of air tools
- Low 1100 RPM reduces wear and tear for longer lifespan
- Cast Iron Splash Two-Stage Lubricated High Stroke Pump
- Thermally stable cast iron cylinder body
- Aluminum head and machine cast iron valve plate
- Aluminum pump head helps dissipate heat for longer pump life
- One-Piece Cast Iron Crankcase
- "W" Design minimizes vibration and improves cooling
- Durable automotive-style ball bearing and stainless-steel reed valves
- Easy Viewing Oil Sight Glass
- Simply check compressors pump oil level
- Conveniently accessible oil fill for fast maintenance
- 10-Gallon Capacity Twin Wheelbarrow Style Tanks
- Fully enclosed belt guard protects you and the belt
- Manual tank drain for quick tank draining to prevent rust
- Pneumatic wheels and sturdy grip handles make transporting effortlessly
- Top-Mounted Control Panel
- 3/8" quick connect outlet and easy to read pressure gauges
- Regulator allows maximum air flow for peak tool performance
- 1-Year Limited Warranty
- Protects your investment
- Shipped with 100% full synthetic air compressor oil
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MP-9010HGE
General Information
Product Category
Air Compressor - Portable
Engine
HP
9
CC
270
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
18
CFM Rated @
90 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
180 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
10 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
228 Pounds
CARB Compliant
No
Consumer Warranty
1 Year
Product Length
36 Inches
Product Width
48 Inches
Product Height
40 Inches
Power Type
Gas
UPC
376204971744
