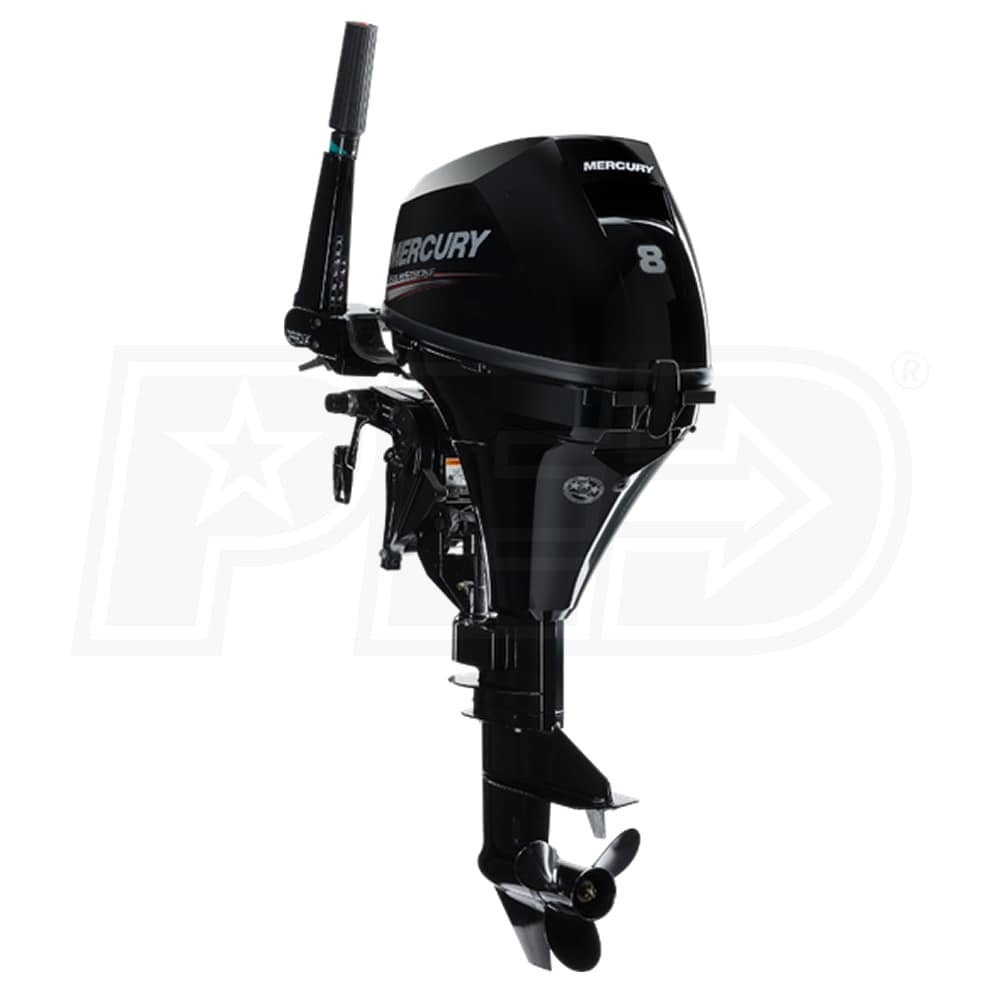

Mercury 8 HP (15") Shaft Gas Powered Outboard Motor w/ Electric Start

Model:

1F08301BK

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Mercury 8 HP (15
Mercury 8 HP (15") Shaft Gas Powered Outboard Motor w/ Electric Start
Model: 1F08301BK
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Strong & Compact
  • The thrust and efficiency you need to power heavier boats
  • Single overhead cam (SOHC) with 2 valves per cylinder for max output
  • Low oil pressure and over-rev alerts keep you and your engine safe
  • Easy Starting
  • Convenient electric start with manual recoil backup
  • 6-Amp alternator maintains the battery's charge
  • 3-Position choke for faster starts and warm-ups
  • Exclusive Multi-Function Tiller Handle
  • Tiller style twist grip throttle for easy, straightforward operation
  • Adjustable co-pilots for controlled throttle and steering resistance
  • Steering, tilting, stopping, throttle/shifting all in the palm of your hand
  • Total Control
  • Long tiller handle offers the best for steering and hull control
  • Tilts up for easy operation and can be locked in up position
  • Tilts down for storage for safe and convenient storage
  • Six Manual Trim Positions w/ Water Drive
  • Exclusive ratcheting transom bracket for easy tilt adjustments
  • Simply push down on the handle to tilt the motor into position
  • Engage the Shallow Drive System to tilt motor when in shallow waters
  • Dual Water Pickups
  • The gearcase is equipped with a secondary water pick-up
  • Helps prevent overheating if primary intakes clogs
  • Easy Maintenance & Transportation
  • Lightweight design and built-in handles for painless transportation
  • Features an oil drain plug for quick and hassle-free oil changes
  • Enjoy the convenience of the automotive spin-on type oil filter
  • Requires Battery w/ 465 Marine Cranking Amps (Sold Separately)
  • The motor is NOT capable of remote operation, tiller handle control use ONLY
  • ***State Registrations Take 2-3 Weeks To Arrive After Request***
California residents see
Warning: This product can expose you to chemicals including Gasoline engine exhaust (condensates/extracts) which is known to the State of California to cause Cancer
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

1F08301BK
specs product image PID-97574
General Information
Product Category
Outboard Motor
Engine
CARB Compliant
Yes
Fuel System
Carbureted
Engine Brand
Mercury
Engine Type
4-Stroke SOHC
Cylinder Count
2 Cylinder
Horsepower
8
Engine Displacement
208 CCs
Bore & Stroke
2.16 x 1.73 Inches
Full Throttle RPM Range
5,000 - 6,000
Starting System
Recoil w/ Electric Start
Charging System
6-Amp (76 watt)
Cooling System
Water Cooled
Ignition System
Digital CDI
Exhaust System
Through Prop
Power Tilt
No
External Fuel Tank
Included w/ Fuel Hose
Power Trim
No
Fuel
Unleaded 87 Octane
Fuel Tank Capacity
3.2 US gal Aux Tank
Oil Recommended Viscosity
10W-30 Marine Oil
Oil Pressure Alert
Yes
Engine Oil Capacity
.84 US qt. (27 oz.)
Engine Oil Included
No
Drive
Steering
Tiller
Gear Ratio
2.08:1
Gear Shift
F-N-R
Propeller Blades
3
Propeller Material
Aluminum
Transom Height
15 Inches
Overview
Product Category
Outboard Motor
Weight
91 Pounds
Consumer Warranty
3 Years
Product Length
46 Inches
Product Width
15 Inches
Product Height
35 Inches
Power Type
Gas
UPC
678633127014
Additional Model Numbers

1F08301KK, 1F08301BK
