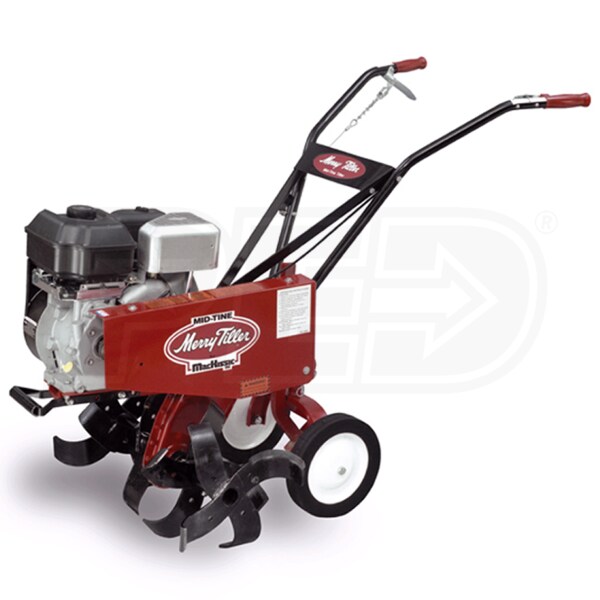

Merry Tiller Suburban (14"/26"/37") 163cc Forward Rotating Mid-Tine Tiller

Model:

ST750IC

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Merry Tiller Suburban (14
Merry Tiller Suburban (14"/26"/37") 163cc Forward Rotating Mid-Tine Tiller
Model: ST750IC
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

  • 163cc Briggs & Stratton 4-Cycle OHV IC Engine
  • The power serious gardeners demand with 7.5 lb-ft gross torque
  • Dura-Bore cylinder sleeves protect engine from dust particles
  • Double Gear Reduction Roller Chain Drive Transmission
  • Roller chains deliver added power to tine and gear drive
  • 1-1/4" diameter case with heat-treated, hardened sprockets/shafts
  • Mid-Tine Design
  • Engine mounted over tines for better weight balance
  • Easy Swing Away Wheels
  • Wheel assembly lifts up and locks out of the way
  • Spring pin system holds wheel assembly to rear hitch
  • Adjustable Tine Width
  • Three width options; 14", 26", or 37"
  • 14" is ideal for cultivating in tight areas or around plants
  • 26"/37" widths allows you cover more with fewer passes
  • To achieve 37" width, additional tine model MT-1703 is needed
  • Slasher Tines
  • Welded, hardened, and polished carbon steel design
  • Wheel & Drag Bar Assembly
  • Helps balance machine and ensures safety
  • Adjusts to accommodate varied working conditions
  • Finger Tip Clutch Control
  • Allows you to control variable speeds with a push of a lever
  • Helps protect against "tiller runaway"
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ST750IC
specs product image PID-82072
General Information
Product Category
Tiller
Engine
Engine Brand
Briggs & Stratton I/C
Starting System
Recoil Start
Engine Cycle
4-Cycle
CC
163 CCs
Fuel Tank Size
0.82 Gallons
Engine Cylinders
1 Cylinder
Oil Filter
No
Torque
7.5 Lbs
Consumer Engine Warranty
2 Years
Commercial Engine Warranty
1 Year
Tines
Tine Position
Middle
Tine Direction
Forward Rotation
Tine Diameter
12 Inches
Depth Adjustments
3 Positions
Tine RPM
106
Tilling Width Min
14 Inches
Tilling Width Max
37 Inches
Tilling Depth Min
12 Inches
Tilling Depth Max
12 Inches
Overview
Product Category
Tiller
Weight
126 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
90 Days
Product Length
54 Inches
Product Width
26 Inches
Product Height
40 Inches
Power Type
Gas
UPC
736107190589
Drive
Forward Speeds
1 Forward
Transmission
Chain Gear
Accessories
Side Shield
No
Wheels
Rear Tire Size
10 Inch
Tire Type
Plastic Wheels
