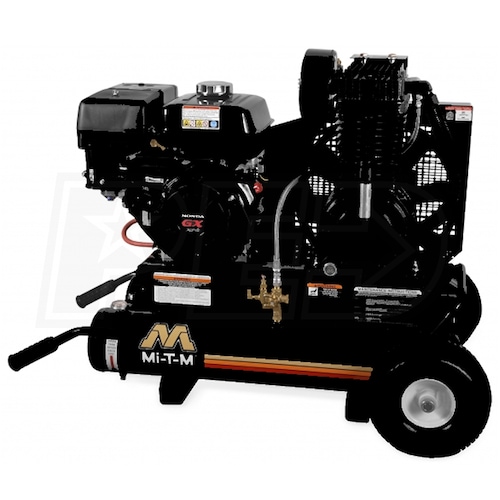

Mi-T-M 8-HP 8-Gallon Gas Two-Stage Wheelbarrow Air Compressor w/ Honda Engine

Model:

AM2-PH09-08M

Write A Review
$2,249.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-5 Business Days

Mi-T-M 8-HP 8-Gallon Gas Two-Stage Wheelbarrow Air Compressor w/ Honda Engine
Mi-T-M 8-HP 8-Gallon Gas Two-Stage Wheelbarrow Air Compressor w/ Honda Engine
Model: AM2-PH09-08M
$2,249.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

Wheel Barrow

Engine Brand

Honda

CFM

17.2

Tank Size

8



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • This Unit Can Go Where The Big Jobs Are
  • Higher CFM and air capacity can run multiple tools at once
  • Handles & pneumatic tires allow easy shifting around the jobsite
  • Cast Iron Cylinder & Splash Lubricated, Cast Iron Crankcase
  • Rugged and durable to work hard and last a long time
  • Stainless steel braided discharge hose
  • 16.5 Inch Flywheel For Extra Cooling & Longer Life
  • Belt tightening system pulls engine straight- keeps belt aligned
  • Guard allows easy access to belts; powder coating resists rust
  • Reliable Honda 8-HP OHV Engine
  • Mounted on a 7 gauge base plate to reduce vibration
  • Quality pilot valve unloader & large canister intake filter
  • Regulator and 2 gauges for tank and outlet pressure
  • Pneumatic idle control to conserve fuel
  • Generous Warranty
  • 2 year limited warranty on Honda engine
  • 2 year limited pump exchange program
  • 2 year limited warranty on the rest of the unit
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

AM2-PH09-08M
specs product image PID-3076
General Information
Product Category
Air Compressor - Portable
Engine
HP
8
Auto Idle
Yes
Engine Brand
Honda
Starting System
Recoil Start
Engine Low Oil Shut-off
No
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17.2
CFM Rated @
175 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
260 Pounds
Consumer Warranty
2 Years
Commercial Warranty
2 Years
Product Length
44 Inches
Product Width
26 Inches
Product Height
31 Inches
Power Type
Gas
UPC
016977990688
