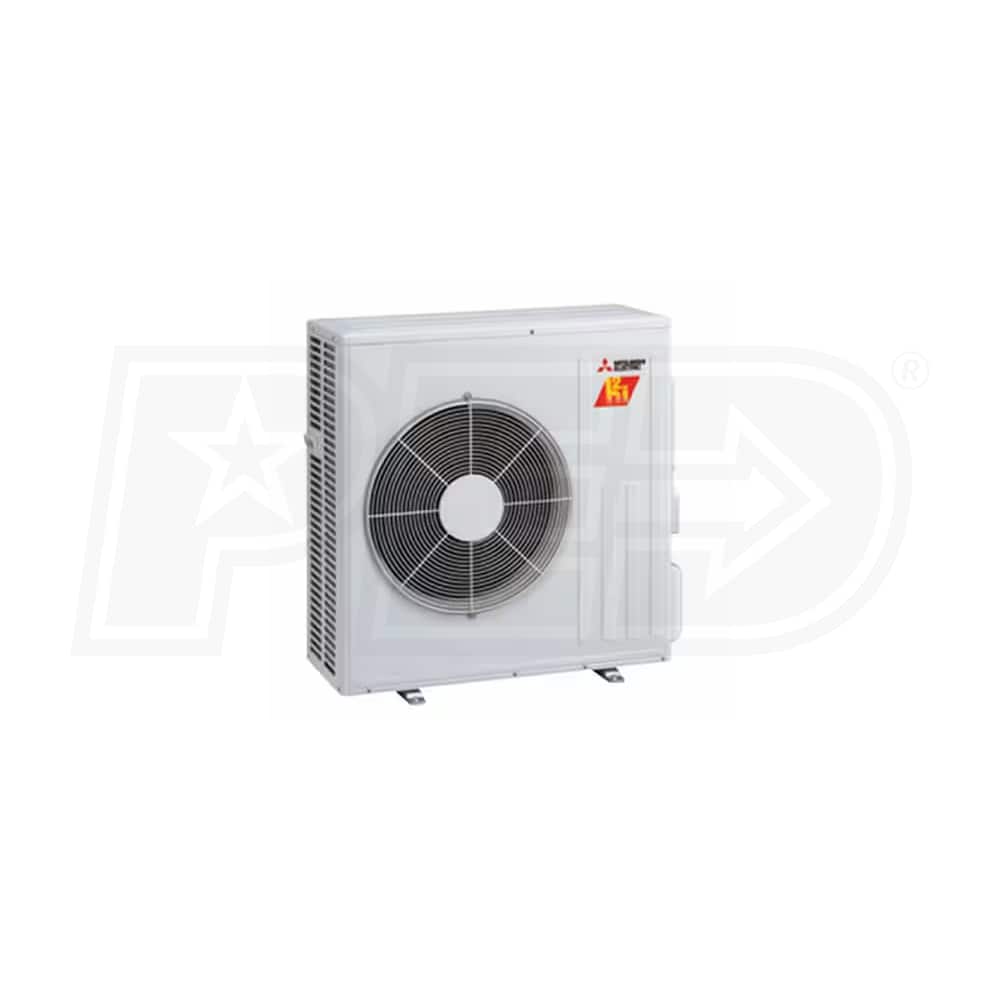

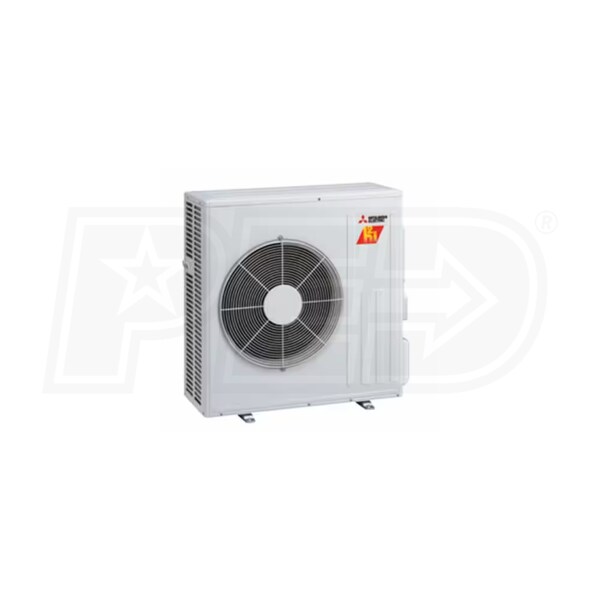

Mitsubishi - 15k BTU - KJ-Series Outdoor Condenser - Single Zone Only - Scratch and Dent

Model:

MUFZ-KJ15NAHZ-U1-SD

Write A Review
Not For Individual Sale
Continue Shopping With These Categories
Mitsubishi - 15k BTU - KJ-Series Outdoor Condenser - Single Zone Only - Scratch and Dent
Mitsubishi - 15k BTU - KJ-Series Outdoor Condenser - Single Zone Only - Scratch and Dent
Model: MUFZ-KJ15NAHZ-U1-SD
$1,367.43
Was $1,823.24
Not For Individual Sale
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    ***Scratch and Dent***Product has damage to the front panel and fin damage. Please Note: Due to the limited availability of this model, these products will be sold in systems only. Should you have any questions please contact our sales center for alternate options.

Specifications

MUFZ-KJ15NAHZ-U1-SD
specs product image PID-148999
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Base Pan Heater Included
Yes
Performance
Cooling BTU
15000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
55 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating Learn More
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
14 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
16 Amps
Recommended Breaker Size
20 Amps
Dimensions
Maximum Line Length
100 Feet
Gas Connection Size
1/2 Inch
Liquid Connection Size
1/4 Inch
Product Height
34 5/8 Inches
Product Width
33 1/16 Inches
Product Depth
13 Inches
Product Weight
124 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
