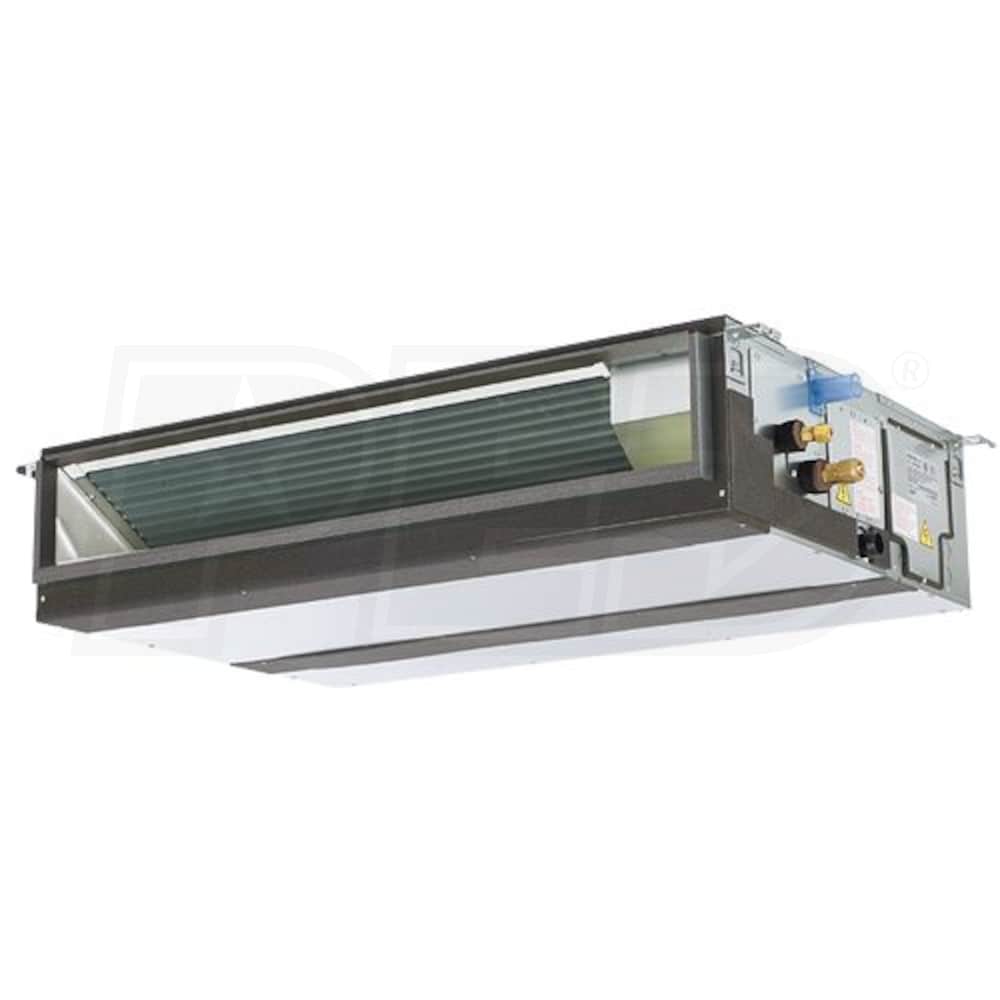

Mitsubishi PEAD-A36AA7
Mitsubishi PEAD-A36AA7
Hover to zoom
1 Of 5

Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone

Model:

PEAD-A36AA7

Write A Review
$2,648.26
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Tuesday, Nov 5th
Shipping to60601
synchrony card logo
$47 / Month
With our 86 months 11.99% APR*
86 fixed monthly payments required.
Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone
Mitsubishi - 36k BTU - P-Series Concealed Duct Unit - For Multi or Single-Zone
Model: PEAD-A36AA7
$2,648.26
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Product Note
    • This product requires a compatible mini split outdoor condenser and the following accessories for indoor unit installation:
    • Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
    • Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing..
    • Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
    • Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
    • Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
    • Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
    Adding these accessories to your order will provide a complete, ready-to-install mini split system.

Specifications

PEAD-A36AA7
specs product image PID-84622
Overview
Product Category
Mini Split System Components
General Information
Type
Concealed Duct
Product Line
P-Series
Product Category
Mini Split System Components
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Indoor Unit Size(s) Learn More
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
36
Motor Type
Variable-Speed
Performance
Cooling BTU
36000
Cooling Capacity
36000 BTU
Maximum Air Flow
1201 CFM
Minimum Air Flow
847 CFM
Electrical Data
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
3.3 Amps
Recommended Breaker Size
30 Amps
Dimensions
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
9 7/8 Inches
Product Width
55 1/8 Inches
Product Depth
28 7/8 Inches
Product Weight
101 Pounds
Shipping Weight
101 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
