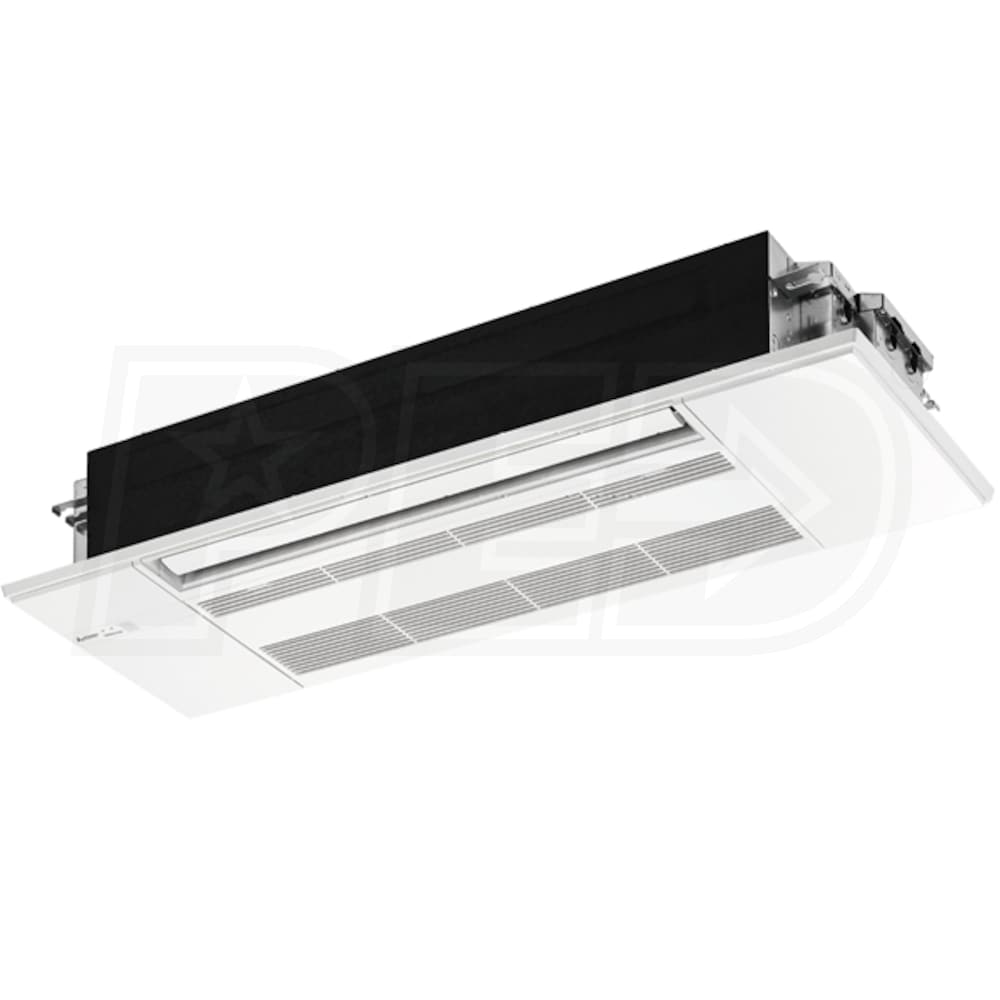

Mitsubishi - 9k BTU - M-Series One-Way Ceiling Cassette without Grille - For Multi or Single-Zone
Model:
MLZ-KP09NA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Hot-Start
- Mitsubishi's hot start technology prevents cold drafts by delaying fan operation until the heat exchanger has warmed up.
- Dehumidification
- When the indoor unit runs in dry mode, the coil's temperature stays just below the dew point of the return air, removing unwanted moisture. This improves comfort and reduces the chance of mold growth and other property damage in the conditioned space.
- Vane Control
- Optimal air flow can be achieved with the MLZ-KP09NA thanks to the vane control option. This function provides access to an auto mode and a swing mode.
- Condensate Removal System
- The MLZ-KP09NA contains an internal drain mechanism capable of lifting condensate 19-11/16". This simplifies installation and prevents condensate overflow, which can damage or destroy your property.
Specifications
MLZ-KP09NA
General Information
Type
Ceiling Cassette
Product Line
M-Series
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Grille
Not Included
Required Grille Model
MLP-444W
Performance
Cooling BTU
9000
Cooling Capacity
9000 BTU
Maximum Air Flow
325 CFM
Minimum Air Flow
212 CFM
Minimum Sound Level
26 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
38 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
7 5/16 Inches
Product Width
43 3/8 Inches
Product Depth
14 3/16 Inches
Product Weight
34 Pounds
Grille Depth
15/16 Inch
Grille Width
16 11/16 Inches
Grille Length
47 1/4 Inches
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
