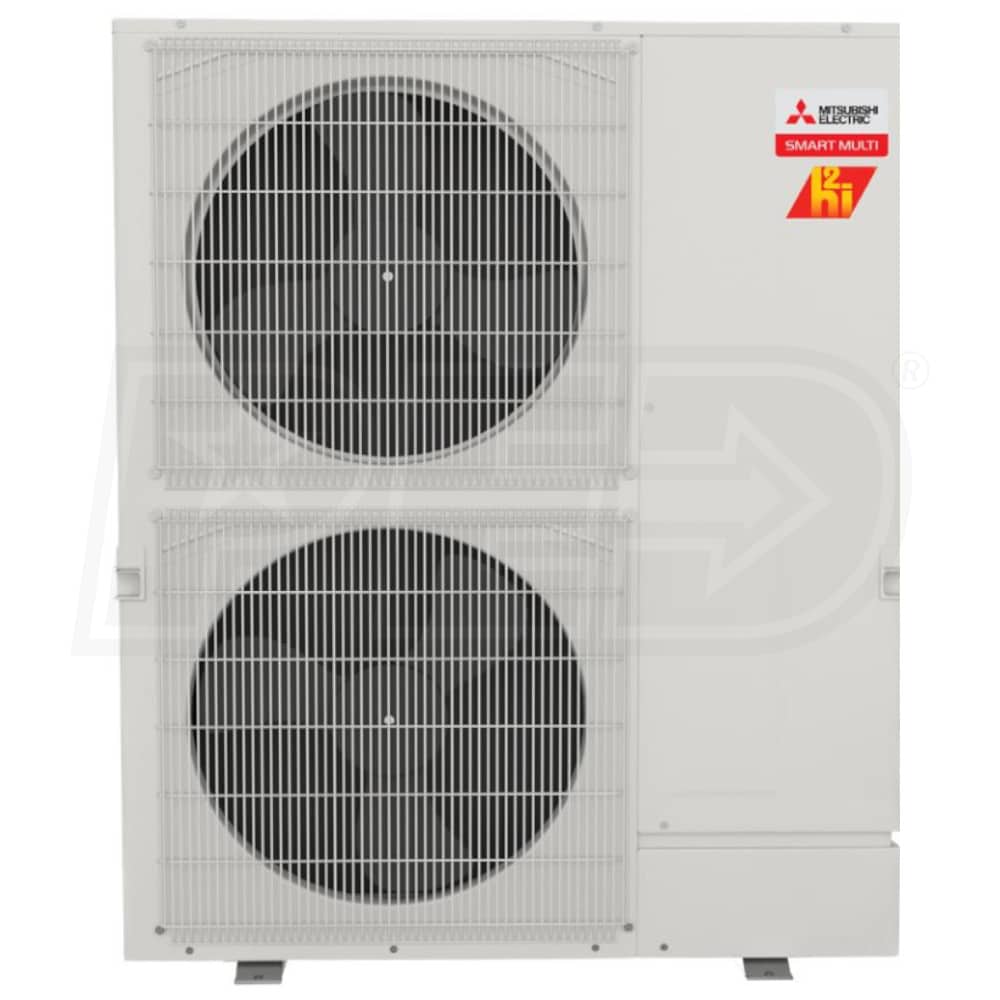

Mitsubishi - 48k BTU - M-Series H2i Outdoor Condenser - For 2-8 Zones
Model:
MXZ-SM48NAMHZ
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- H2i Technology
- Low and negative ambient temperatures don't bother the MXZ-SM48NAMHZ. It is rated for 100% heating capacity at 5 degrees F and continues to provide heating in outdoor conditions as low as -13 degrees F.
- Precision Temperature Control Technology
- This outdoor condenser is equipped with inverter technology and an electronic linear expansion valve. By adjusting compressor speed and refrigerant flow, these components provide precise temperature control and incredible efficiency.
- Integrated Base Pan Heater
- MXZ-SM outdoor condensers have a Factory-installed base pan heater in the drain pan. This prevents condensate from freezing and damaging the unit in frigid climates.
- Mix and Match
- The MXZ-SM48NAMHZ is compatible with more than two dozen different indoor units. It even works with the advanced MSZ-FS indoor units. This makes it easy to design a system that suits your home, no matter how it is arranged.
- Product Compatible With
- Mitsubishi MSZ-GL Wall Mounted Mini Split Indoor Units
- Mitsubishi MSZ-FH Wall Mounted Hyper-Heating Mini Split Indoor Units
- Mitsubishi MSZ-FS Wall Mounted Hyper-Heating Mini Split Indoor Units
- Mitsubishi MFZ-KJ Floor Standing Mini Split Indoor Units
- Mitsubishi SEZ-KD Concealed Duct Mini Split Indoor Units
- Mitsubishi SLZ-KF Ceiling Cassette Mini Split Indoor Units
- Mitsubishi PLA-A Ceiling Cassette Mini Split Indoor Units
- Mitsubishi PEAD-A Concealed Duct Mini Split Indoor Units
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Wire - This durable, insulated wire provides power to your indoor units from your outdoor condenser.
- Outdoor Condenser Plastic Pad (Optional) - This pad provides an even surface, free of debris, on which to place your outdoor condenser.
- Wall Bracket (Optional) - A simple and sturdy way to mount your outdoor condenser off of the ground.
For over 50 years, Mitsubishi has remained at the forefront of the mini split industry thanks to their dedication to providing efficient, user-friendly comfort solutions. The MXZ-SM48NAMHZ is an H2i hyper-heating outdoor condenser for multi-zone mini split applications in freezing climates. It supports up to eight indoor units, allowing you to create a custom zoned heating and cooling system based entirely around the specific needs of your home. With a broad range of compatible indoor units, efficiency-boosting inverter technology, and heating capabilities that withstand some of the coldest conditions, the MXZ-SM48NAMHZ is a smart addition for nearly any home.
Product Note
This product requires two compatible Mitsubishi mini split indoor units and the following accessories for installation:
Specifications
MXZ-SM48NAMHZ
Overview
Product Category
Mini Split System Components
General Information
Type
Outdoor Condenser
Product Line
M-Series H2i
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
8
Multi-Zone Compatible
Yes
Refrigerant Type
R-410A
Installation Location
Outdoor
Branch Box Required
Branch Box Required
By making a single connection to the outdoor condenser, a branch box can supply the right amount of refrigerant to multiple indoor units. Learn More
Yes
Base Pan Heater Included
Yes
Outdoor Unit Size
48000 BTU
Performance
Cooling BTU
48000
Cooling Capacity
48000 BTU
Heating Capacity
54000 BTU
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
54 dB
Low Ambient Heating
Yes
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
-13 F
Minimum Outdoor Temperature for Cooling
23 F
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
42 Amps
Recommended Breaker Size
45 Amps
Dimensions
Maximum Line Length
492 Feet
Gas Connection Size
5/8 Inch
Liquid Connection Size
3/8 Inch
Product Height
52 11/16 Inches
Product Width
41 17/48 Inches
Product Depth
13 Inches
Product Weight
278 Pounds
Shipping Weight
302 Pounds
Certifications
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
7 Years
