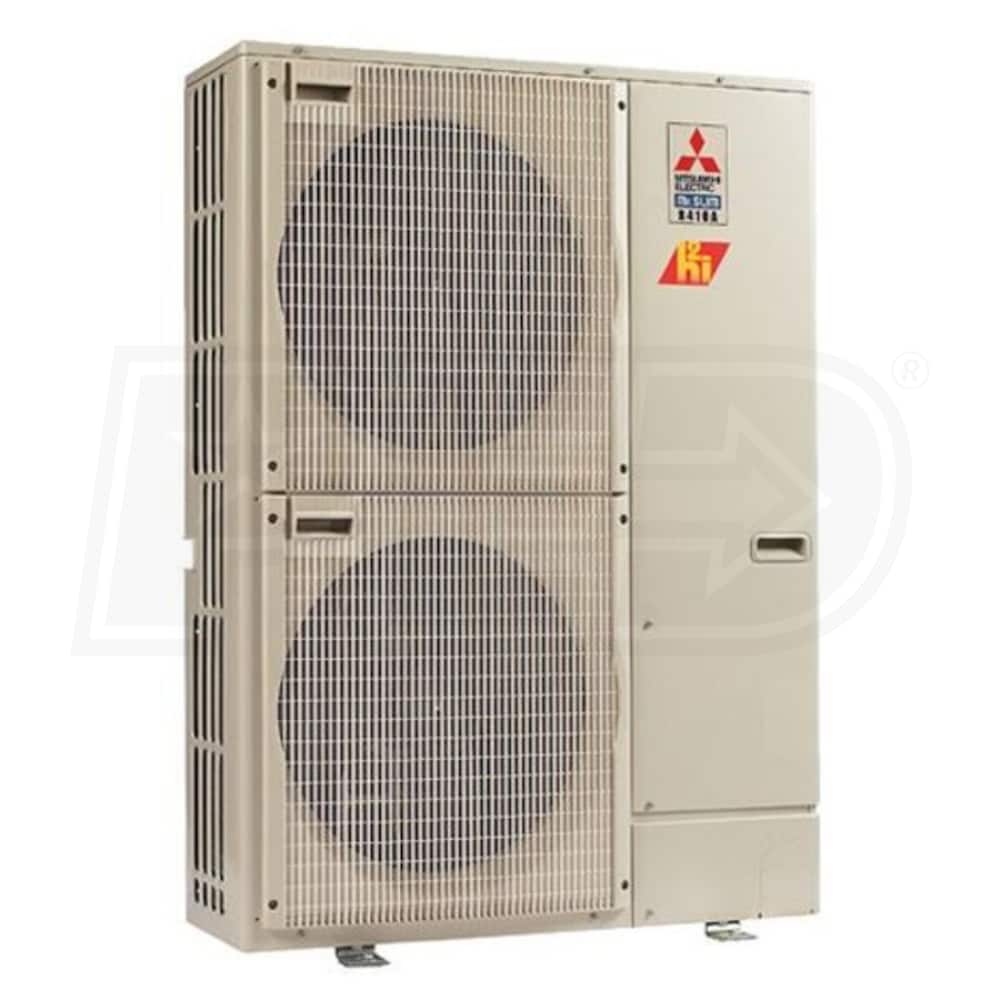

Mitsubishi P-Series - Hyper-Heating - 36,000 BTU - Mini Split Outdoor Condenser - Heat Pump

Model:

PUZ-HA36NHA5

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Mitsubishi P-Series - Hyper-Heating - 36,000 BTU - Mini Split Outdoor Condenser - Heat Pump
Mitsubishi P-Series - Hyper-Heating - 36,000 BTU - Mini Split Outdoor Condenser - Heat Pump
Model: PUZ-HA36NHA5
Product Discontinued
Accessories
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Specifications

    PUZ-HA36NHA5
    specs product image PID-68729
    General Information
    Type
    Outdoor Condenser
    Product Line
    P-Series H2i
    Operating Mode Learn More
    Operating Mode
    Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
    Heating and Cooling
    Refrigerant Type
    R-410A
    Installation Location
    Outdoor
    Compressor Stages Learn More
    Compressor Stages
    Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
    Variable Speed
    Performance
    Cooling BTU
    36000
    Cooling Capacity
    36000 BTU
    Heating Capacity
    40000 BTU
    SEER Learn More
    SEER
    SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
    17.8
    EER Learn More
    EER
    EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
    12.5
    Cooling Power Input
    2640 Watts
    Heating Power Input
    3040 Watts
    Maximum Sound Level Learn More
    Maximum Sound Level
    Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
    53 dB
    Electrical Data
    Voltage
    208/230 Volts
    Phase
    1
    Frequency
    60 Hz
    Minimum Circuit Ampacity
    28 Amps
    Recommended Breaker Size
    40 Amps
    Dimensions
    Suction Connection Size
    5/8 Inch
    Liquid Connection Size
    3/8 Inch
    Product Height
    53 1/8 Inches
    Product Width
    37 3/8 Inches
    Product Depth
    14 3/16 Inches
    Product Weight
    265 Pounds
    Shipping Weight
    289 Pounds
    Certifications
    ETL Listed
    Yes
    AHRI Certified
    Yes
    Warranty Information
    Parts Warranty Learn More
    Parts Warranty
    A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
    5 Years
    Compressor Warranty
    7 Years
