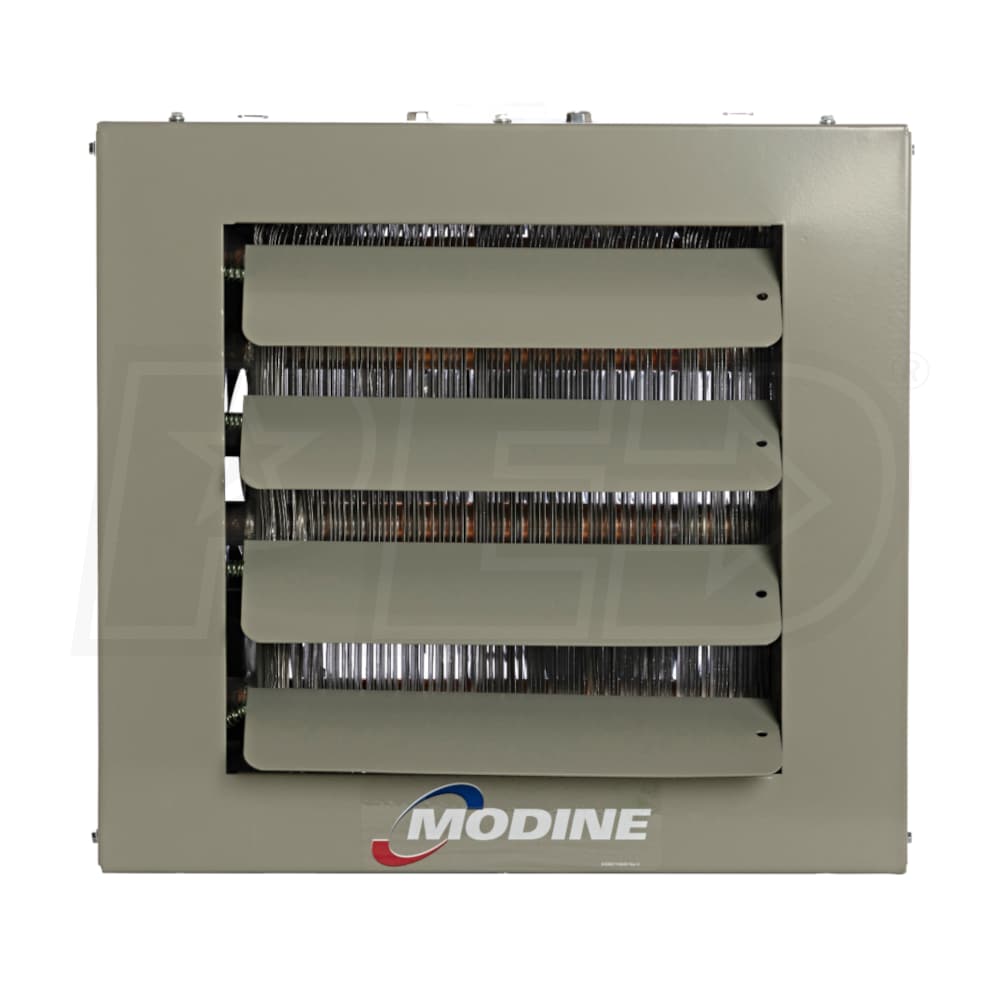

Modine HSB47S01
Modine HSB47S01
Hover to zoom
1 Of 5

Modine HSB - 47,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger - Top/Bottom Connections

Model:

HSB47S01

Write A Review
$871.00
Was $917.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 4th
Shipping to60601
synchrony card logo
$146 / Month
Suggested monthly payments with 6 month financing.
Modine HSB - 47,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger - Top/Bottom Connections
Modine HSB - 47,000 BTU - Hot Water/Steam Unit Heater - Horizontal - Copper Heat Exchanger - Top/Bottom Connections
Model: HSB47S01
$871.00
Was $917.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Modine's HSB47 is a high grade hot water/steam unit heater that can be fitted into a new or already existing hydronic system with ease. The HSB47 can emit 47,000 BTU/hr of heating power with a powerful fan behind it for air propulsion. High grade steel is used for the casing to ensure durability and longevity. Designed for horizontal use, the unit heater is excellent for heating long corridors or blanketing walls with heat. The HSB47 has supply and return connections on the top and bottom of the unit, allowing it to be installed facing any direction.
  • Top and Bottom Piping Connections
  • The HSB47 has top and bottom connections for supply and return piping. The vertical connections allow the unit heater to be faced any direction during installation.
  • Two Piece Casing
  • A two piece casing is used with the HSB47, allowing for incredibly easy access to the coil in case maintenance is required.
  • Tapped Suspension Holes
  • The HSB47 comes with pre-drilled tapped holes for suspension by threaded rod. This reduces installation time for your contractor, saving you money on installation.
  • Thermal Shock Resistant
  • The serpentine copper tube coil is very resistant to thermal shock even at high steam temperatures. This prevents undesired warping of the coil itself, as well as decreasing necessary maintenance.
  • Smart Coil Layout
  • The layout of the coil does not include coil headers. This eliminates potential leaks and maintenance without increasing the overall size of the unit.
  • Baked-On Polyester Paint
  • The HSB47 features a neutral colored baked-on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
  • Modine Installation
  • Installation by a professional installer is required by the manufacturer.
  • Product Note
    This product is available in multiple power configurations, including:

    • 230V/1Ph/60Hz
    • 208V/3Ph/60Hz
    • 230V/3Ph/60Hz
    • 460V/3Ph/60Hz
    • 575V/3Ph/60Hz

    For ordering information, call our sales department at (866) 554-HEAT (4328).

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

HSB47S01
specs product image PID-48475
Overview
Product Category
Unit Heater
UPC
046629482001
General Information
Product Line
Hot Dawg HSB
Product Category
Unit Heater
Medium Learn More
Medium
Medium refers to the substance that carries heat through the heating system. Systems are either designed to use either Hot Water or Steam as a medium, and components are usually specific to one or the other.
Steam/Hot Water
Heat Exchanger Material
Copper
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Hydronic
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Performance
Maximum Input Capacity Learn More
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
47000 BTU
Air Throw
28 Feet
Maximum Air Flow
730 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
1 1/4 Inches
Return Connection
1 1/4 Inches
Product Height
16 3/8 Inches
Product Width
17 1/2 Inches
Product Depth
14 3/4 Inches
Shipping Weight
36 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
