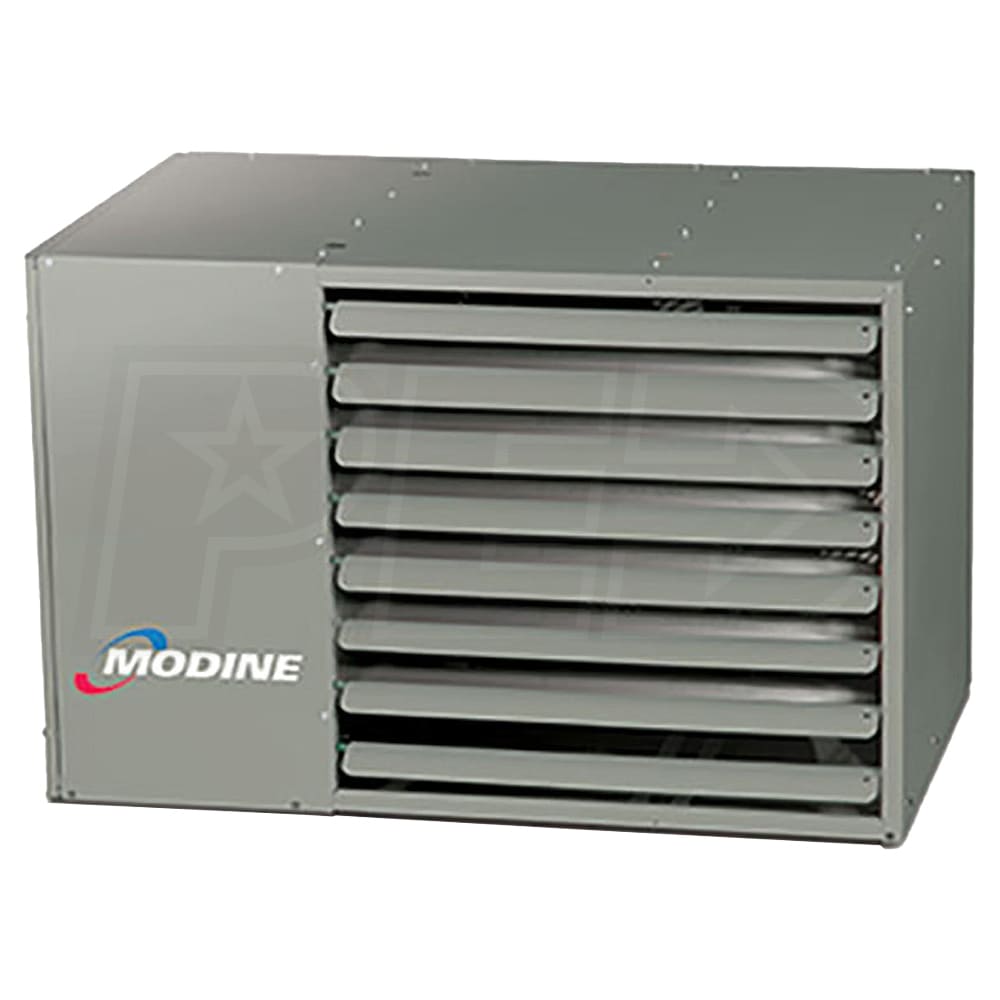

Modine PTX - 250,000 BTU - Unit Heater - LP - 82-83% Thermal Efficiency - Separated Combustion - Stainless Steel Heat Exchanger
Model:
PTX250SS0121
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Tubular Heat Exchanger Design
- The unique tubular heat exchanger design of the PTX provides efficient heat transfer from combusted fuel to surrounding air in a wide variety of conditions. This translates to lower heating costs and faster warm up time.
- Stainless Steel Heat Exchanger
- The stainless steel heat exchanger has incredible corrosion resistance, high heat transfer and is protected by a full 10 year warranty by Modine.
- Electric Knockouts
- Electric wiring knockouts and field wiring connections on the PTX keep installation costs low and save time during both installation and maintenance for your contractor by simplifying all required electrical work.
- Permanently Lubricated Motor
- The motor on the PTX has a permanent, long lasting lubricant straight from the factory. This means that the motor never has to be oiled, reducing maintenance costs, general wear and tear, and operational noise.
- Separated Combustion Venting System
- The separated combustion venting system quickly and efficiently brings flue exhaust from the unit heater to the outdoors while providing the unit heater with outdoor air for combustion, keeping installation costs low while preserving indoor air quality.
- Baked Polyester Paint
- The PTX features a neutral colored baked on polyester paint, providing excellent corrosion resistance and durability while blending in with a wide variety of environments.
- Modine Installation
- Installation by a professional installer is required by the manufacturer.
- 208V/1Ph/60Hz
- 230V/1Ph/60Hz
- 208V/3Ph/60Hz
- 230V/3Ph/60Hz
- 460V/3Ph/60Hz
- 575V/3Ph/60Hz
The PTX Gas Fired Unit Heaters by Modine are tailored for environments that have challenging atmospheric conditions, such as high levels of humidity, negative pressure, or chemicals. These heaters use combustion air from outdoors or a separate room, allowing for clean and uncontaminated indoor air. Additionally, the units can be installed in power-vented systems if needed.
Product Note
These alternate power configurations are available for this item:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PTX250SS0121
General Information
Product Line
PTX
Product Category
Unit Heater
Heat Exchanger Material
Stainless Steel
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Liquid Propane
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Gas Conversion Kit
Available
Performance
Heating Capacity
207500 BTU
Maximum Input Capacity
Maximum Input Capacity
The Maximum Input Capacity describes how quickly the appliance will use fuel when delivering it's maximum capacity. The units may change depending on the fuel being used.
250000 BTU
Thermal Efficiency
82-83 %
Air Throw
62 Feet
Maximum Air Flow
3995 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Flue Connection Size
6 Inches
Gas Piping Diameter
3/4 Inch
Product Height
31 5/16 Inches
Product Width
42 25/48 Inches
Product Depth
22 1/24 Inches
Product Weight
265 Pounds
Shipping Weight
265 Pounds
Certifications
Country of Origin
United States
CSA Listed
Yes
ETL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Heat Exchanger Warranty
10 Years
