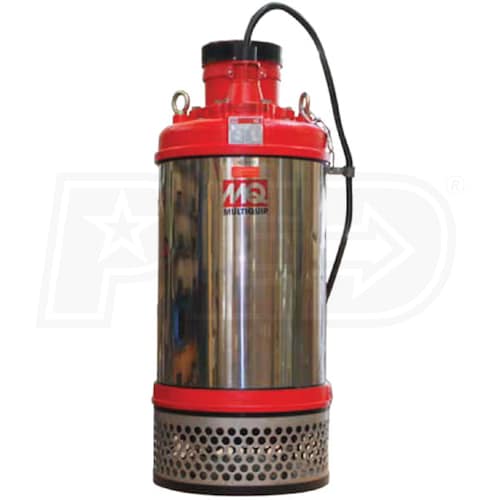

Multiquip ST61230 - 674 GPM (6") Submersible Utility Pump (230V - 3-Phase)

Model:

ST61230

Write A Review
$5,349.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days

Multiquip ST61230 - 674 GPM (6
Multiquip ST61230 - 674 GPM (6") Submersible Utility Pump (230V - 3-Phase)
Model: ST61230
$5,349.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Utility

GPM

674 Gallons

  • Multiquip 6" Discharge Industrial Submersible Pump
  • Ideal for supporting tough utility and municipal jobs
  • 15-HP 230V 3-Phase Motor
  • Thermal/over current motor protection for added safety
  • Stainless Steel Outer Casing
  • Designed to resist corrosion and keep pump running cool
  • Double Mechanical Pump Seals
  • Oil-filled design provides lubrication when running dry
  • High Chrome Impeller w/ Easy Clean Out
  • Allows the pump to move up to 40440 GPH
  • Heat-Treated 410 Stainless Steel Shaft
  • Designed to extend the pump life
  • 304 Stainless Steel Suction Strainer
  • Allows the pump to pas solids up to .5"
  • 33' Power Cord w/ Strain-Relief
  • Plenty of cord for municipal applications
  • *Note* Requires (CB1274) Control Box (Sold Separately)
  • Provides On/Off, safe operations and safety shutdowns
  • Allows for float switch connections for automatic operation
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ST61230
specs product image PID-14449
General Information
Product Category
Water Pump
Motor
Voltage
230 Volt 3-Phase
Power Cord Length
33 Feet
Starting Amps
258
Pump
Gallons Per Minute
674 Gallons
Outlet Diameter
6 Inch
Housing Material
Stainless Steel
Impeller Material
Stainless Steel
Solids Handling Size
.5 inch
Total Head Lift
105 Feet
Submersible
Yes
Engine
Horsepower
15 HP
Overview
Product Category
Water Pump
Weight
301 Pounds
Consumer Warranty
1 Year
Product Width
14 Inches
Product Height
34 Inches
Accessories
Control Box
Sold Separately
Hose
Sold Separately
Transport Handle
Yes
