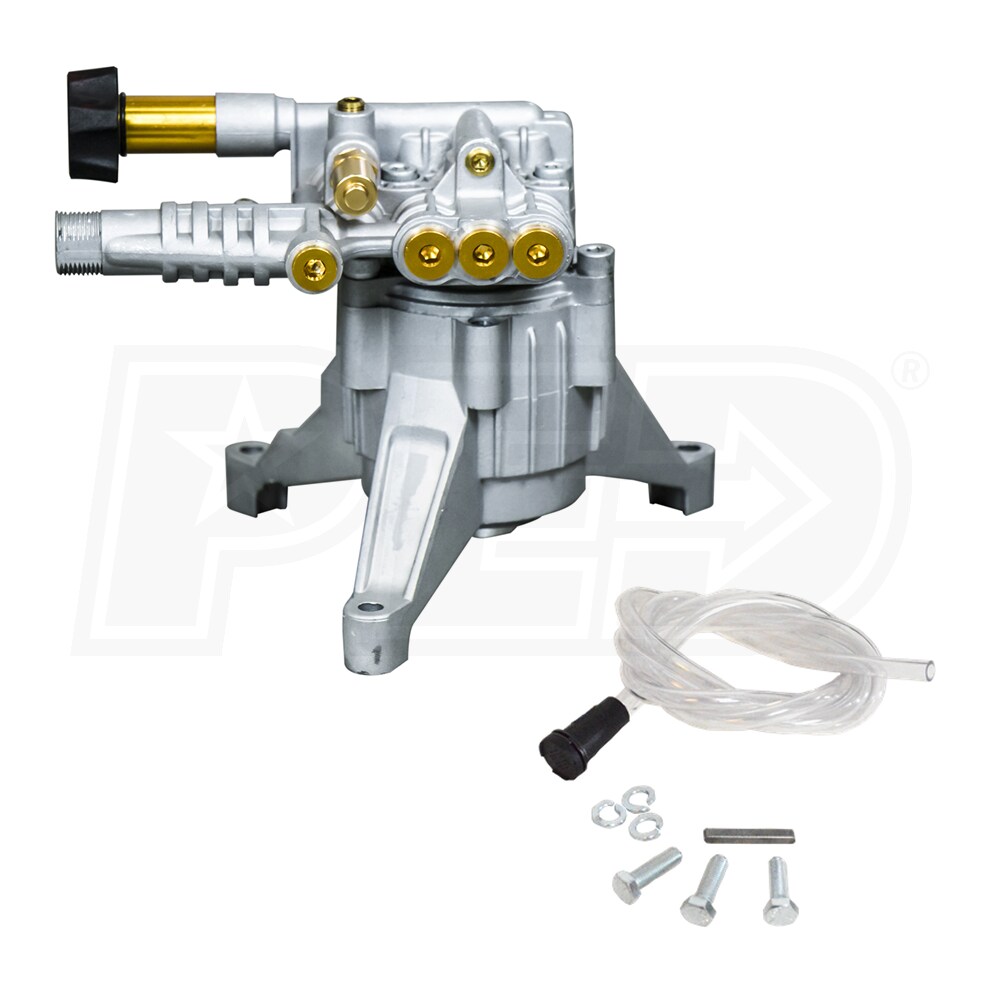

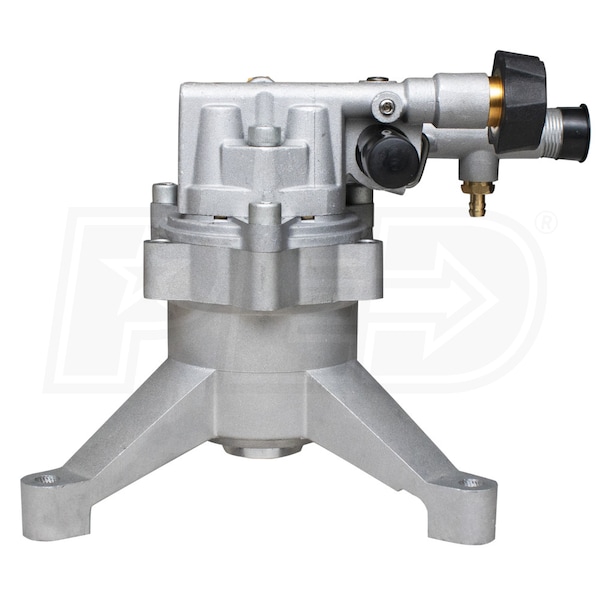

OEM Technologies Fully Plumbed 3100 PSI 2.4 GPM (7/8" Shaft) Vertical Axial Pressure Washer Pump Kit

Model:

90026

Write A Review
$119.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601
OEM Technologies Fully Plumbed 3100 PSI 2.4 GPM (7/8
OEM Technologies Fully Plumbed 3100 PSI 2.4 GPM (7/8" Shaft) Vertical Axial Pressure Washer Pump Kit
Model: 90026
$119.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Gas

Inflow

Garden Hose (Female)

Outflow

22m Threaded (Male)

  • Direct Drive Vertical Axial Replacement Pump
  • Fits many brands & models up to 3100 PSI at 2.4 GPM
  • Save money by replacing the pump instead of buying a new power washer
  • 7/8" Shaft & SAE Gas Engine Flange
  • SAE standard bolt pattern fits most gas-powered pressure washers
  • Designed for gas-powered pressure washers with vertical engines

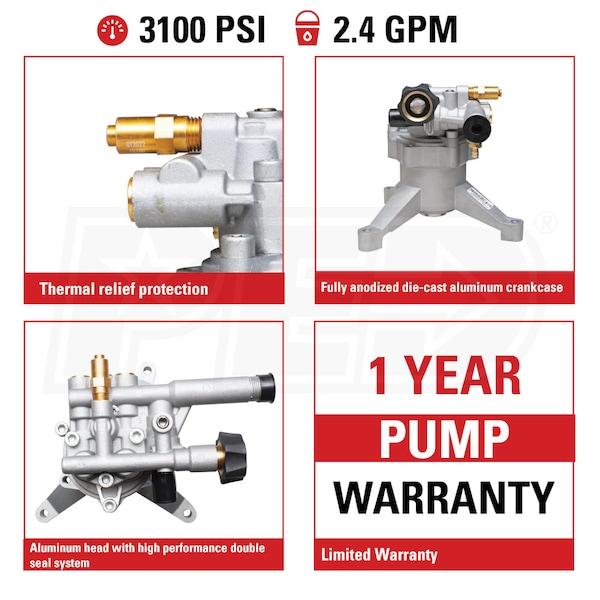

  • Thermal Relief Protection (TRV)
  • Protects the pump from overheating while in bypass mode
  • Releases small amounts of hot water and intakes cooler water to extend pump life
  • Maintenance-Free Crankcase
  • Prefilled with oil and sealed for simple installation, no oil changes
  • Fully anodized die-cast aluminum for protection against corrosion
  • Aluminum Pump Head w/ Silver Aluminum Body
  • Sturdy and long-lasting; resists corrosion
  • Improved seal life prevents water leaks for higher efficiency
  • Stainless-Steel Pistons & Integrated Unloader
  • Better wear and friction resistance extends seal life
  • Integrated unloader with easy start system makes start up a breeze
  • Threaded M22 Pump Outlet & 3/4" Garden Hose Inlet
  • Check your pressure washer's inlet & outlet orientation to ensure compatibility

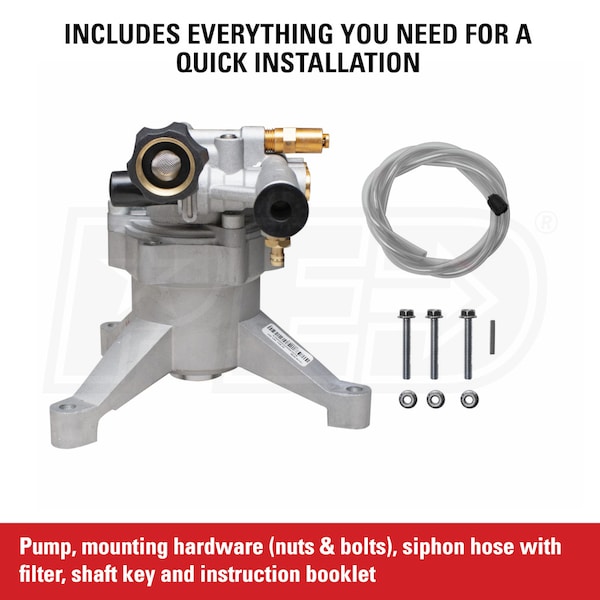

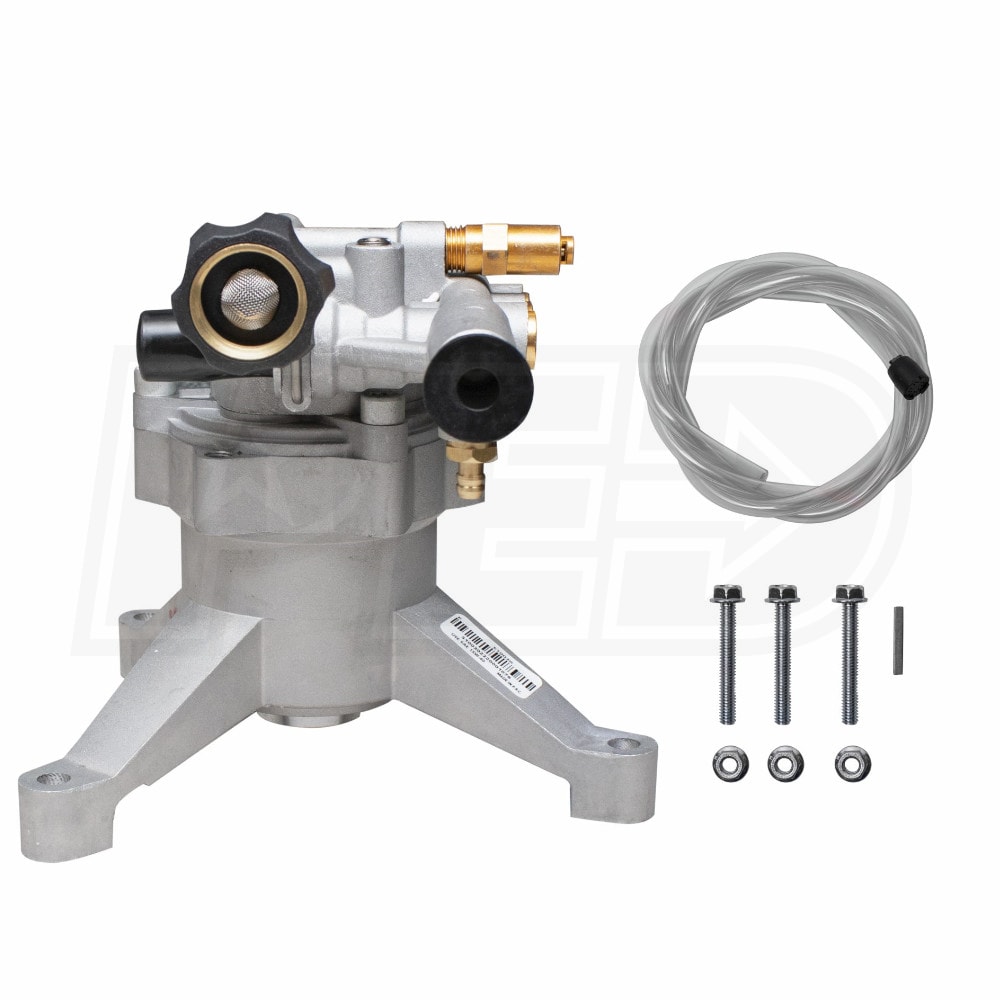

  • Complete Kit for Easy Installation
  • Includes detergent siphon tube with filter
  • New mounting bolts, 3/16" shaft key for tight connection & instruction manual
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

90026
specs product image PID-93956
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
6 Pounds
Consumer Warranty
1 Year
Product Length
9 Inches
Product Width
9 Inches
Product Height
7.5 Inches
Power Type
Gas
UPC
879399001468
Accessories
Pump Brand
OEM
Pump Type
Axial Cam
Shaft Size
7/8
Pump Design
Vertical
Adjustable Pressure
No
Accessory Grade
Consumer
Accessory Style
Gas
Inflow
Garden Hose (Female)
Outflow
22m Threaded (Male)
Maximum GPM Learn More
Maximum GPM
Gallon per Minute
2.4
Rated PSI
3100 PSI
Chemical Injections
Siphon Tube
