Model: DXCM024-0374
$153.99
Factory-Direct
$79.00
Factory-Direct
Model: K3015
$149.95
Factory-Direct
Model: AIRKEGPLUS
$182.00
In-Stock
Features
Grade
Contractor
Style
DC Compressors
CFM
8
Tank Size
0
- 2.2-HP 12-Volt Air Compressor
- Dual-ring, oil control pistons significantly reduce oil bypass into air supply
- High-flow Swedish steel valves increase durability & performance
- Powerful & Compact
- Delivers 9 CFM at 50 PSI, 8 CFM at 100 PSI; 200 PSI maximum (150 PSI maximum restart pressure)
- 100% duty cycle when used at 100 PSI at 70°F; 2160 watts at maximum load
- Oil Reservoir Chamber With Sight Glass
- Provides relief for crankcase oil transfer and expansion
- Simplifies maintenance with a quick visual check of crankcase lubrication
- Motor Cooling Fan
- Airflow through the motor reduces extended-use heat build-up
- Control wire connection point for optional pressure switch and/or dash switch
- Low Voltage Cut-off
- Turns compressor off if voltage drops to protect motor
- Air Filter
- High-flow, long-life filter with serviceable element
- Deep Finned Heads
- Dramatically reduces compressor operating temperature
- Heavy-Duty Power Cables
- 10' of #4 AWG cables; unit pulls
** Update from XD to XDM - The M in the model is in reference to the change of including a solid-state motor control module, which replaced the previous method of motor control using a mechanical DC contactor (solenoid) along with a discrete Low Voltage Cutoff circuit board.**
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
XDM3000-12
General Information
Product Category
Air Compressor - Portable
Engine
HP
2.2
Motor
Voltage
12 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
180 @ Max
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
8
CFM Rated @
100 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
62 Pounds
Consumer Warranty
1 Year
Product Length
21 Inches
Product Width
7 Inches
Product Height
11 Inches
Additional Model Numbers
XD3000-12, XDM3000-12
Reviews
(5)
Oasis Manufacturing XDM3000-12 Reviews & Ratings
Customer Photos and Videos
Awesome Compressor
By Ricky D
Florida
Purchased 04/20/2023 |
Review Posted 05/16/2023
I've used these before and they are awesome! That's why when I needed another one I went back to get the same one.
Ricky D Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
12 Volt Continuous Air
By John B.
Syracuse, New York
Purchased 06/23/2017 |
Review Posted 07/17/2017
The compressor is very high quality. It was installed in a small fire rescue truck to operate air horns. The unit is set up to run only air horns. There is no tank on the truck and so far there has been no problems.
Customer is very happy with the outcome.
Customer is very happy with the outcome.
John B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
3/5
Excellent Product
By RD H.
Laredo, Texas
Purchased 03/24/2017 |
Review Posted 04/24/2017
I should have bought this years back - It is perfect for my emergency needs while working with my horse or cattle trailers, cross country or ranch work.
I have it rigged so I have the truck battery recharge the accessory battery due to the length away from primary truck battery (in my large locked tool box).
I have it rigged so I have the truck battery recharge the accessory battery due to the length away from primary truck battery (in my large locked tool box).
RD H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Durable, Reliable, High Quality, I'd Buy It Again
Cons:
get plenty hot
Well Built
By Don F.
Franklin, Indiana
Purchased 06/12/2016 |
Review Posted 07/05/2016
I installed this compressor on a Kenworth quad axle dump truck with air ride and air brakes. It has 4 air tanks so it needs a lot of air to keep going so when the air truck air compressor on my truck can't keep up I just flip a switch and away I go with this application.
Those cheap Chinese made compressors won't cut it. Only negative is the directions on installation is very vague so you have to call them to ask some simple questions that they could have put in print.
Those cheap Chinese made compressors won't cut it. Only negative is the directions on installation is very vague so you have to call them to ask some simple questions that they could have put in print.
Don F. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
It's always there when I need it
By Tom
Silverado, Georgia
Review Posted 11/07/2009
I have use my Oasis compressor for a variety of tasks: from airing up tires, to building a bridge using an impact wrench, to spraying. It's always there when I need it.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Inflator
Portable inflators are extremely convenient to have around the house or on the ...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

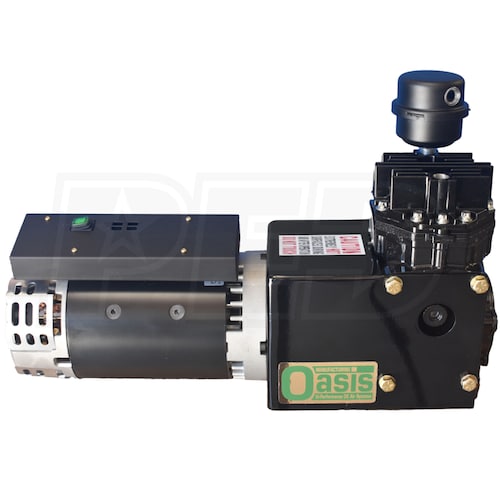

Oasis 12-Volt Extended Duty Tankless Air Compressor
