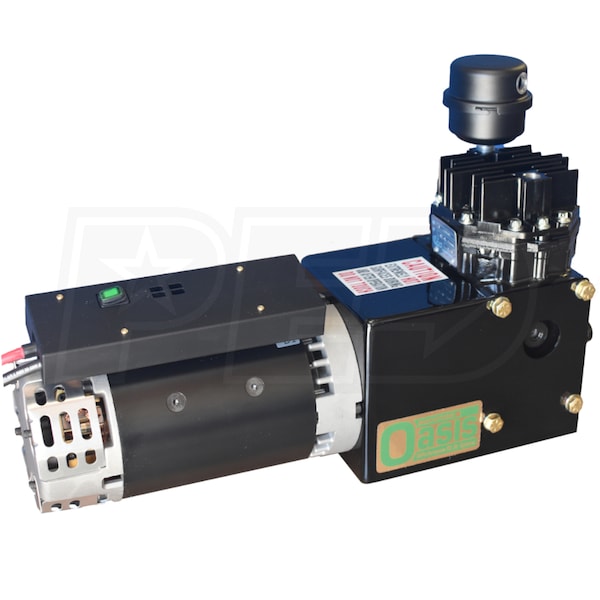

Oasis 24-Volt Extended Duty Tankless Air Compressor

Model:

XDM3000-24

Write A Review
$2,349.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 3-4 Weeks

Oasis 24-Volt Extended Duty Tankless Air Compressor
Oasis 24-Volt Extended Duty Tankless Air Compressor
Model: XDM3000-24
$2,349.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Style

DC Compressors

CFM

8

Tank Size

0

    ** Update from XD to XDM - The M in the model is in reference to the change of including a solid-state motor control module, which replaced the previous method of motor control using a mechanical DC contactor (solenoid) along with a discrete Low Voltage Cutoff circuit board.**
  • Dual-Ring, Oil Control Pistons
  • Significantly reduces oil bypass into air supply
  • Oil Reservoir Chamber
  • Provides relief for crankcase oil transfer and expansion
  • Oil Sight Glass
  • Offers a quick visual check of crankcase lubrication
  • Motor Cooling Fan
  • Allows airflow through the motor & reduces heat build-up
  • Control Wire
  • Connection point for optional pressure switch and/or dash switch
  • Low Voltage Cut-off
  • Turns compressor off if voltage drops to protect motor
  • High Flow Design
  • Swedish steel valves
  • Air Filter
  • High-flow, long-life filter with serviceable element
  • Deep Finned Heads
  • Dramatically reduces compressor operating temperature
  • Heavy-Duty Power Cables
  • 10' of #4 AWG cables
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

XDM3000-24
specs product image PID-3945
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
24 Volt DC
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
90 @ Max
Engine
HP
2.2
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
8
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/8 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
62 Pounds
Consumer Warranty
1 Year
Product Length
21 Inches
Product Width
7 Inches
Product Height
11 Inches
Additional Model Numbers

XD3000-24, XDM3000-24
