Features
Grade
Contractor
Style
DC Compressors
CFM
8
Tank Size
0
- 24-Volt Continuous Duty Tankless Air Compressor
- Continuous 100% duty cycle at 200 PSI
- Dual-Ring, Oil Control Pistons
- Significantly reduces oil bypass into air supply
- Oil Reservoir Chamber
- Provides relief for crankcase oil transfer and expansion
- Oil Sight Glass
- Offers a quick visual check of crankcase lubrication
- Exclusive Forced Air, Motor & Compressor Cooling System
- Deep finned heads and compressor body
- Cooled by a 100 CFM fan built into housing shroud
- An internal fan also cools the modified 2.2-HP electric motor
- Control Wire
- Connection point for optional pressure switch and/or dash switch
- Low Voltage Cut-off
- Turns compressor off if voltage drops to protect motor
- Air Filter
- High-flow, long-life filter with serviceable element
- Added Features
- Heavy-Duty 10' of #4 AWG power cables
- High-Flow swedish steel valves
** Update from XD to XDM - The M in the model is in reference to the change of including a solid-state motor control module, which replaced the previous method of motor control using a mechanical DC contactor (solenoid) along with a discrete Low Voltage Cutoff circuit board.**
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
XDM4000-24
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
24 Volt DC
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
90 @ Max
Engine
HP
2.2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
8
CFM Rated @
90 PSI
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
200 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
65 Pounds
Consumer Warranty
1 Year
Product Length
21 Inches
Product Width
7 Inches
Product Height
11 Inches
Additional Model Numbers
XD4000-24, XDM4000-24
Reviews
(5)
Oasis Manufacturing XDM4000-24 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Melissa, the Air Compressor Expert
How-To Articles
How To Pick The Perfect Contractor Air Compressor
From the ground up, construction relies on compressed air. From framing a home ...
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Portable Single-Stage Compressor
We've all heard that Rome wasn't built in a day, but then again the R...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

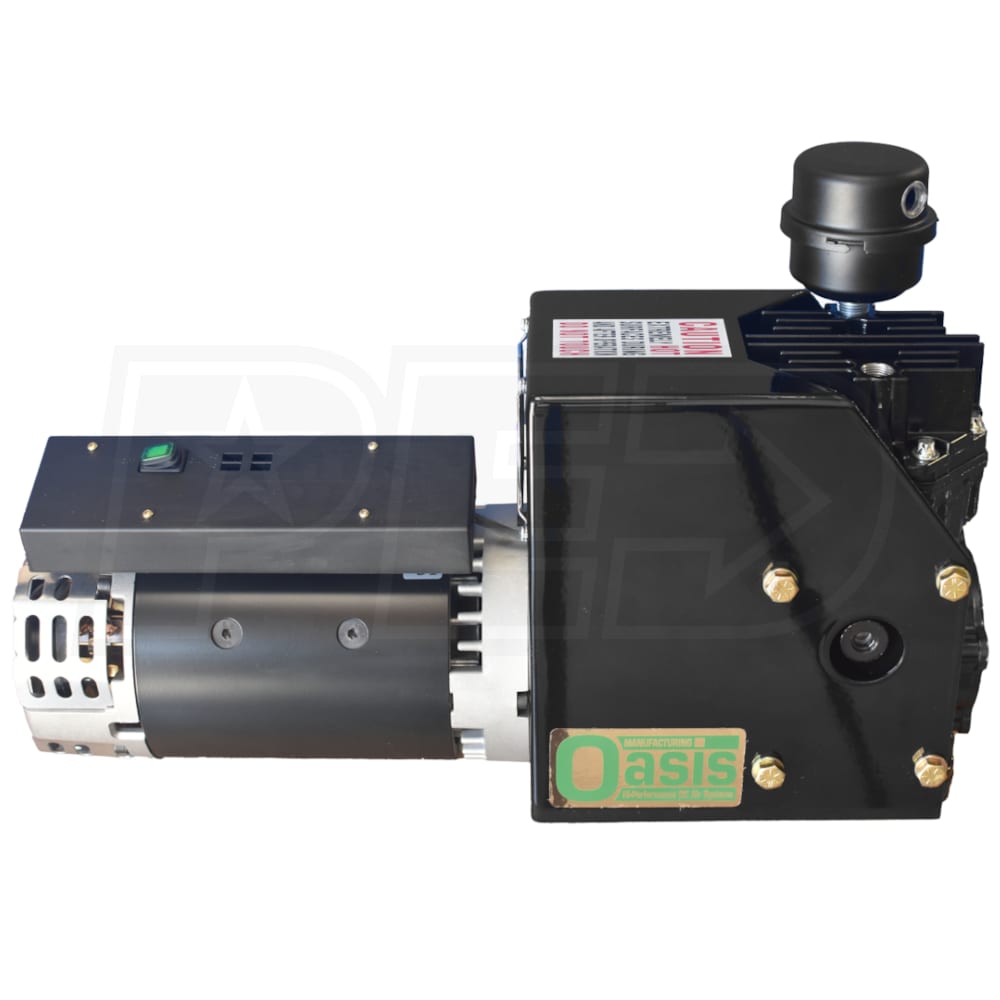

24-Volt Continuous Duty Tankless Air Compressor
