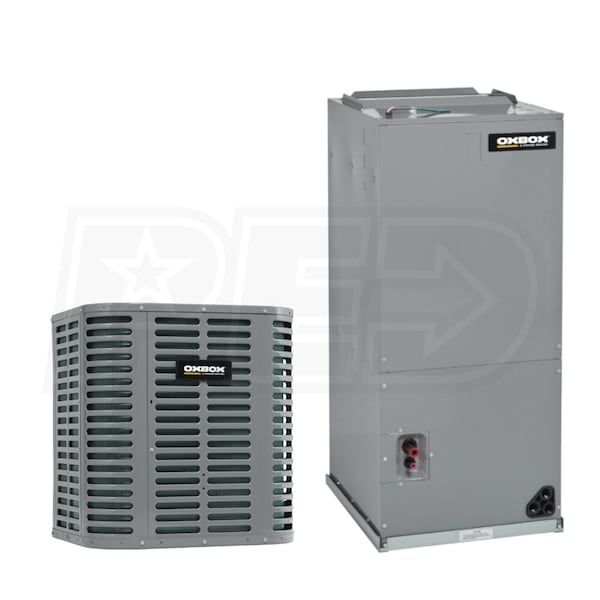

Oxbox - 2.5 Ton Cooling - 30k BTU/Hr Heating - Heat Pump + Air Handler Kit - 15.0 SEER - 9.0 HSPF
Model:
J4HP4030A1000AA J4AH4E36A1B00AA
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Affordable Quality
- Oxbox heat pumps offer powerful and dependable cooling and heating at an affordable price.
- Small Footprint
- With its compact size, the Oxbox heat pump is perfect for homes that have limited yard space.
- Durable
- Featuring painted, galvanized steel cabinets that resist rust, the Oxbox heat pump stands up to weather while the air handler retains peak efficiency.
- Quiet Operation
- With a maximum sound level of 76 dB, you'll barely notice your heat pump is running.
- All-aluminum Coil
- The Oxbox air handler includes an all-aluminum coil for advanced heat transfer and efficiency.
- ECM Motor
- With an air handler with an ECM blower motor, this Oxbox kit provides more efficient operation, saving you money otherwise spent on energy costs.
- Dual Drainage
- For increased installation flexibility, the Oxbox air handler features two drainage spouts.
- Low Voltage Control
- The Oxbox heat pump features 24V low-voltage control, providing added safety to installation and operation.
- Easy Access
- Oxbox air handlers feature removable front panel and blower and coil assemblies for simple maintenance and troubleshooting.
- Oxbox Warranty
- 1 Year: Complete Replacement (Applies if compressor, coil or heat exchanger fails in the first year.)
- 5 Years: Standard Parts Warranty
- 10 Years: Compressor Replacement
- (1) Oxbox J4HP4 - 2.5 Ton - Heat Pump - 14.0 Nominal SEER - Single-Stage - R-410A Refrigerant (J4HP4030A1000AA)

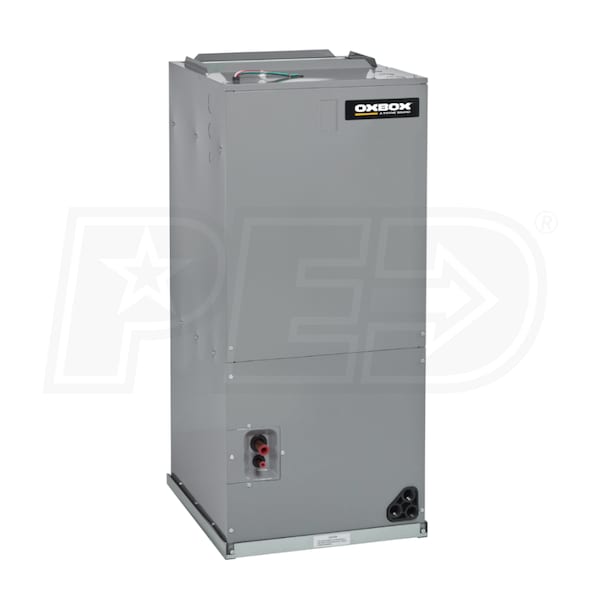

- (1) Oxbox J4AH4 - 3.0 Ton - Air Handler - Multi-Position - ECM Motor (J4AH4E36A1B00AA)
- In order to maintain its warranty, your Oxbox equipment must be installed by a contractor. You will need to provide proof of installation before using your warranty.
- NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions. As of December 9th, 2022, we will no longer be selling 14 SEER and 16 SEER unitary products to the DOE Southern Region to comply with updated SEER2 Federal Regulations.
The Oxbox central air system is the smart choice for staying cool in the summer months and staying warm in the cooler months. Oxbox, a Trane brand,, the economical and no-nonsense Oxbox central air system features the J4HP4 heat pump that provides both heating and cooling for your home. With painted, galvanized steel cabinets, the J4HP4 resists rust and inclement weather. Paired with a multi-positional air handler with flexible installation options, the system provides economical, sturdy and efficient performance, no matter the season.
Product Includes
Product Note
California residents see
Warning: This product can expose you to chemicals including Lead and lead compounds which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Oxbox J4HP4 - 2.5 Ton - Heat Pump - 14.0 Nominal SEER - Single-Stage - R-410A Refrigerant (J4HP4030A1000AA)
- (1) Oxbox J4AH4 - 3.0 Ton - Air Handler - Multi-Position - ECM Motor (J4AH4E36A1B00AA)
J4HP4030A1000AA J4AH4E36A1B00AA
Overview
Product Category
Heat Pump & Air Handler Package
Additional Model Numbers
J4HP4030A1000AA J4AH4E36A1B00A, J4HP4030A1000AA J4AH4E36A1B00AA
General Information
Type
Heat Pump and Air Handler Package
Product Category
Heat Pump & Air Handler Package
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling Capacity
30000 BTU
Heating Capacity
29000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.5
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
9.0
Maximum Air Flow
1491 CFM
Dimensions
Product Weight
282 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
202710852
J4HP4030A1000AA
General Information
Type
Condenser
Product Line
J4HP4
Product Category
Heat Pump
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Cooling Capacity
30000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
16.5 Amps
Recommended Breaker Size
25 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
24 15/16 Inches
Product Width
28 Inches
Product Depth
28 Inches
Product Weight
157 Pounds
Shipping Height
31 1/2 Inches
Shipping Width
29 1/24 Inches
Shipping Length
29 1/24 Inches
Shipping Weight
187 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
10 Years
Overview
Product Category
Heat Pump
J4AH4E36A1B00AA
General Information
Type
Air Handler
Product Line
J4AH4
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
ECM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Installation Location
Indoor
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
36000
Maximum Air Flow
1491 CFM
Minimum Air Flow
203 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
46 1/2 Inches
Product Width
19 5/8 Inches
Product Depth
21 5/8 Inches
Product Weight
125 Pounds
Shipping Height
47 19/24 Inches
Shipping Width
22 Inches
Shipping Length
25 17/24 Inches
Shipping Weight
141 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Overview
Product Category
Air Handler
