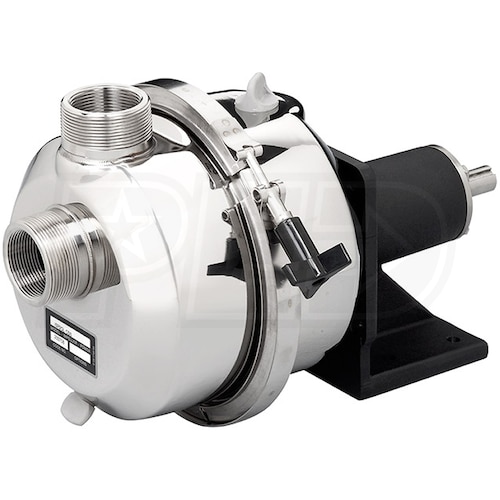

Pacer IPW Series - 180 GPM (1-1/2" - 2") Potable Water Pedestal Mounted Transfer Pump

Model:

IPW2WL CSS

Write A Review
$1,272.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Pacer IPW Series - 180 GPM (1-1/2
Pacer IPW Series - 180 GPM (1-1/2" - 2") Potable Water Pedestal Mounted Transfer Pump
Model: IPW2WL CSS
$1,272.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

Inlet Size

2 Inch

Style

Transfer

GPM

180 Gallons

  • Pacer IPW Series Potable Water Transfer Pump
  • Ideal for transferring & delivery of bulk potable (drinking) water
  • Certified to NSF/ANSI 61 & 372 Standards*
  • Cast Iron Pedestal w/ Stainless-Steel Shaft
  • Compatible w/ electric motors or gas engines
  • Required Power (3/4" Shaft)
  • 3-HP electric motors (3450 RPM)
  • 3-HP gas engines (3600 RPM)
  • 316 Stainless Steel Casing & FDA Grade Polypropylene Internals
  • Corrosion-resistant design for potable water applications
  • FDA-Grade EPDM Elastomers (O-Rings & Gasket)
  • Allows this pump to adhere to NSF/ANSI standards
  • Built-In Check Valve and Double Flush Volute
  • Creates a pump that is designed for self-priming
  • Dual-Thread 1-1/2" FNPT & 2" MNPT Ports
  • Makes this pump easy to use in multiple applications
  • Simple Maintenance
  • Stainless steel band clamp for easy disassembly and cleaning
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

IPW2WL CSS
specs product image PID-98019
General Information
Product Category
Water Pump
Base
Base Material
Cast Iron
Pump
Gallons Per Minute
180 Gallons
Inlet Diameter
2 Inch
Outlet Diameter
2 Inch
Self Priming
Yes
Pump Head Material
Stainless Steel
Pump Housing Drain
Yes
Quick Clean Out
Yes
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
20 Feet
Total Head Lift
75 Feet
Check Valve Included
Yes
Submersible
No
Engine
Required HP
3 HP
Overview
Product Category
Water Pump
Consumer Warranty
1 Year
Commercial Warranty
1 Year
