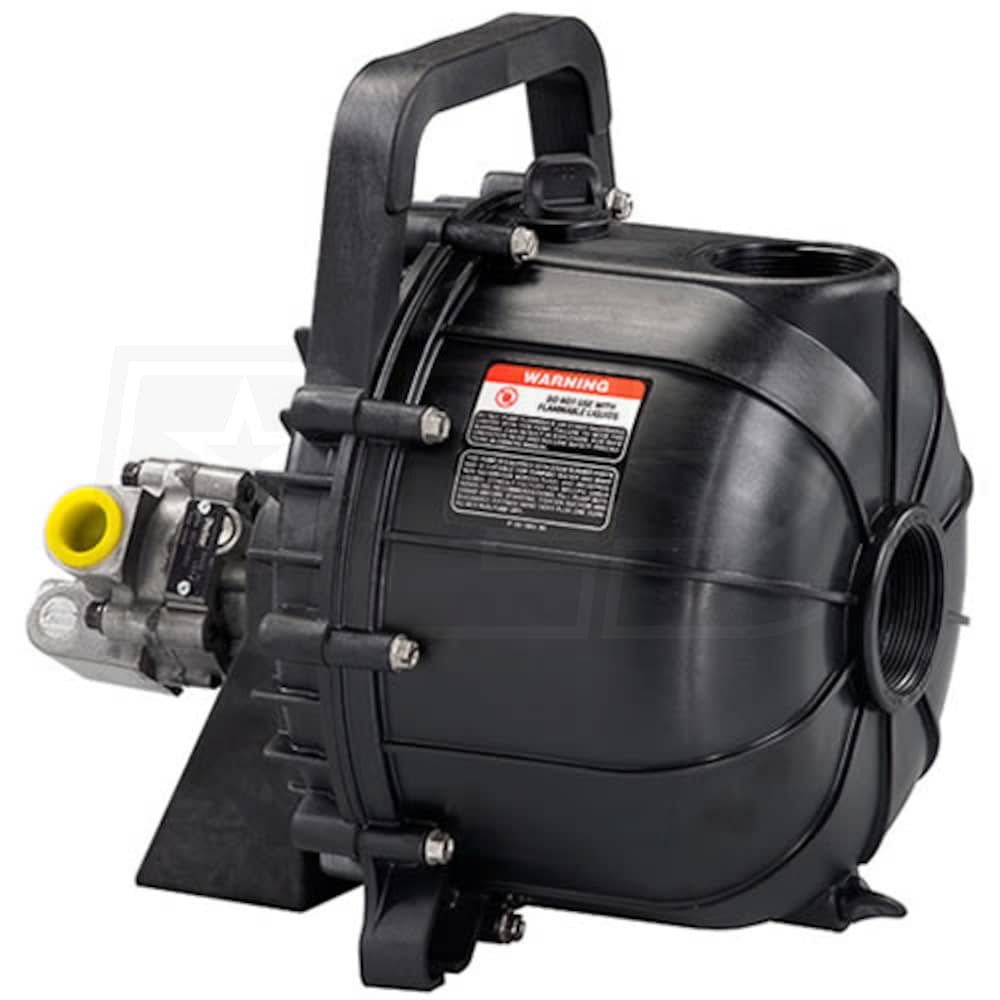

Pacer SE3LLHYC - 280 GPM (3") Hydraulic Drive Water Pump

Model:

SE3LL HYC

Write A Review
$629.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Pacer SE3LLHYC - 280 GPM (3
Pacer SE3LLHYC - 280 GPM (3") Hydraulic Drive Water Pump
Model: SE3LL HYC
$629.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

3 Inch

Style

Dewatering

GPM

280 Gallons



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • S-Series 3" Multi-Purpose Hydraulic Drive Pump
  • Designed for agricultural, transfer & dewatering applications
  • Requires 3-HP @ 3450 RPM
  • Hydraulic Fluid @ 9 GPM & 750 PSI fluid pressure required
  • 50 PSI Gauge reading @ 3450 RPM
  • Hydraulics- 9gpm, 1200psi at 3450rpm to achieve 280gpm water flow
  • Hydraulic pump fittings - 5/8 tube 7/8 - 14UNF-2B thread SAE10
  • Glass-Reinforced Polyester Housing, Volute & Impeller
  • For use w/ water, salt water, waste water, mild acids & bases
  • Standard EPDM Elastomers (O-Rings & Gasket)
  • Compatible with many agricultural chemicals
  • EPDM Fitted Stainless Steel Shaft Seal w/ Carbon-Ceramic Faces
  • Extends the useful life of the pump
  • Internal & External Stainless Steel Fasteners
  • High quality components that are built to last
  • Includes Pressure Gauge
  • Easily obtain the correct operating speed for optimal performance
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

SE3LL HYC
specs product image PID-6778
General Information
Product Category
Water Pump
Pump
Gallons Per Minute
280 Gallons
Inlet Diameter
3 Inch
Outlet Diameter
3 Inch
Self Priming
Yes
Pump Head Material
Glass-Reinforced Polyester
Pump Housing Drain
Yes
Quick Clean Out
No
Mechanical Seal Material
Ceramic Carbon
Impeller Material
Plastic
Handles Solids
No
Suction Head
25 Feet
Total Head Lift
80 Feet
Submersible
No
Engine
Continuous Operation
Yes
Horsepower
3 HP
Overview
Product Category
Water Pump
Weight
16 Pounds
Consumer Warranty
1 Year
Accessories
Strainer
Sold Separately
Float Switch
No
Hose Couplings
No
Hose
Sold Separately
Hose Bands
No
Lifting Hook
No
Transport Handle
Yes
Wheel Kit
No

Reviews

(1)
Pacer SE3LL HYC Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jim, the Water Pump Expert
We are a greenhouse outfit. We have a reservoir and are hooked up to a Water Utility. We fill the reservoir and have electrical capacity with the electrical pumps however in case of an electrical outage we would have a problem. We want to get a backup water pump to pull the water from the reservoir in case of an emergency. The line going into the main water supply line is PVC and is 6" and also runs through some sand media filters. Our normal working PSI is 30 to 45 PSI and if we wanted just to "maintain" during an electrical outage we would run about 100 to 150 gpm at the 30 to 45 PSI (we usually run around 300 gpm). Our reservoir depth is about 15 feet so the suction tube is above the bottom it is about 12 to 13 foot. I was wondering what your recommendation would be we have 60 hp to 80 hp tractors with PTO and hydraulics
Bob Suzuki
from California
January 13, 2014
