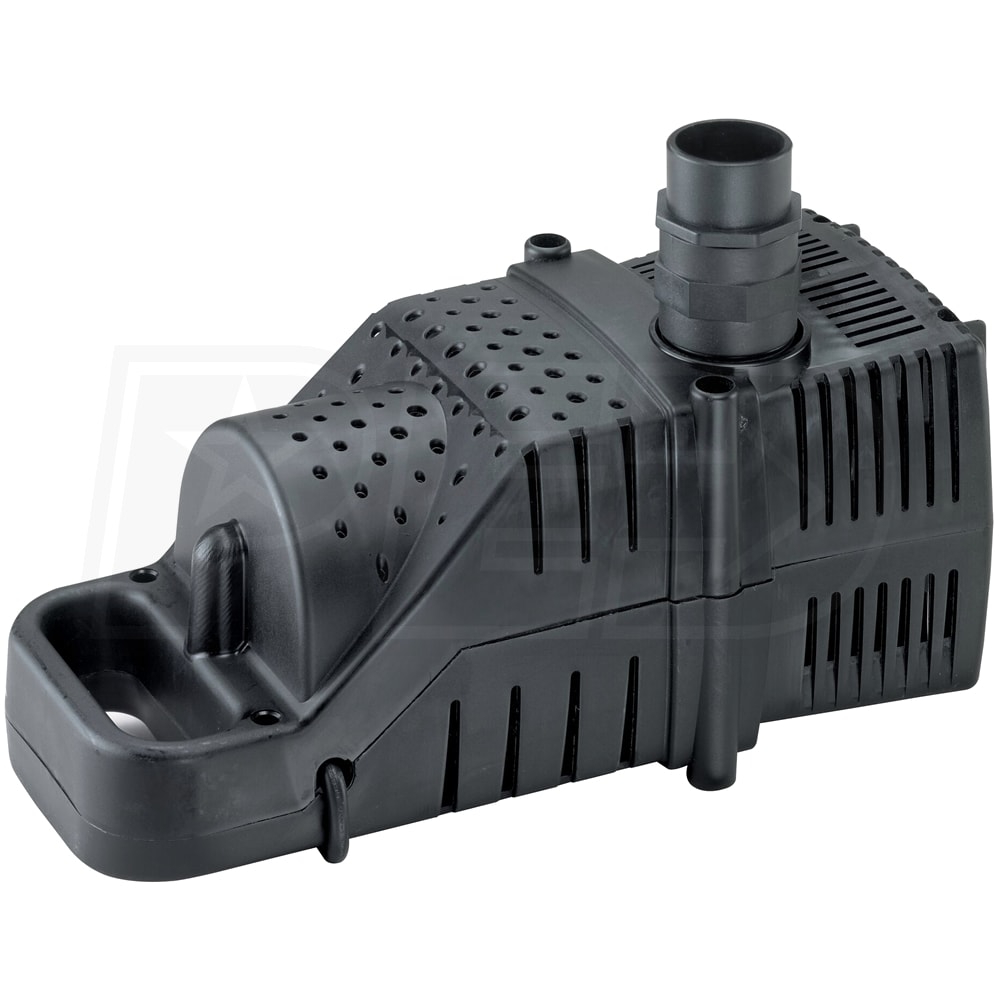

Pondmaster ProLine HY-DRIVE 1600 GPH Submersible Waterfall / Pond Pump

Model:

PLHD 1600

Write A Review
$251.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601

Pondmaster ProLine HY-DRIVE 1600 GPH Submersible Waterfall / Pond Pump
Pondmaster ProLine HY-DRIVE 1600 GPH Submersible Waterfall / Pond Pump
Model: PLHD 1600
$251.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1 Inch

Style

Pond

GPM

26.6 Gallons

    PROLINE BY PONDMASTER HY-DRIVE PUMPS are unique, high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an inline, external pumping source.
  • Pondmaster 1600 GPH Proline Hy-Drive Water Pump
  • 3-Year Limited Warranty
  • Makes it easy to transport and position pump
  • Made for pond skimmers in a larger ponds and waterfalls
  • Fish Safe Design
  • Oil-Free cooling means unit won't leak or contaminate water
  • Hy-Drive Magnetic / Direct Drive Induction Motor
  • High efficiency design, only draws 1-Amp (120 Watts)
  • Delivers greater performance compared to standard Hy-Drive pumps
  • 316 Stainless Steel Rotor
  • Provides greater corrosion and wear resistance for longer pump life
  • Heavy-Duty, Polypropylene Enclosure w/ Extra-Long Clog Resistant Filter Screen
  • Keeps dirt and debris from entering pump in submersible applications
  • Asynchronous Vortex Impeller
  • Provides whisper quiet, continuous duty operation
  • Submersible or In-Line Use & Vertical or Horizontal Positioning
  • Meets the needs of a wide variety of water feature applications
  • 1" Inlet & 1" Outlet
  • Includes threaded female couplings and fittings
  • 20-Foot, Grounded (3-Prong) Power Cord
  • Allows for easy set-up and operation
  • Built-In Carry Handle

Specifications

PLHD 1600
specs product image PID-76587
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1
Thermal Protection
No
Power Cord Length
20 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
26.6 Gallons
Inlet Diameter
1 Inch
Outlet Diameter
1 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
17 Feet
GPH @ 0 feet
1600
GPH @ 5 feet
1400
GPH @ 10 feet
1000
GPH @ 15 feet
375
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
No
Overview
Product Category
Water Pump
Made in USA
No
Consumer Warranty
3 Years
Product Length
8.25 Inches
Product Width
5 Inches
Product Height
6 Inches
UPC
025033026636
Additional Model Numbers

2663, PLHD 1600

Accessories
Hose Couplings
Yes
