Pondmaster PLHD 3200
Pondmaster PLHD 3200
Hover to zoom
1 of 1

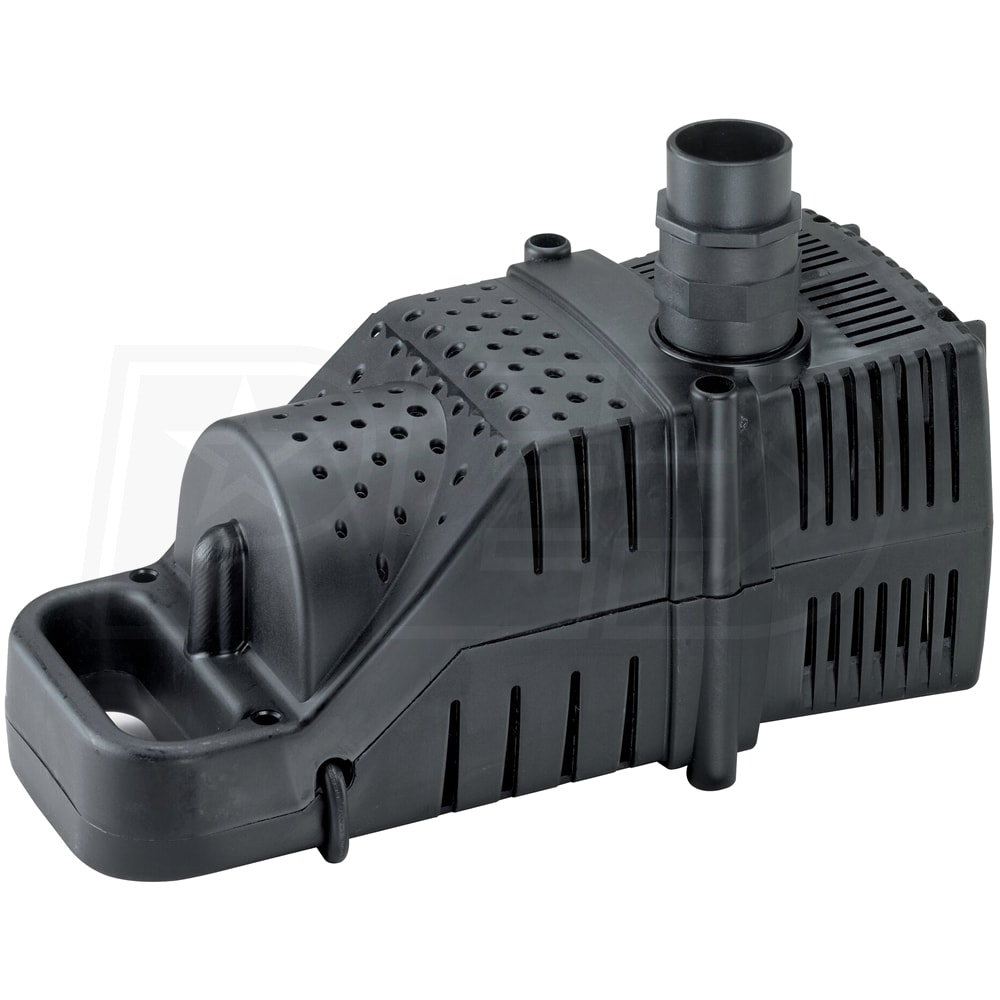

Pondmaster ProLine HY-DRIVE 3200 GPH Submersible Waterfall / Pond Pump

Model:

PLHD 3200

Write A Review
$302.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Jan 24th
Shipping to43085

Pondmaster ProLine HY-DRIVE 3200 GPH Submersible Waterfall / Pond Pump
Pondmaster ProLine HY-DRIVE 3200 GPH Submersible Waterfall / Pond Pump
Model: PLHD 3200
$302.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 2
$24.99
Only 3 In-Stock
$24.99
Only 3 In-Stock

Features

Inlet Size

1-1/2 Inch

Style

Pond

GPM

53.3 Gallons

    PROLINE BY PONDMASTER HY-DRIVE PUMPS are unique, high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an inline, external pumping source.
  • Pondmaster 3200 GPH Proline Hy-Drive Water Pump
  • 3-Year Limited Warranty
  • Makes it easy to transport and position pump
  • Made for pond skimmers in a larger ponds and waterfalls
  • Fish Safe Design
  • Oil-Free cooling means unit won't leak or contaminate water
  • Hy-Drive Magnetic / Direct Drive Induction Motor
  • High efficiency design, only draws 1.5-Amps (160 Watts)
  • Delivers greater performance compared to standard Hy-Drive pumps
  • 316 Stainless Steel Rotor
  • Provides greater corrosion and wear resistance for longer pump life
  • Heavy-Duty, Polypropylene Enclosure w/ Extra-Long Clog Resistant Filter Screen
  • Keeps dirt and debris from entering pump in submersible applications
  • Asynchronous Vortex Impeller
  • Provides whisper quiet, continuous duty operation
  • Submersible or In-Line Use & Vertical or Horizontal Positioning
  • Meets the needs of a wide variety of water feature applications
  • 1-1/2" Inlet & 1-1/2" Outlet
  • Includes threaded female couplings and fittings
  • 20-Foot, Grounded (3-Prong) Power Cord
  • Allows for easy set-up and operation
  • Built-In Carry Handle

Specifications

PLHD 3200
specs product image PID-76585
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1.5
Thermal Protection
No
Power Cord Length
20 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
53.3 Gallons
Inlet Diameter
1-1/2 Inch
Outlet Diameter
1-1/2 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
12 Feet
GPH @ 0 feet
3200
GPH @ 5 feet
2050
GPH @ 10 feet
1650
GPH @ 15 feet
650
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
No
Overview
Product Category
Water Pump
Made in USA
No
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
6.25 Inches
Product Height
6.75 Inches
UPC
025033026803
Additional Model Numbers

2680, PLHD 3200

Accessories
Hose Couplings
Yes

Reviews

(2)
Pondmaster PLHD 3200 Reviews & Ratings
Verified Buyer
Verified Buyer
Workhorse Of A Pump
By Richard B.
Dallas, Texas
Purchased 07/13/2021 |
Review Posted 08/28/2021
Pondmaster ProLine is very heavy duty pump that flat just runs. I currently have two running, handling two waterfalls. Very powerful and efficient. Simple setup. Comes with a a few different plumbing option connections. Just wish it cost less $$.
Richard B. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Durable, Quiet, Reliable, High Quality
Cons:
Expensive
Verified Buyer
Verified Buyer
This One Is Just Right
By Jenny W.
TUALATIN, Oregon
Purchased 05/15/2019 |
Review Posted 06/05/2019
This is my 2nd Proline 2680, and I would still be on my first if I had kept the iris trimmed in my water garden. The first one ran without a hitch for 12 years before the roots choked it, and I expect the second to last longer than that. I have bought pumps from other manufacturers that failed for no obvious reason, but the Proline is rock solid.
Jenny W. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Price, Reliable, I'd Buy It Again
