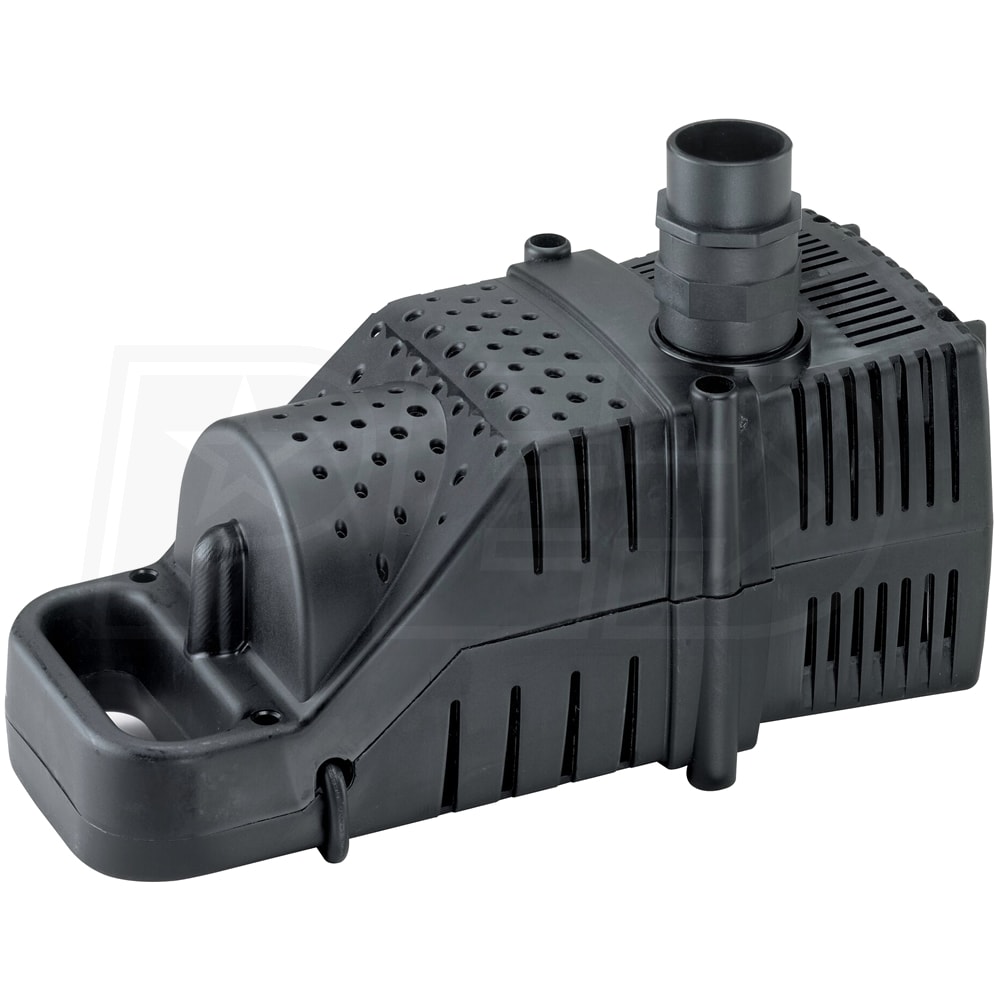

Pondmaster ProLine HY-DRIVE 4000 GPH Submersible Waterfall / Pond Pump

Model:

PLHD 4000

Write A Review
$312.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Nov 22nd
Shipping to60601

Pondmaster ProLine HY-DRIVE 4000 GPH Submersible Waterfall / Pond Pump
Pondmaster ProLine HY-DRIVE 4000 GPH Submersible Waterfall / Pond Pump
Model: PLHD 4000
$312.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

1-1/2 Inch

Style

Pond

GPM

66.66 Gallons

    PROLINE BY PONDMASTER HY-DRIVE PUMPS are unique, high-capacity pumps designed specifically for use in larger pond installations. The Hy-Drive design combines the benefits of magnetic and direct drive technologies to deliver great performance and high efficiency in an extremely quiet, low maintenance package. The heavy-duty polypropylene enclosure has a built-in carry handle and effective molded-in debris screen. Hy-Drive pumps can be positioned vertically or horizontally and can be used as a submersible pump or as an inline, external pumping source.
  • Pondmaster 4000 GPH Proline Hy-Drive Water Pump
  • 3-Year Limited Warranty
  • Makes it easy to transport and position pump
  • Made for pond skimmers in a larger ponds and waterfalls
  • Fish Safe Design
  • Oil-Free cooling means unit won't leak or contaminate water
  • Hy-Drive Magnetic / Direct Drive Induction Motor
  • High efficiency design, only draws 1.85-Amps (200 Watts)
  • Delivers greater performance compared to standard Hy-Drive pumps
  • 316 Stainless Steel Rotor
  • Provides greater corrosion and wear resistance for longer pump life
  • Heavy-Duty, Polypropylene Enclosure w/ Extra-Long Clog Resistant Filter Screen
  • Keeps dirt and debris from entering pump in submersible applications
  • Asynchronous Vortex Impeller
  • Provides whisper quiet, continuous duty operation
  • Submersible or In-Line Use & Vertical or Horizontal Positioning
  • Meets the needs of a wide variety of water feature applications
  • 1-1/2" Inlet & 1-1/2" Outlet
  • Includes threaded female couplings and fittings
  • 20-Foot, Grounded (3-Prong) Power Cord
  • Allows for easy set-up and operation
  • Built-In Carry Handle

Specifications

PLHD 4000
specs product image PID-76560
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
1.85
Thermal Protection
No
Power Cord Length
20 Feet
Oil Free Motor
Yes
Pump
Gallons Per Minute
66.66 Gallons
Inlet Diameter
1-1/2 Inch
Outlet Diameter
1-1/2 Inch
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Total Head Lift
13 Feet
GPH @ 0 feet
4000
GPH @ 5 feet
2700
GPH @ 10 feet
1475
Submersible
Yes
Engine
Continuous Operation
Yes
Oil-Cooled
No
Overview
Product Category
Water Pump
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6 Inches
Product Height
7 Inches
UPC
025033026759
Additional Model Numbers

2675, PLHD 4000

Accessories
Hose Couplings
Yes
