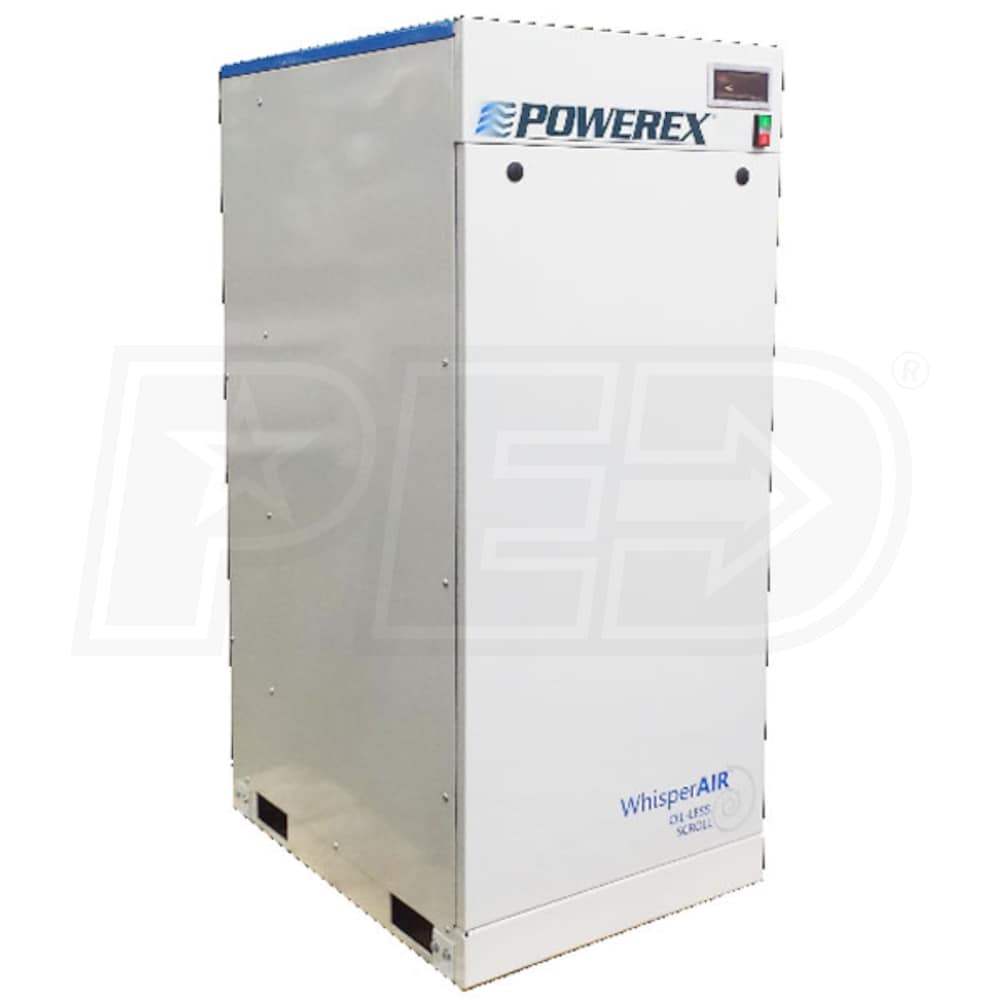

Powerex SEQ 20-HP Tankless Quadplex High Pressure Oil-Less Enclosed Scroll Air Compressor (208V 3-Phase 145 PSI)

Model:

SEQ20072HP

Write A Review
$34,149.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Powerex SEQ 20-HP Tankless Quadplex High Pressure Oil-Less Enclosed Scroll Air Compressor (208V 3-Phase 145 PSI)
Powerex SEQ 20-HP Tankless Quadplex High Pressure Oil-Less Enclosed Scroll Air Compressor (208V 3-Phase 145 PSI)
Model: SEQ20072HP
$34,149.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

208 Volt AC

Phase

3-Phase

CFM

50

Tank Size

0



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Completely Oil-Less, High Pressure Quad-plex 100% Duty Cycle Scroll Air Compressor (Not For Medical Use)
  • Four 5-HP pumps & motors with alternating controls for balanced unit wear & performance
  • Delivers completely clean, dry air ideal for manufacturing, pharmaceutical production, labs, etc.
  • WhisperAIR Sound Enclosure Cabinet
  • 58 dBA allows work near the compressor; about the same as a conversation in a restaurant
  • Rigid steel frame has powder-coated panels lined with sound-deadening insulation; vibration isolators reduce noise
  • Programmable, Touch-Screen Logic Controller
  • Operates compressor modules as needed to meet demand with one or more motor/pump compressors
  • Displays hours, high temp & motor overload alarms, run indication, & hours to scheduled maintenance for each module
  • Pressure settings are user adjustable within factory predetermined setting limits
  • Four 5-HP TEFC, NEMA Motors & Single Inlet Filtration With Replaceable Element
  • Compact footprint, energy efficient operation, low maintenance & environmentally friendly design
  • Integral Air-Cooled Aftercooler Design
  • Cools the compressed air, allowing water droplets to condense out of the air flow for drier air
  • Patented Tip Seal Design
  • Yields the highest flow rates and longevity of any other dry scroll compressor
  • Limited Standard Factory Warranty Covers Defects In Materials & Workmanship
  • 12 months / 5,000 hours of use; covers the airend for 36 months / 10,000 hours whichever comes first.
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

SEQ20072HP
specs product image PID-77341
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
58
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
59.6
Recommended Breaker
Consult Certified Electrician
Engine
HP
20
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
50
CFM Rated @
100 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Pump Type
Scroll Compressor
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
0 Gallons
Tank Included
No
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
1125 Pounds
Certification
UL, NEMA, ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
26 Inches
Product Width
38 Inches
Product Height
61 Inches
