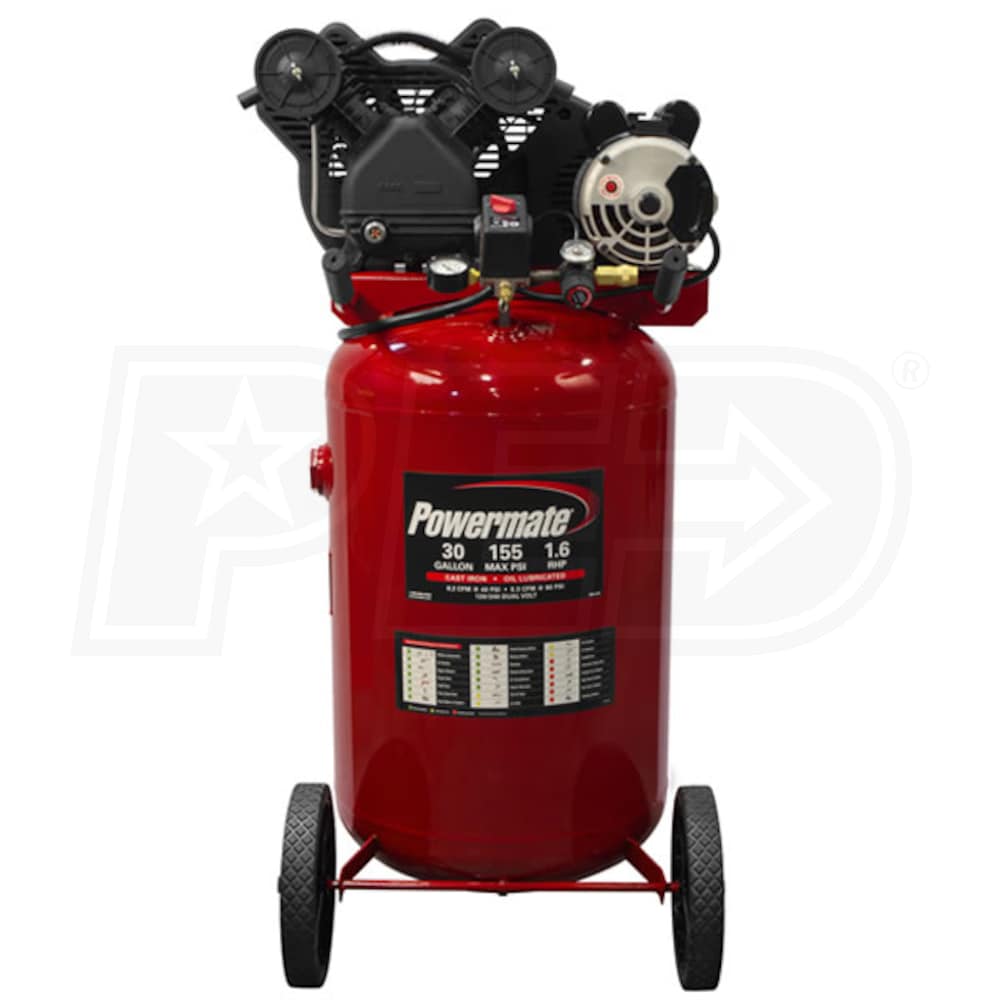

Powermate 1.6-HP 30-Gallon (Belt Drive) Cast-Iron Air Compressor

Model:

PLA1683066

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Powermate 1.6-HP 30-Gallon (Belt Drive) Cast-Iron Air Compressor
Powermate 1.6-HP 30-Gallon (Belt Drive) Cast-Iron Air Compressor
Model: PLA1683066
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Portable - Vertical

CFM

5.3

Tank Size

30

  • 1.6 HP Heavy-Duty Dual Voltage Induction Motor
  • Provides maximum performance & efficiency
  • Wired for standard 120V outlet; can be converted to 240V

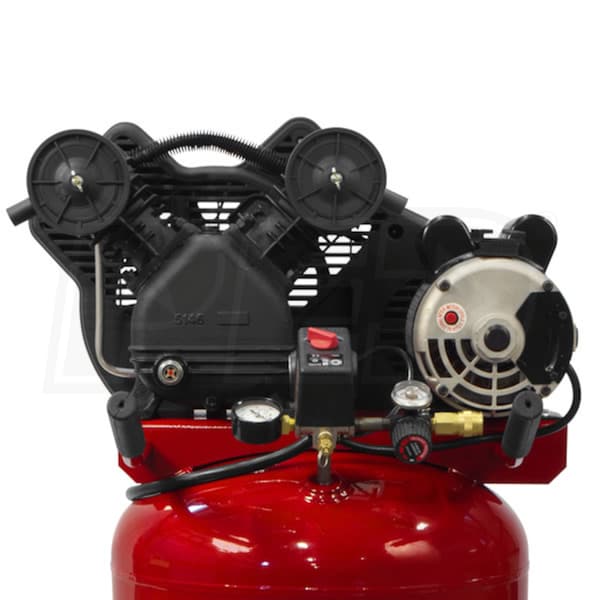

  • Cast Iron, V-Twin Cylinder Pump
  • Stable cast iron cylinder body; aluminum head disperses heat
  • Oil lubricated for long pump life
  • Oil level sight glass for easy maintenance
  • 10" Cast Iron Flywheel Belt Drive
  • Fully enclosed for safety
  • Stainless Steel Reed Valves
  • Durable and reliable
  • 30 Gallon Horizontal Tank
  • 155 PSI max pressure for optimum tool performance
  • Never-flat wheels for easy portability
  • 6.2 CFM @ 40 PSI; 5.3 CFM @ 90 PSI powers a variety of air tools
  • Fully Assembled
  • Easy to see quick-set regulator, tank & tool pressure gauges
  • Quick connect air outlet & on/off switch for ease of use
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PLA1683066
specs product image PID-9186
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
120/240 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
15 / 7.5
Engine
HP
1.6
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
5.3
CFM Rated @
90 PSI
CFM @ 40 PSI
6.2
Pump Material
Aluminum w/ Cast Iron Sleeve
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
155 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
30 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Filter
Regulator
Yes
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
154 Pounds
Certification
UL, CSA
Consumer Warranty
2 Years
Product Length
25 Inches
Product Width
24.5 Inches
Product Height
50 Inches
Power Type
Electric
UPC
846212005309
