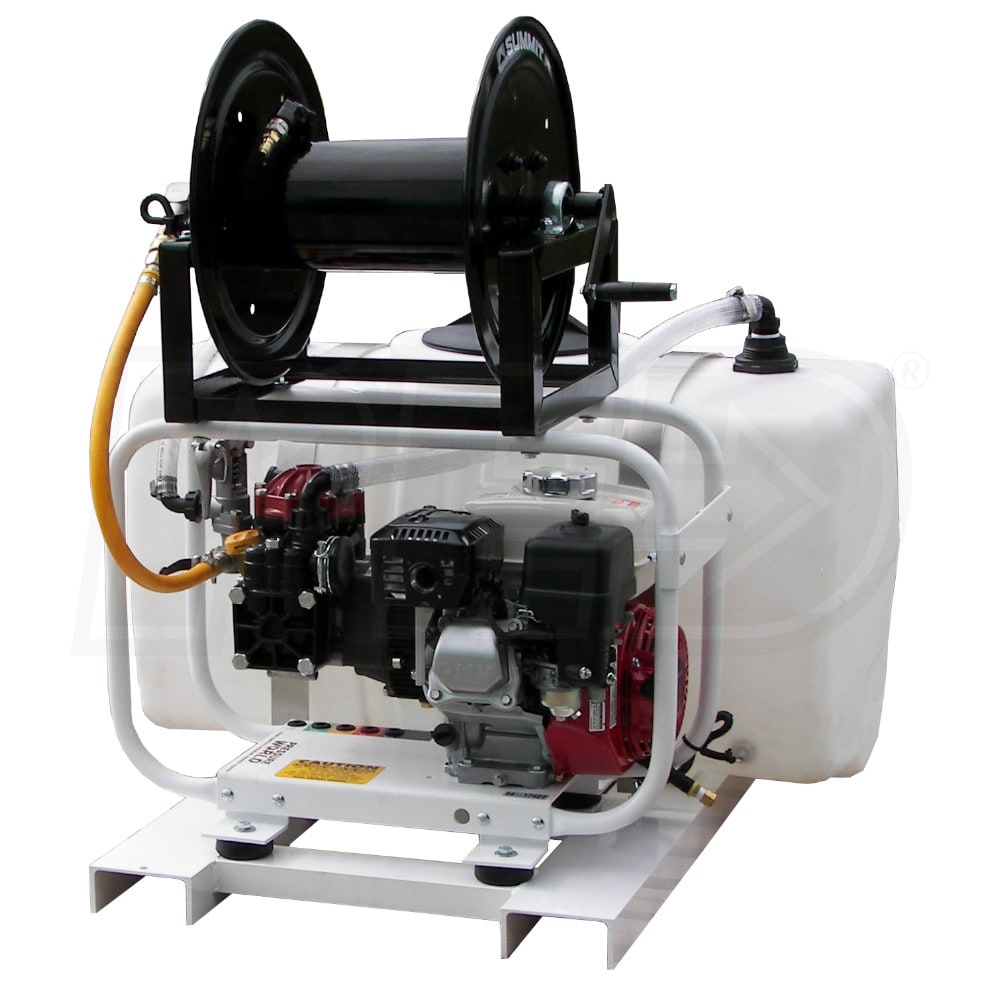

Pressure-Pro Soft Wash 500 PSI Roll Cage Skid w/ 50-Gallon Tank, ATV Skid, Hose Reel, 200' Hose, Trigger Gun, Hypro Diaphragm Pump & Honda GX200 Engine
Model:
RCS/G1050HH-KIT3
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Style
Gas Cold Water
Water Pressure
500 PSI
Water Flow
10 GPM
Cleaning Speed
5000 Cleaning Units
Engine
Honda GX
- Pro ATV Series Soft Wash Complete Spray System
- Removes bacteria, molds, mildews, moss fungus & algae
- Designed for cleaning roofs, building exteriors, driveways, wood decks, fences, vinyl siding & any softer surfaces
- Hypro Diaphragm Gear Drive Diaphragm Pump (9910-D30GRGI)
- Medium pressure, semi-hydraulic 2 diaphragms
- Produces high volume 10 GPM and 500 PSI
- Max. fluid temperature: 140°F and 3600 RPM
- Honda GX 200 Commercial-Grade OHV Engine
- Easy starting with an automatic decompression system
- Low oil alert, quieter performance, and lower fuel consumption
- Aircraft Grade Aluminum Roll Cage Skid
- Lightweight, chemical-resistant & rustproof
- Minimizes accidental flip-overs and protects critical components
- 200-Foot Hose Reel w/ 200-Foot Hose
- Keeps pressure hose neatly wrapped for quick smooth operation
- Hand-crank rewind w/ locking mechanism and rolled, beaded edge flanges prevent injuries
- Assembly Skid/Tank, 50-Gallon Tank & Inlet Plumbing Kit (AST050-GATOR)
- Aluminum skid designed for easy connection to ATV for Gator,Rhino, Mule, Etc.
- Dimensions: 38" W x 48" L x 44" H (with AHR100-1)

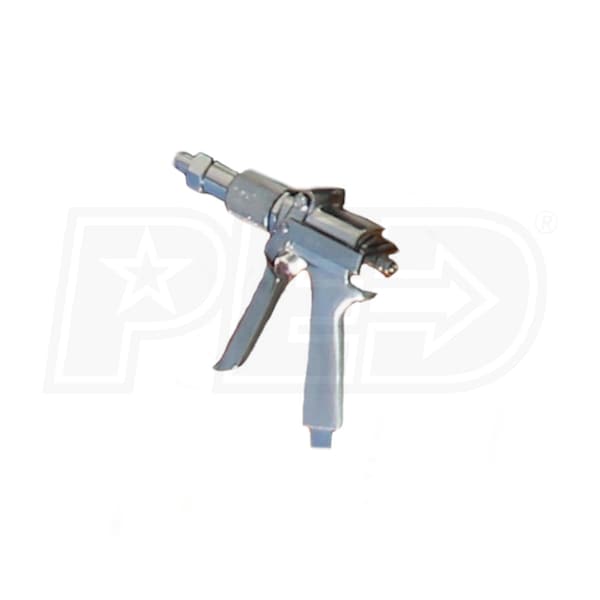

- Heavy Duty Trigger Gun JD9-C 800 PSI (266693)
- Adjustable from a fine fog to a long distance pencil stream
- Convenient trigger lock for continuous spraying and drip-free shut off
- ***UNITS MUST BE FLUSHED IMMEDIATELY AFTER EACH USE***
- NOTE: All units are completely factory assembled, tested in the USA, and delivered ready to operate
- Product Image Disclaimer: "PED is not responsible for any variances from the product in the image and the item you purchase due to supply chain issues. Please review all product specs prior to purchase."
- (1) Pressure-Pro Soft Wash 500 PSI Roll Cage Skid w/ Hypro Diaphragm Pump & Honda GX200 Engine (RCS/G1050HH)
- (1) Pressure-Pro Pro ATV Series 50-Gallon Tank Aluminum Assembly Skid & Inlet Plumbing Kit (AST050-GATOR)

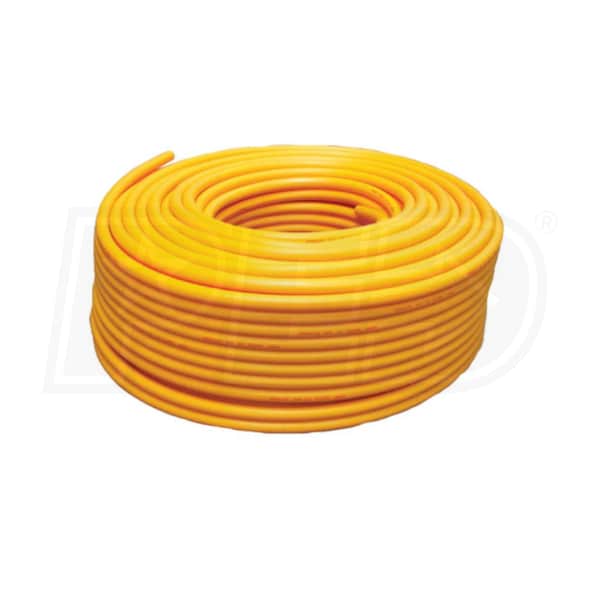

- (1) Pressure-Pro 200-Foot (3/8") Yellow AG Chemical Spray Hose (570 PSI) (4465-1702-200FT)
- (1) Pressure-Pro 1000 PSI Heavy-Duty Trigger AG Chemical Spray Gun (12 GPM, 200° F, Inlet 1/2" NPT-F, Outlet 2.5mm) (266693)
- (1) Pressure-Pro 200ft 3/8" GP Hose Reel (AHR200-1)
*Weather-Related Shipping Delay Notice* Please be advised that due to recent inclement weather, the facility is operating at limited capacity. PED has no control over lead times on pressure washer products coming out of Florida.
Product Includes
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Pressure-Pro Soft Wash 500 PSI Roll Cage Skid w/ Hypro Diaphragm Pump & Honda GX200 Engine (RCS/G1050HH)
- (1) Pressure-Pro Pro ATV Series 50-Gallon Tank Aluminum Assembly Skid & Inlet Plumbing Kit (AST050-GATOR)
- (1) Pressure-Pro 200-Foot (3/8") Yellow AG Chemical Spray Hose (570 PSI) (4465-1702-200FT)
- (1) Pressure-Pro 1000 PSI Heavy-Duty Trigger AG Chemical Spray Gun (12 GPM, 200° F, Inlet 1/2" NPT-F, Outlet 2.5mm) (266693)
- (1) Pressure-Pro 200ft 3/8" GP Hose Reel (AHR200-1)
RCS/G1050HH-KIT3
Overview
Product Category
Pressure Washer
Weight
150 Pounds
CARB Compliant
No
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
48 Inches
Product Width
38 Inches
Product Height
44 Inches
Power Type
Gas
Engine
Engine Brand
Honda GX
Starter
Recoil
HP
196 HP
Fuel Tank Size
.048 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Hose
Hose Storage
200-Ft Reel
Housing
Frame Type
Skid Mount
Wheels
Not Applicable
Pump
Pump Brand
Hypro
Pump Type
Diaphragm
Water Temperature
Cold
Water Pressure
500 PSI
Water Flow
10 GPM
Water Tank
Water Tank Size
50 Gallons
RCS/G1050HH
Overview
Product Category
Pressure Washer
Weight
150 Pounds
CARB Compliant
No
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Product Length
48 Inches
Product Width
38 Inches
Product Height
35 Inches
Power Type
Gas
Engine
Engine Brand
Honda GX
Starter
Recoil
HP
196 HP
Fuel Tank Size
.048 Gallons
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Housing
Frame Type
Skid Mount
Wheels
Not Applicable
Pump
Pump Brand
Hypro
Pump Type
Diaphragm
Water Temperature
Cold
Water Pressure
500 PSI
Water Flow
10 GPM
4465-1702-200FT
Overview
Product Category
Paint Sprayer Accessories
Hose
Hose Length
200 Feet
Hose Material
PVC/Plastic
Hose Diameter
3/8 Inch
AHR200-1
General Information
Product Category
Pressure Washer Accessories
Overview
Product Category
Pressure Washer Accessories
Weight
20 Pounds
Consumer Warranty
90 Days
Commercial Warranty
90 Days
Accessories
Accessory Grade
Professional
Inflow
3/8" Threaded (Male)
Outflow
3/8" Threaded (Female)
Rated PSI
5000 PSI
