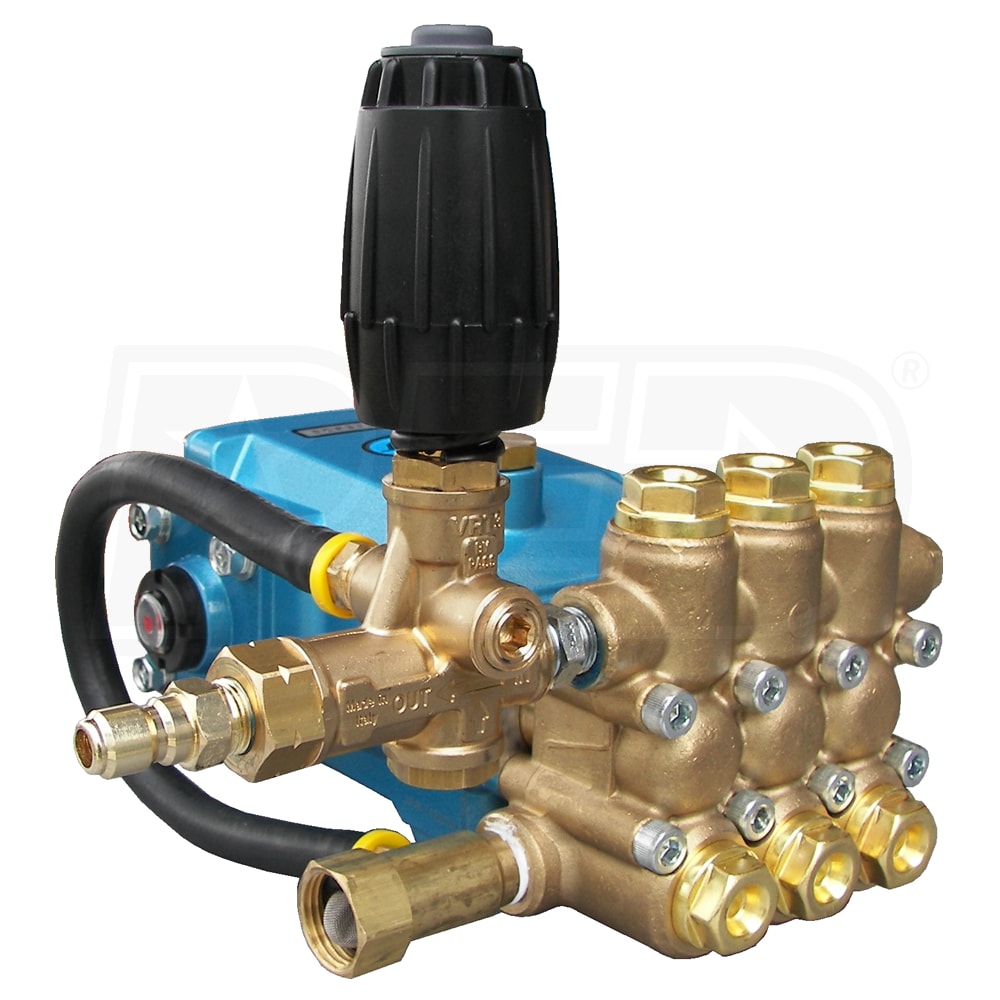

Pressure-Pro Fully Plumbed CAT 4000 PSI 4 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Plumbing Kit (Belt Drive)

Model:

SLP5PP3140-402

Write A Review
$834.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Pressure-Pro Fully Plumbed CAT 4000 PSI 4 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Plumbing Kit (Belt Drive)
Pressure-Pro Fully Plumbed CAT 4000 PSI 4 GPM (Solid Shaft) Triplex Pressure Washer Pump w/ Plumbing Kit (Belt Drive)
Model: SLP5PP3140-402
$834.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Professional

Style

Gas

Inflow

Garden Hose (Female)

Outflow

3/8" Snap Coupler (Male)

    *Weather-Related Shipping Delay Notice* Please be advised that due to recent inclement weather, the facility is operating at limited capacity. PED has no control over lead times on pressure washer products coming out of Florida.
  • Why Repair A Worn Out Pump?
  • Fully Plumbed are ready to go - 4 bolts off - 4 bolts on.
  • Get a great quality replacement assembly for less than a repair
  • CAT Brand Pump Kit Is Ready To Install
  • Comes with unloader, pressure relief valve, siphon tube,
  • Pressure hose quick connect plug, & garden hose inlet w/ filter
  • Concentric Solid Ceramic Plungers
  • Ceramic runs cooler, lasts longer; assures true wear surface
  • Forged brass manifolds for strength and corrosion resistance
  • Lubricated Lo-Pressure seals provide double protection against external leakage
  • Quality Materials
  • Die cast aluminum crankcase provides high strength
  • V-Packings offer unmatched performance and seal life
  • 304 stainless steel valves and seats are hardened and polished for ultimate seating and extended valve life
  • Integral VRT310 Pressure Unloader
  • Standard built-in bypass controls pressure & protects the pump
  • 1/4" fixed chemical injector hose barb & siphon hose
  • Allows addition of pressure washer safe soap to the water flow
  • 20 MM / .787" Solid Shaft
  • Runs at a low 1460 RPM Maximum
  • Plunger bore .630 in. / 16 mm, plunger stroke .709 in / 18mm
  • Be Sure To Measure Flange Bolt Holes & Shaft Accurately!
  • There is a 25% restocking fee on returned pumps
  • See the Owner's Manual (under the Specs tab) for dimensions
  • Please Call Us For Sizing Assistance w/ Information Below:
  • 1. Age of Pump and Model # (must be no more than 15-yrs old)
  • 2. Is the pump Vertical or Horizontal
  • 3. Shaft Size - 3/4", 7/8" (vertical ONLY), 1", or Belt Drive XXmm
  • 4. Engine Brand and HP (model # if available would be helpful)
  • ***Shaft Size Measurements Must Be Precise***
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

SLP5PP3140-402
specs product image PID-99767
General Information
Product Category
Pressure Washer Pumps
Overview
Product Category
Pressure Washer Pumps
Weight
18 Pounds
Consumer Warranty
2 Years
Product Length
10.35 Inches
Product Width
10 Inches
Product Height
5.78 Inches
Power Type
Gas
Accessories
Pump Brand
CAT
Pump Type
Triplex Plunger
Pump Design
Horizontal
Adjustable Pressure
Yes
Accessory Grade
Professional
Accessory Style
Gas
Inflow
Garden Hose (Female)
Outflow
3/8" Snap Coupler (Male)
Minimum GPM Learn More
Minimum GPM
Gallon per Minute
4
Rated PSI
4000 PSI
