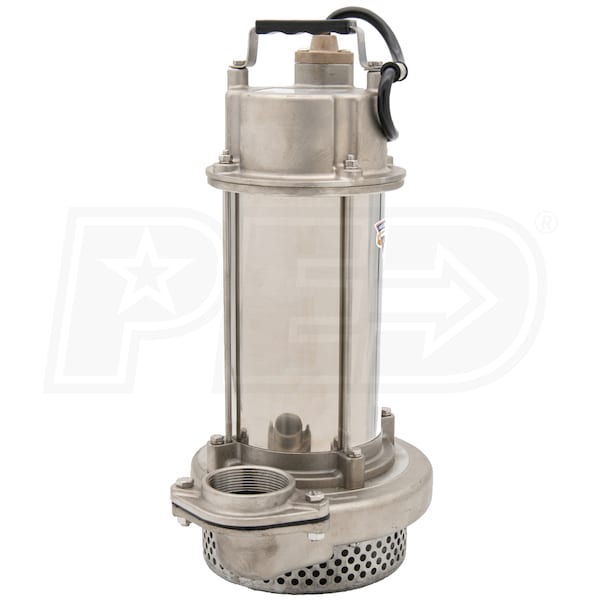

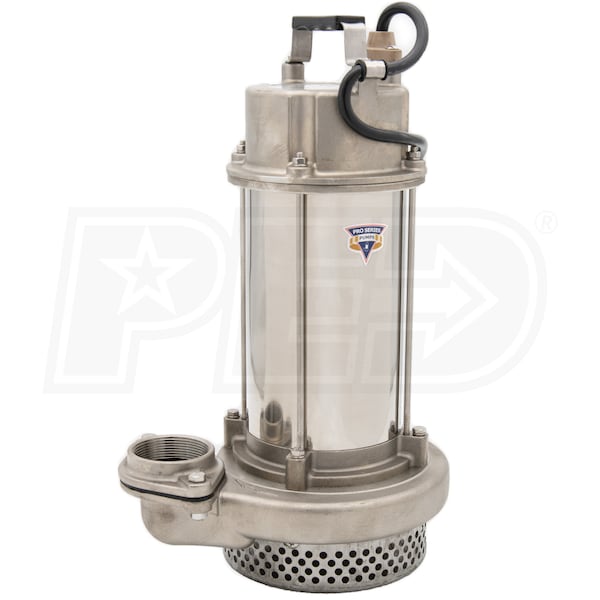

Pro Series C8100-NS - 1 HP Chemical Resistant Submersible Pump

Model:

DCM-100

Write A Review
$1,321.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 27th
Shipping to60601

Pro Series C8100-NS - 1 HP Chemical Resistant Submersible Pump
Pro Series C8100-NS - 1 HP Chemical Resistant Submersible Pump
Model: DCM-100
$1,321.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Inlet Size

N/A

Style

Chemical

GPM

90 Gallons

  • Stainless Steel Design Will Not Rust Or Corrode
  • Designed for use in salt/brackish water and chemicals
  • Heavy Duty 1 HP Permanent Split Capacitor (PSC) Motor
  • Energy efficient design, 11.3A @ 10' head
  • Thermally Protected Motor
  • Overload protection prevents overheating
  • Bottom Suction Design
  • Slotted intake will pass solids up to 3/8"
  • High Capacity 2" Discharge
  • Designed for continuous duty applications
  • Double Carbon, Ceramic Viton® Seal
  • Designed to be used in corrosive and non-corrosive applications
  • Pump Can Handle Liquids Such As
  • Beverages, fruit juices, coffee, milk, cream
  • Detergents, ethylene glycol, oils and acids
  • 20' Power Cord
  • 1-Year Warranty

Specifications

DCM-100
specs product image PID-17606
General Information
Product Category
Water Pump
Motor
Voltage
120 Volt
Running Amps
11.3
Pump
Gallons Per Minute
90 Gallons
Outlet Diameter
2 Inch
Pump Head Material
Steel
Mechanical Seal Material
Ceramic Carbon
Housing Material
Stainless Steel
Impeller Material
Aluminum
Solids Handling Size
.375 inch
GPH @ 0 feet
5400
GPH @ 5 feet
5400
GPH @ 10 feet
4920
GPH @ 15 feet
4140
GPH @ 20 feet
3660
Max Head
49 Feet
Submersible
Yes
Engine
Continuous Operation
Yes
Shaft Seal
Ceramic Carbon
Horsepower
1 HP
Overview
Product Category
Water Pump
Weight
46 Pounds
Consumer Warranty
1 Year
Product Length
10.4 Inches
Product Width
7.5 Inches
Product Height
18.125 Inches
Additional Model Numbers

C8100-NS, DCM-100
