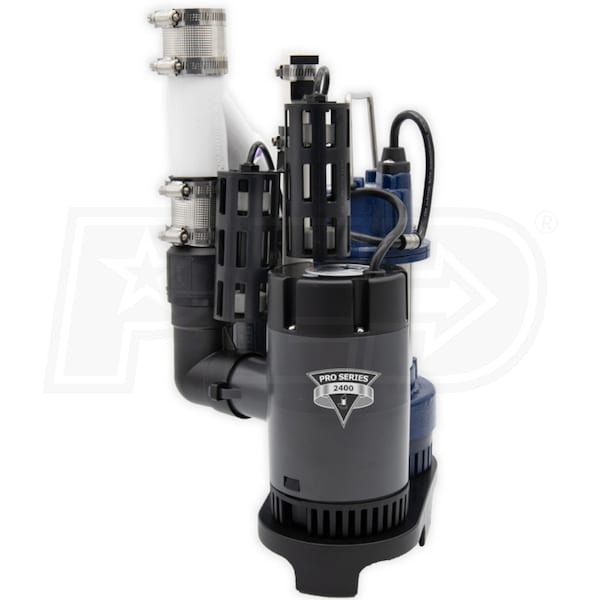

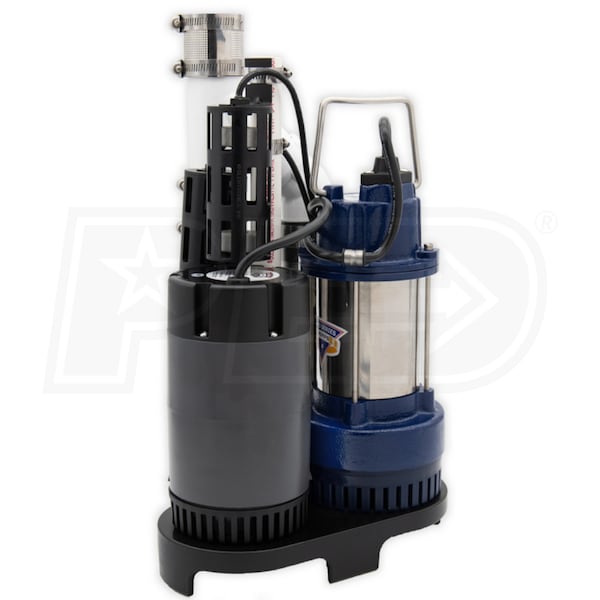

Pro Series PS-C33 - 1/3 HP Combination Primary & Backup Sump Pump System

Name: Pro Series PS-C33 - 1/3 HP Combination Primary & Backup Sump Pump System
Brand: Pro Series
SKU: 6978
Price: 900.00 USD
Availability: InStock

Model:

PS-C33

Write A Review

$900.00

Free Shipping

In-Stock

Ships Friday, Nov 22nd

Shipping to60601

Options

Pro Series PS-C33 - 1/3 HP Combination Primary & Backup Sump Pump System

Model: PS-C33

$900.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Style

Combo

GPH

3000 Gallons

Switch Type

Vertical

Protect Your Basement from Flooding
Provides both primary and backup pumping capabilities
Primary pump will operate as long as it is receiving A/C power
A/C fails or excessive water into sump than pump can handle
The backup sump pump will begin pumping automatically
Exclusive Monitoring System
Detects irregularities, sounds an alarm, & pinpoints problems
Maintains and recharges battery automatically
Alarm can be silenced during a power outage
Output terminals for connection to a security system/auto-dialer

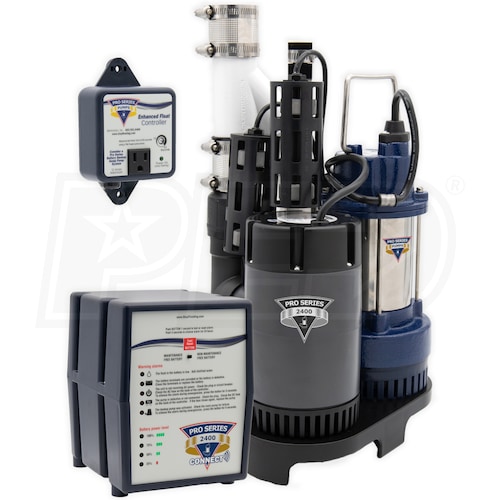

Combination System Includes:
1/3 HP-PSC Primary Pump (3000 GPH @ 10' Lift)
PHCC 2400 12V Backup Pump (2400 GPH @ 10' Lift)
Backup system controller/charger with fluid sensor
Primary pump controller (DFC1.5) with caged dual float switch
2 Check valves & 1-1/2" Rubber Union
Sump Foot™ - raised platform for both pumps
Battery Box Included
Can accommodate 1 or 2 Batteries (Sold Separately)

Specifications

PS-C33

General Information

Product Category

Sump Pump

Base

Base Material

Cast Iron

Min Sump Basin Size

12 Inch

Motor

Voltage

12 Volt DC/120 Volt AC

Running Amps

Power Cord Length

8 Feet

Oil Free Motor

Yes

Pump

Housing Material

Cast Iron

Float Type

Vertical Float

GPH @ 0 feet

3000

GPH @ 10 feet

3000

Discharge Port Size

1-1/2 Inch

Check Valve Included

Yes

Backup GPH @ 10 feet

2400

Engine

Horsepower

.33 HP

Overview

Product Category

Sump Pump

Weight

43 Pounds

Consumer Warranty

3 Years

Product Length

11 Inches

Product Width

10 Inches

Product Height

28.25 Inches

UPC

717301122026

Reviews

(129)

Pro Series PS-C33 Reviews & Ratings

Product Q&A

(16)

Product Questions Answered by Jim, the Sump Pump Expert

Can I use a LifePo4 battery with this system?

Sonny

from South Dakota

August 13, 2024

Is it safe to have the pump on and drawing air to clear the discharge line?

Tom

from Illinois

August 25, 2023

Can the back up pump use AC power?

Jim

from Ohio

August 21, 2023

What is the minimum size basin needed for the pro series ps-c33. What is the size of both pumps combined?

Dan

from Pennsylvania

June 17, 2019

What are the dimensions of the battery box that comes with this system?

Joel

from Wisconsin

April 24, 2018

I purchased this pump from Sump Pumps Direct and love it. We've had the worst rainy week here in the last 2 years. The pump is triggering once a minute right now. My concern is that is not good for the pump. My pit is narrow but fairly deep, so each cycle is only pumping maybe 2 gallons. The 10 second shut off is not the issue as the pit is pumped dry. Is there any other float options, to allow more water in the pit before triggering. I have the float as high as possible given the piping and too high of course will affect the backup float.

Tony Z.

from New Jersey

April 01, 2017

Answer

Hi Anthony. These pumps and switches are designed to handle the rigors of the switching cycles during rainy days and periods so you need not worry as long as those cycle rates decline when things dry out. If you absolutely want another option however, you might consider the HydroCheck model HC6000 Electronic Hi-Lo Pump Switch. This would offer you two sensors, one for your "ON" level and one for your "OFF" level to give you complete control of your cycle rates. Please note however, that this is strictly for your main pump operation only and NOT for your backup pump.

Was this answer helpful?

Yes

HI. Comparing this to the Liberty combo. Liberty states it has solid handling. My washing machine drains into my sumo pit so that includes lint from clothes...can this pump handle that? And also, what battery choices are recommended for back up?

Dave

from Illinois

July 04, 2016

Can I use a maintenance-free marine battery with this system?

Dan C

from Illinois

February 02, 2016

Are the switches adjustable so I can set the water height for them to turn on? Does the float turn off the pump or does it run for a set period of time?

Ken

from Michigan

November 19, 2014

Answer

The float switches can be adjusted and moved higher or lower, though you may need to get a bit creative to achieve this due to the actual design of the piping on this system. The float switches are timer based. The primary pump will operate for about 10 seconds once the float is raised and drops back to it's original position. The backup pump will operate for about 25 seconds once the float is raised and drops back to it's original position.

Was this answer helpful?

Yes

Jim I recently purchased this pump Unfortunately after a heavy rain with both pumps running I still had an overflow. Would running separate 1.5 discharge lines for each pump increase the GPH capability? Seems like the Y in the lines might create a bottle neck?

Rich K

from Minnesota

July 26, 2014

Jim - Any issue wth installing a redundant check valve on the discharge pipe prior to connection to the unit...in case one of the valves in the unit fails? Would it impede flow in any way on a 10' lift?

Matt P

from Indiana

June 02, 2014

Hi Jim, thanks for answering my questions about the PS-C33. It sounds like a great combination pump! One thing I’m concerned about is surge protection, as we get a lot of storms in Minnesota. Do you know what type of surge protector is recommended for this unit? Thanks, Terry

Terry J

from Minnesota

February 11, 2014

Jim, why would you recommend this combo as "Better" over the "Good" Basement Watchdog 1/2 HP unit when the other unit has more power in the primary and backup pumps? I'm considering a combo unit and would love to hear your thoughts.

Donato M

from Virginia

November 09, 2012

Answer

If you're looking for a heavier duty system, the Pro Series PS-C33 is actually a contractor grade system compared to the Basement Watchdog BW4000.

The main difference between the two is:
1. The BW4000 will handle 3200GPH at 10 feet for the primary pump and 1730GPH at 10 feet for the battery backup. The PS-C33 will handle 3000GPH for the primary and 2400GPH for the battery backup system. A bit less capacity on the primary than the BW4000 but considerably more capacity on the backup pump.

2. The PS-C33 will accept 2 batteries connected in parallel to double the run time. The BW4000 does not give you this option.

Was this answer helpful?

Yes

how long will this battery run with loss of power.

Mark

from Ohio

August 31, 2012

Answer

When using the recommended Basement Watchdog battery, you should get approximately 8 hours of continuous run time and 24-36 hours of non-continuous run time on a full charge. Please note however, that these ratings are based on a new battery and will diminish over time and cycles the battery has used. By adding a 2nd battery, you can double that run time to 16 continuous and 48-72 non-continuous.

Was this answer helpful?

Yes

PS-C33: Will it fit in a 12" dia sump pit? Can I use a sealed battery? Thanks.

Gregg Larson

from Washington

July 29, 2011

Answer

The Pro Series Pair of Pumps combination system is compact and will fit in a sump pit as small as 12” wide. It measures 23¾” inches from the bottom of the pump stand to the top of the Yconnector where it will be attached to the discharge pipe.
The battery fluid sensor is designed to fit the Pro Series Standby batteries. Measuring the battery fluid is one of the most important features of the system, since about 80% of backup sump pump failures are the result of a battery that has dried out. If this is difficult to maintain for you, you can also use a maintenance free battery with this system.

Was this answer helpful?

Yes

what type of switch does the backup pump in the pro seriespsc33 use? Is the obove system a very good system? I don't need a wet basement when returning home. Jim

Jim Follon

from Minnesota

June 21, 2011

Answer

Each pump on this system utilizes a dual float switch.

The dual float switch on the primary pump contains two large floating rings enclosed within a protective cage. Water will lift the bottom float by ¼”, which will activate the pump. If for any reason the lower float does not activate the pump, the water will rise to the second float, and it will activate the pump. As the pump
evacuates the water from the pit, the floats will drop. The pump will run for an additional 10 seconds to extend the cycle after the lower float drops. The blue controller for the primary pump powers this switch.

During a power outage, or when more water is entering the sump than the primary pump can handle, the backup pump will automatically begin pumping. It also has a dual float switch, so if one float fails to activate the pump, the second float will activate the pump as soon as the water reaches that level. As the water
recedes below the float switch, a timer in the control unit will run the pump an additional 25 seconds to empty the pit.

This is probably one of the better high output combo systems that we carry and I would highly recommend it.
