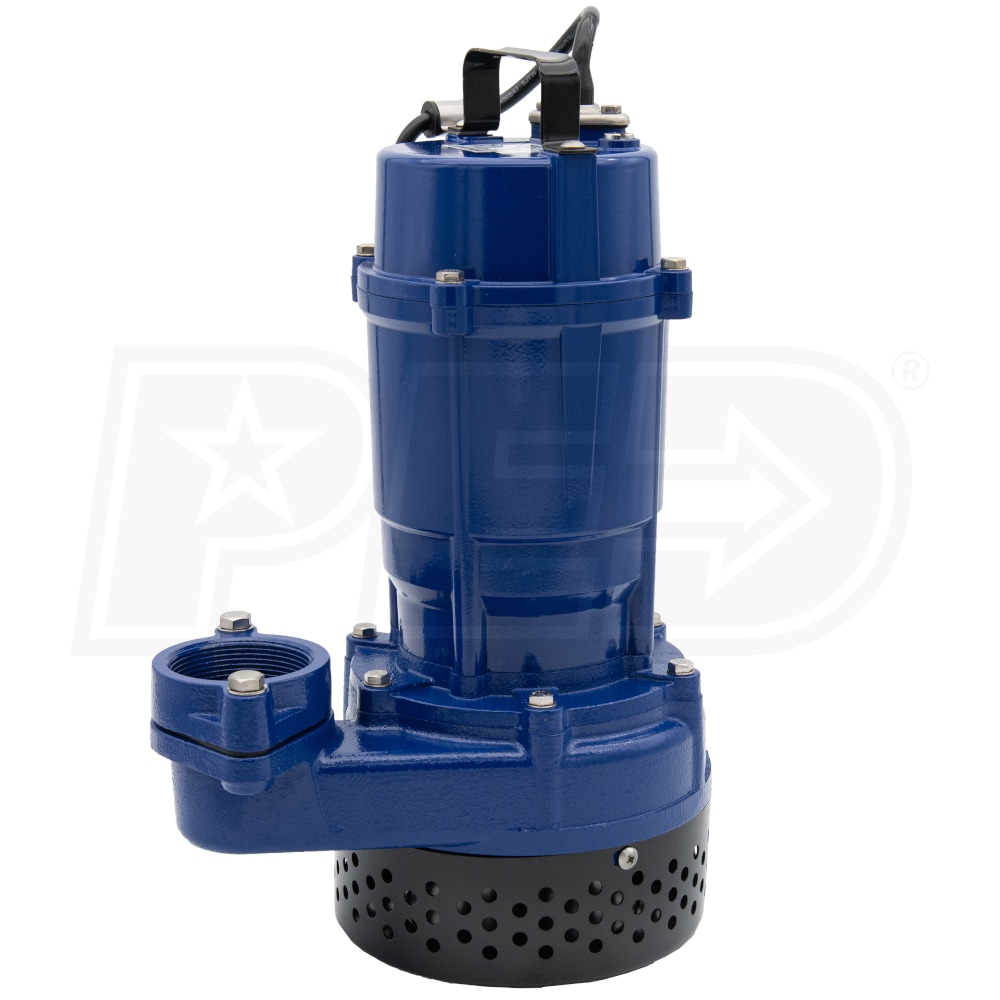

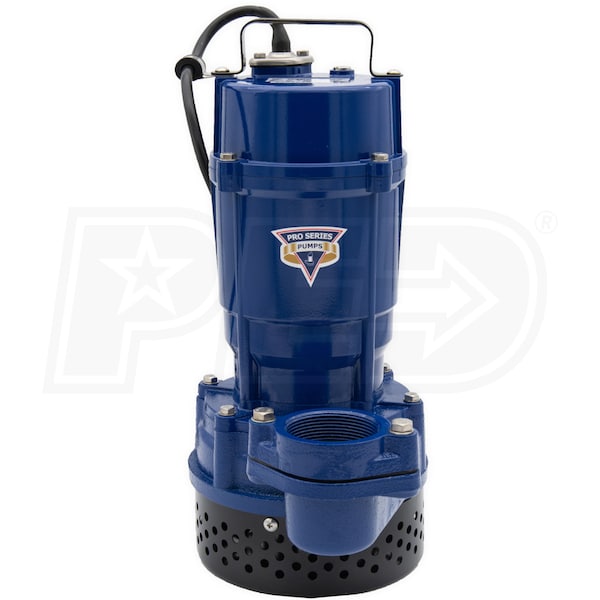

Pro Series - 1/2 HP Cast Iron / Aluminum Submersible Sump Pump (Non-Automatic)
Model:
ST1050-NS
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
5300 Gallons
Switch Type
None
- ST Series Submersible Sump Pump (Manual)
- Requires float switch or controller for automatic operation
- Cast Iron/Cast Aluminum Construction
- Designed to handle harsh sump applications
- 1/2 HP, Permanent Split Capacitor (PSC) Motor
- Energy efficient design for reduced energy consumption
- Thermally protected for increased pump life
- Continuous Duty Rated, Water Cooled Motor
- Oil-free design to maximize cooling
- Can be used in a wide variety of applications
- Dual Carbon / Ceramic Seals + (1) Buna-N-Seal
- Robust design for more motor protection
- Upper & Lower Sealed Ball Bearings
- For smooth and quiet operation
- Stainless Steel Fasteners
- Helps reduce corrosion
- 2" Discharge (Includes 1-1/2 Reducer)
- Allows for easy installation
- 10' Power Cord
- w/ 3-Prong plug
- 18 Month Warranty (1 Year For Continuous Duty)
Specifications
ST1050-NS
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
4.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
Yes
Starting Amps
9.6
Pump
Housing Material
Cast Iron
Impeller Material
Cast Iron
Handles Solids
No
Float Type
No Switch
GPH @ 0 feet
5300
GPH @ 10 feet
4320
Discharge Port Size
1-1/2 Inch and 2 Inch
Check Valve Included
No
Max Head
32 Feet
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
21.1 Pounds
Made in USA
No
Consumer Warranty
1.5 Years
Product Length
9 Inches
Product Width
6.5 Inches
Product Height
11.75 Inches
UPC
717301122354
Additional Model Numbers
ST-1050-NS, ST1050-NS
