ProFlo PF92017 - 3/10 HP Compact Remote Sink/Drain Pump System (1-1/2")
Model:
PF92017
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
GPH
2760 Gallons
Switch Type
Vertical
- PROFLO Complete Remote Sink/Drain Pump System
- Everything you need in one box
- Submersible Sump Pump w/ Vertical Float Switch
- Great for a below grade washing machine or sink
- 3/10 HP Permanent Split Capacitor Motor
- Thermally Protected, Continuous duty design, only draws 4.1A
- Heavy-Duty Cast Iron Construction
- For rapid heat dissipation and extended pump life
- Non-Clogging Impeller & Bottom Suction Design w/ Intake Screen
- Able to pass up to 3/8" solids, passes laundry lint
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 15" x 13.5" Structural Foam Basin - 6 Gallon Capacity
- Includes cover w/ 1-1/2" inlet, discharge & vent
- 1-1/2" Full Flow Check Valve
- Prevents back flow of water into basin
- Pre-Assembled With an 8" Length of PVC Pipe
- Just connect drain, discharge and vent pipe
- 5-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
PF92017
General Information
Product Category
Sump Pump
Motor
Voltage
120 Volt
Running Amps
4.1
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.375 inch
Float Type
Vertical Float

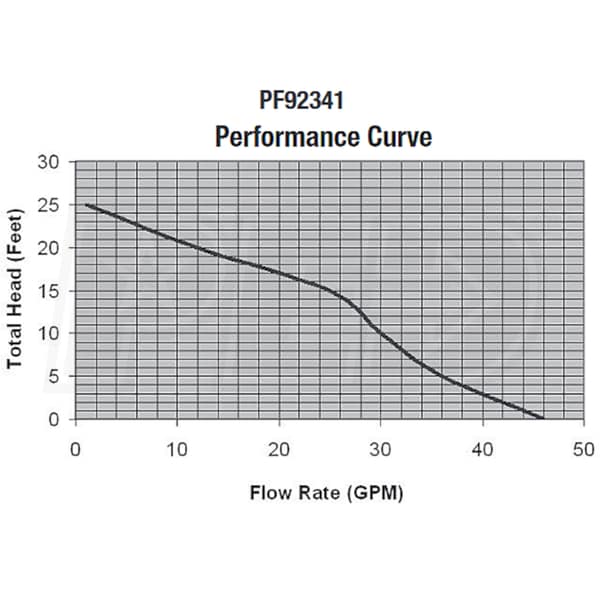

GPH @ 0 feet
2760
GPH @ 5 feet
2160
GPH @ 10 feet
1800
GPH @ 15 feet
1500
GPH @ 20 feet
720
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Check Valve Included
Yes
Engine
Horsepower
.30 HP
Overview
Product Category
Sump Pump
Weight
50 Pounds
Consumer Warranty
5 Years
Product Length
15 Inches
Product Width
15 Inches
Product Height
13.5 Inches
UPC
781889170472
Reviews
(37)
ProFlo PF92017 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Jim, the Sump Pump Expert
can you hook up the clothes washer directly to the basin
Ben
from Georgia
March 25, 2016
