ProFlo PF92260 - 1/4 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Model:
PF92260
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
1800 Gallons
Switch Type
Vertical
- 1/4 HP Submersible Sump Pump w/ Vertical Float Switch
- Designed for use in residential sump applications
- 1/4 HP Split Capacitor Motor (3450 RPM)
- Thermally protected, continuous duty design, only draws 3.8A
- Corrosion-Resistant Thermoplastic Construction
- Glass reinforced nylon housing & impeller maximizes pump life
- SJE Rhombus Vertical Float Switch
- Piggyback style plug, pump can be run manually w/o switch
- Bottom Suction Design w/ Intake Screen
- Able to pass up to 1/8" solids
- Top Discharge Design (1-1/4")
- Great for smaller, non standard sump basins
- High-Quality Components
- Stainless steel motor shaft & fasteners
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Vinyl chloride which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
PF92260
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.055 inch
Handles Solids
Yes
Float Type
Vertical Float

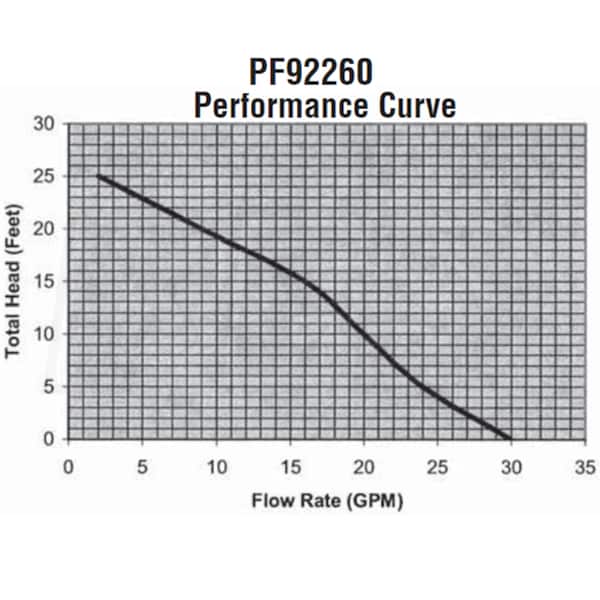

GPH @ 0 feet
1800
GPH @ 5 feet
1320
GPH @ 10 feet
1200
GPH @ 15 feet
960
GPH @ 20 feet
640
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
25 Feet
Submersible
Yes
Engine
Horsepower
.25 HP
Overview
Product Category
Sump Pump
Weight
10 Pounds
Consumer Warranty
3 Years
Product Length
8.5 Inches
Product Width
7.25 Inches
Product Height
10.75 Inches
UPC
781889134696
