Features
- Eliminates Wasted Energy
- Expanded water caused by thermal expansion is collected by the PFXT tank which returns the water back to your system which preventing faucet drips, intermittent toilet fill, and pressure relief valve discharge.
- Protection for Your System
- PFXT thermal expansion tanks are designed to protect your water heater, fixtures, and appliances by preventing dangerous pressure build up.
- Comparable To:
- Amtrol T-5 Thermal Expansion Tank
- Amtrol ST-5 Thermal Expansion Tank

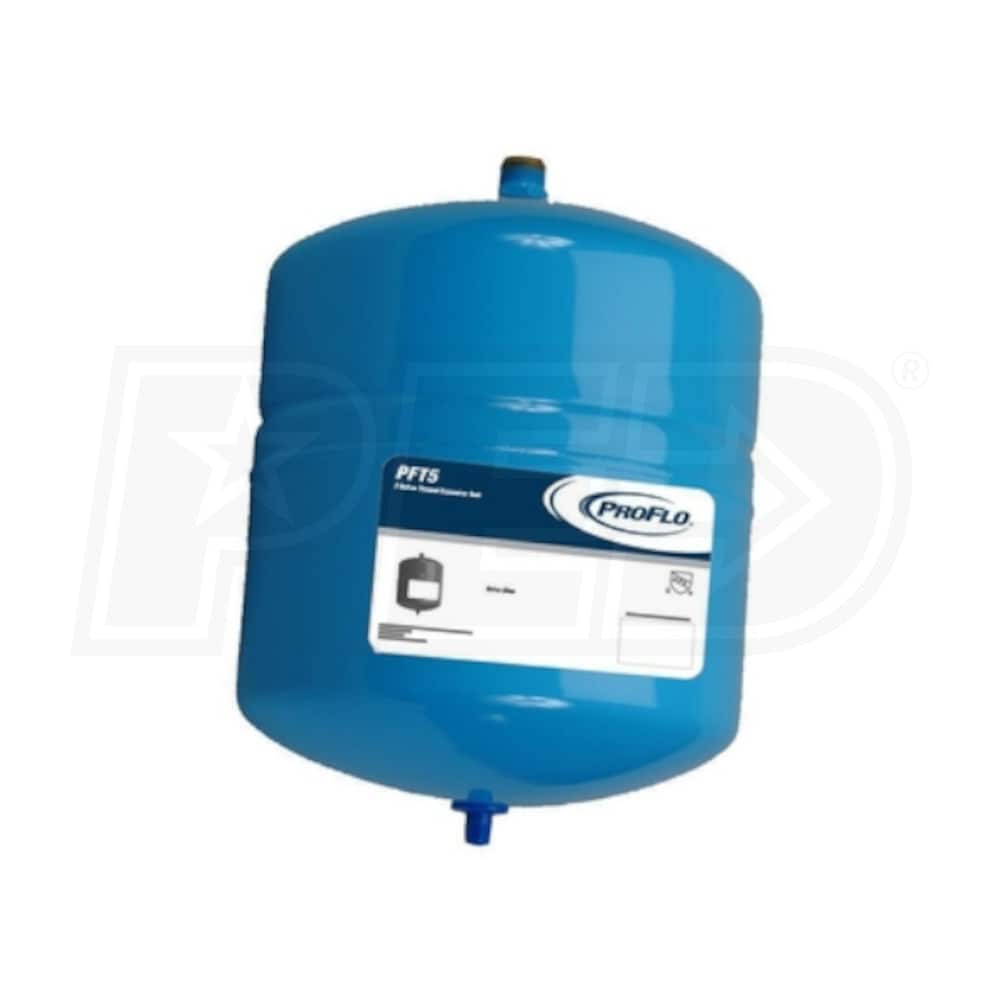

Ideal for residential applications, the ProFlo PFXT5 is a thermal expansion tank designed for potable water systems. This diaphragm-type tank accepts expanded water caused by thermal expansion, then returns the water back into your system when hot water is used. The PFXT series tanks protects plumbing fixtures by controlling pressure build-up, while also eliminating relief valve spills. ProFlo expansion tanks are manufactured with high quality materials to extend the life of your water heater and hydronic system.
Specifications
PFXT5I
Overview
Product Category
Water Heater - Expansion Tanks
General Information
Product Line
PFXT
Product Category
Water Heater - Expansion Tanks
Connection Type
NPTM
Color
Blue
Capacity
2 Gallons
Performance
Maximum Operating Temperature
200 F
Maximum Operating Pressure
150 PSI
Dimensions
Maximum Acceptance Volume
0.45 Gallons
Connection Size
3/4 Inch
Product Diameter
8 Inches
Product Height
12 5/8 Inches
Shipping Length
5 Inches
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
