Features
Grade
Contractor
Style
Portable - Horizontal
Engine Brand
Honda GX
CFM
8.0
Tank Size
4
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

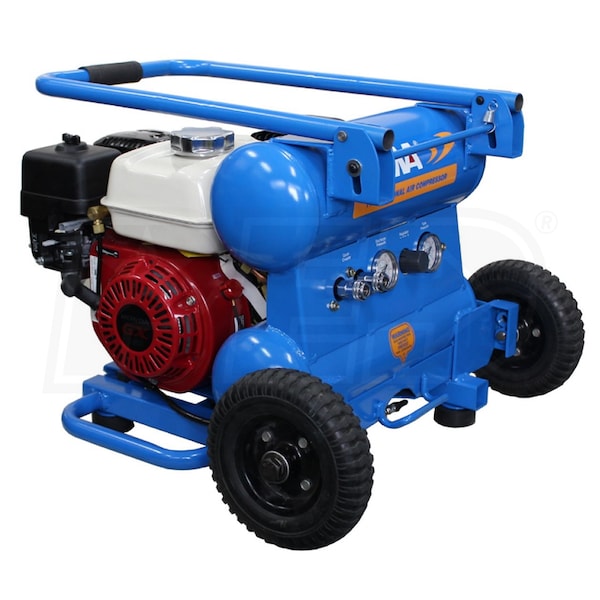

- Puma Single-Stage 4-Gallon Twin Stack Air Compressor
- Engineered for longevity, high performance and durability
- Can handle demanding professional and commercial jobs

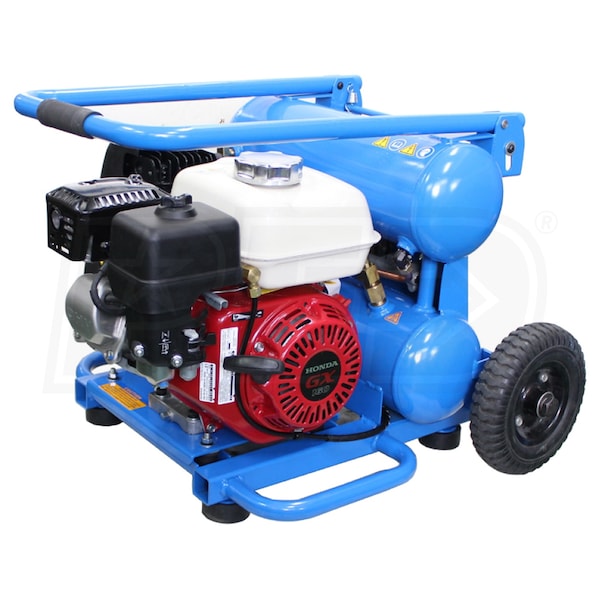

- Reliable Honda GX160 5.5-HP Commercial Grade Gas Engine
- Easy starting, smooth performance & fuel economy
- Precision engineered components result in lower vibration w/ low oil shutoff
- New enhanced muffler for reduced noise level
- Oil Lubricated Single Stage Direct Drive Pump
- Produces 9.1 CFM @ 40 PSI; 8 CFM @ 90 PSI
- Higher output achieved with large cylinder bores
- Rugged Framed Dolly Design

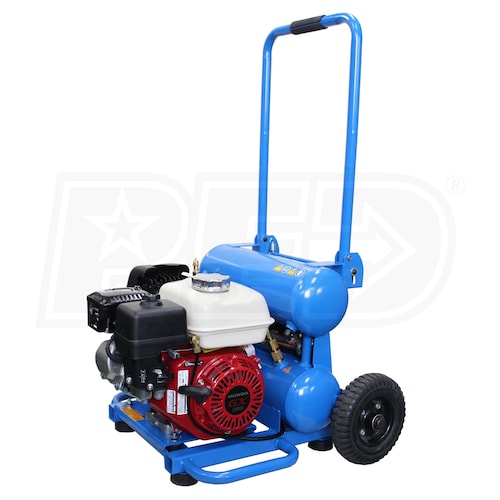

- Handle folds down for a compact design
- Assures great space saving & better protection
- Flat Free Wheels
- Lightweight and portable for easy jobsite transportation
- Wheels can be removed to reduce size & weight
- Can be reconfigured for a stationary or truck mount unit
- Convenient Built-In Regulator
- Makes it suitable for multiple commercial applications
- Provides easy accessibility to manage pressure
- Dual Quick Connect Couplers
- 1/4" air outlet with quick connector for fast tool changes
- Great for powering inside finish air tools

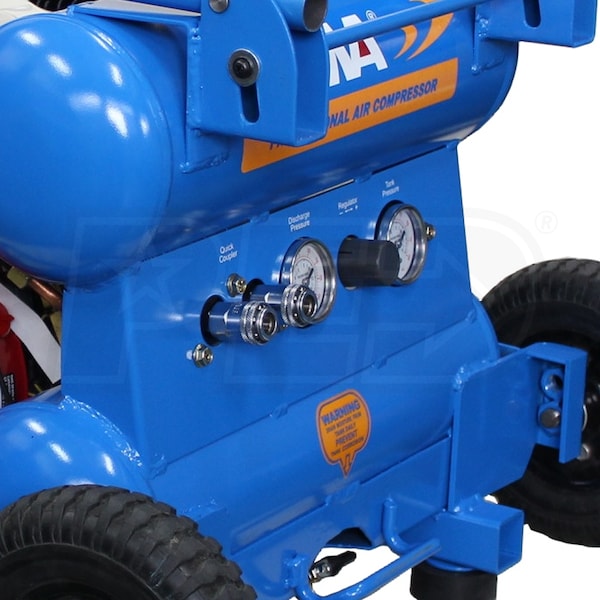

- Easy-To-Read Pressure Control Gauges
- Let's you check tank & tool pressure at a glance
- Perfect for staple guns, brad nail guns, finish nail guns, nail guns, airbrushes & blow guns
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
DG5522HP
Engine
HP
5.5
Auto Idle
No
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Motor
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
8.0
CFM Rated @
90 PSI
CFM @ 40 PSI
9.1
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
4 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
133 Pounds
Consumer Warranty
1 Year
Product Length
25.6 Inches
Product Width
25.2 Inches
Product Height
19.1 Inches
Power Type
Gas
UPC
636084014031
