Features
Grade
Contractor
Style
DC Compressors
CFM
1.36
Tank Size
3
Puma 3/4-HP 3-Gallon 12-Volt Continuous Duty DC Air Compressor
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Durable Oil-Less, Direct-Drive Design
- Provides a maintenance-free operation
- Allows unit to be mounted in any direction
- Ideal for off-road, RV, agriculture, construction & motorsport use
- Continuous 100% Duty Cycle
- Ideal for high-demand applications
- Runs with lower noise (78dB) & improved cooling
- Compact and highly mobile unit to bring anywhere
- Runs On 12-Volt DC Power
- Use anywhere you can mount a battery & need on-board air
- 6.5ft work cables with clamps included
- Requires 50aH battery (battery NOT included)
- Patented Pump Design
- Inlet valve system delivers 2 CFM @ 40 PSI
- Canister inlet filter w/ replaceable filter elements
- Pressure switch with on/off lever preset at 105/135 operating pressure
- Deep Cooling Fin Design On Cylinder Head & Cylinders
- High-efficiency cooling helps the pump last longer
- Provides maximum performance and increased valve life
- Electric Motor Oversized Cooling Fan
- Helps prevents the motor from overheating
- Delivers continuous duty cycle for heavy duty services
- 3.0 Gallon Aluminum Hot Dog Style Air Tank
- ASME certified safety relief valve
- Anti-vibration feet help reduce noise
- Aluminum offers lightweight at 30lbs & prevents corrosion inside the tank
- On-Board Gauges & Air Outlet
- Monitor tank & output pressure at a glance to 135 PSI
- Quick-connector for fast tool changes
- Stainless steel discharge tube for extra protection
- Convenient Positioned Grips
- Three carefully positioned grips for better handling
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PD1012A
General Information
Product Category
Air Compressor - Portable
Motor
Voltage
12 Volt DC
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
78
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
46
Engine
HP
0.75
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
1.36
CFM Rated @
90 PSI
CFM @ 40 PSI
2.0
Pump Material
Aluminum
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
Pump Drive
Direct Drive
Oil Type
Oil Free
Duty Cycle
100%
Tank
Tank Size
3 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Portable
Weight
30 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
21.5 Inches
Product Width
7.5 Inches
Product Height
19 Inches
UPC
636084011047
Reviews
(31)
Puma PD1012A Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.74
(31 Ratings)
5
(27)
(27)4(2)
(2)3(1)
(1)2(0)
(0)1(1)
(1)
Great compact compressor
By Darran P.
Florida
Purchased 10/29/2023 |
Review Posted 11/30/2023
I received this compressor about a month ago I ordered it to put in one of my service vehicles. This unit is very quiet and recovers fast. I will write another review after I use it for 6 months or so...
Darran P. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I39d Buy It Again, Quiet, Light Weight
Cons:
None
Well Built
By Dann
Florida
Purchased 08/17/2023 |
Review Posted 10/03/2023
Much better quality than expected, should last for years.
Dann Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price
Just As Described
By Laurie W
Florida
Purchased 02/01/2023 |
Review Posted 04/04/2023
Rigid and well built. Great paint job!
Laurie W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, Easy To Store
A++++
By Andy O
Nebraska
Review Posted 02/17/2023
A++++++++
Andy O Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Compact
By Jeremy D
California
Review Posted 02/07/2023
Nice little compressor for the size.
Jeremy D Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, I'd Buy It Again, Easy To Store
Cons:
None
Perfect For The Job
By Larry S
California
Review Posted 12/31/2022
Solution to my problem, and was an easy install.
Larry S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use
Cons:
None
Puma 3/4 Hp
By Jared A
Wisconsin
Review Posted 12/06/2022
Light weight for size and easy to carry. Solid quality and looks like it will last.
Jared A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
TOW CO
By Fleet Manager
California
Review Posted 06/16/2022
So far so good. Using industrially in a tow truck. Good pressure, fast refill. Good value, will probably keep buying for our 26 tow units.
Fleet Manager Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
None
Good Product
By Marshal H.
Minnesota
Review Posted 05/17/2022
Worked as needed.
Marshal H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price
Cons:
None
To Much
By Alex J.
North Carolina
Review Posted 04/27/2022
Used the compressor to supply air to clean sweep row cleaners. Must have been too much for it. Lasted two weeks. Cylinder bore wore out. Will not build pressure.
Alex J. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost thank you for your purchase. We appreciate you taking the time to provide us with your feedback and we can certainly understand your aggravation. We do recommend you contact Puma (901) 744-7979 to make sure the issue is not a factory defect. The unit does come with a 1-year warranty and they will be able to properly diagnose the issue for you.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
1/5
1/5
1/5
1/5
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
How often do we have to charge the battery? Can we use it without the main current?
Ahmed E.
from North Dakota
July 16, 2019
How-To Articles
Air Compressor Maintenance Checklist
Air compressors are a major investment, and keeping yours running in top condit...
How to Pick the Perfect Inflator
Portable inflators are extremely convenient to have around the house or on the ...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
Puma 3/4-HP 3-Gallon 12-Volt Continuous Duty DC Air Compressor

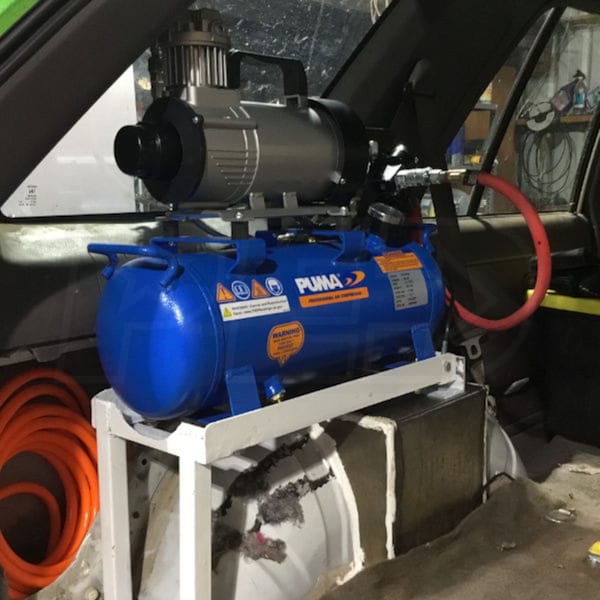

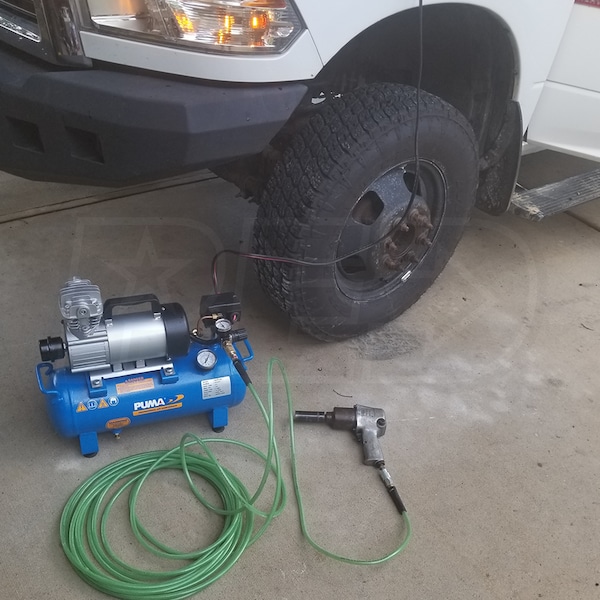

Customer Review Images
