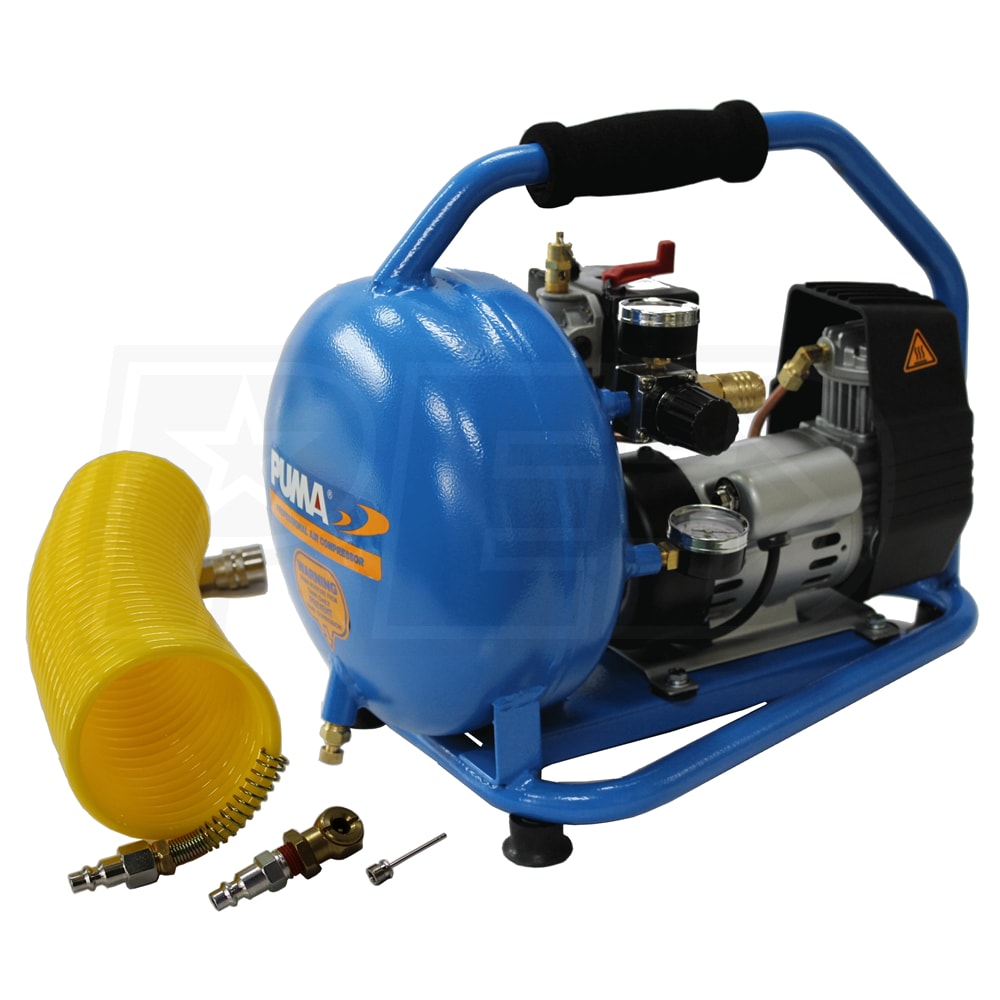

Puma 1/2-HP 1-Gallon Oil-Free Pancake Air Compressor

Model:

PN1004PK

Write A Review
$209.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 7-14 Business Days
Puma 1/2-HP 1-Gallon Oil-Free Pancake Air Compressor
Puma 1/2-HP 1-Gallon Oil-Free Pancake Air Compressor
Model: PN1004PK
$209.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Consumer

Style

Pancake

CFM

0.7

Tank Size

1

  • Ultra-Quiet & Lightweight Pancake Compressor
  • Ideal for small jobs in and around the house
  • Maximum convenience and portability at only 23lbs
  • Designed for finishing work, trim work and craft & hobbies
  • Oil-Free Compressor Pump
  • Delivers 1.1 CFM @ 40 PSI; 0.7 CFM @ 90 PSI
  • Provides long service life and no maintenance.
  • Can run a wide range of small to medium jobs that require pnuematic tools
  • Durable 1/2-HP Electric Motor
  • Produces only 68dBA, about the same as a conversation
  • Quiet enough to work next to all day without stress
  • 1-Gallon Pancake Tank
  • Rated for a maximum of 135 PSI
  • ASME certified safety relief valve for maximum protection
  • Easy access tank drain simplifies maintenance; rubber feet reduce vibration
  • Unique Frame Design
  • Provides elegancy & protection to unit
  • Padded handle adds secure grip when moving around
  • Offers ergonomic for comfort to users when carrying unit
  • Built-In Regulator With Pressure Gauge
  • Top-mounted controls are large & easy to read
  • Let's you control the amount of pressure to get the job done right
  • Also, handy for common garage tasks like cleaning & inflating tires, air beds, toys & sport balls
  • Pressure Switch With On/Off Lever
  • Preset at 105/135 operating pressure
  • Regulates air pressure in the compressor for maximum performance
  • 25-FT Coil Hose w/ Quick Coupler & Connector
  • Let's you work in a wider area with ease
  • Tire chuck and needle inflator included
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

PN1004PK
specs product image PID-82521
General Information
Product Category
Air Compressor - Portable
Engine
HP
0.5
Motor
Voltage
115 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
68
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
3
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
0.7
CFM Rated @
90 PSI
CFM @ 40 PSI
1.1
Pump Material
Aluminum
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Pump Type
Single-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Direct Drive
Oil Type
Oil Free
Tank
Tank Size
1 Gallon
Tank Outlet
1/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
23 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
17.3 Inches
Product Width
11 Inches
Product Height
14.6 Inches
Power Type
Electric
UPC
636084010033
