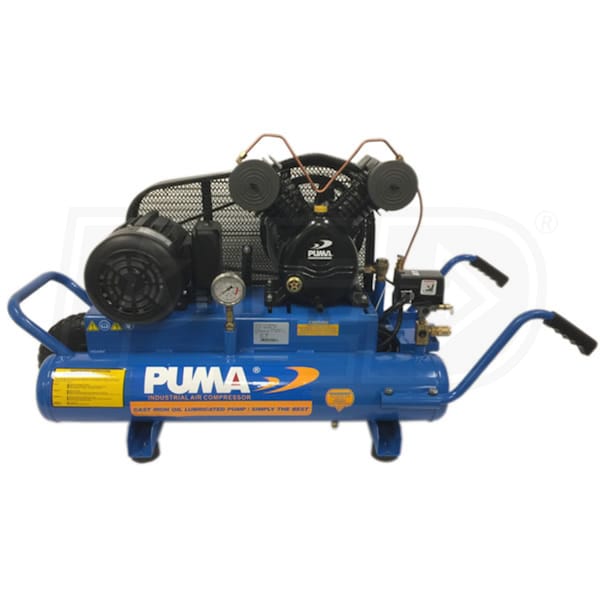

Puma 2-HP 8-Gallon Dual Voltage Wheelbarrow Air Compressor (115/230V Single-Phase)
Model:
PUK-2008MDC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Wheel Barrow
CFM
7.4
Tank Size
8
- Dual Voltage 2-HP Electric Motor
- Comes wired for 155 volt, single phase power
- If 230V-1 use is needed customer must rewire unit
- (230V plug not included; customer must supply to meet local code)
- 2-HP Induction Motor With Overload Protection
- 3450 RPM provides plenty of power for professional use
- Oil Lubricated, Single Stage Cast Iron Pump
- Produces 8.5 CFM at 40 PSI; 7.4 CFM at 90 PSI
- Pump runs at 980 RPM for dependable performance
- Dual Wheelbarrow-Style Air Tanks
- Hold 4 gallons of air each for a total of 8 gallons
- Rated up to 135 PSI; weighs 200 pounds
- Single no-flat front wheel for easy mobility around job sites
- Built-In Pressure Regulator & Quick Coupler Air Outlet
- Fast and simple air control can be checked at a glance
- Front Grab Rail
- Protects the compressor & makes it easier to transport
- Enclosed Belt Drive
- Protects the belt & the operator
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
PUK-2008MDC
Motor
Voltage
115 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Engine
HP
2
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
7.4
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
135 PSI
Oil Sight Glass
No
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
1/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
200 Pounds
Certification
CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
48 Inches
Product Width
19 Inches
Product Height
25 Inches
Power Type
Electric
