Features
Grade
Commercial
Voltage
208-230 Volt AC
Phase
1-Phase
CFM
14
Tank Size
40
- 208-230 Volt, Single Phase 5HP Induction Motor
- Reliable power for craftspeople & light commercial use
- Requires 23-21 amp circuit; no magnetic starter needed
- 2 Stage Cast-Iron 985 RPM Pump
- Produces 14 CFM at 90 PSI, 12.8 CFM at 175 PSI
- Oil Lubricated
- Runs quietly & reliably
- 40 Gallon Vertical Tank
- ASME & CRN certified for reliability & safety
- 1/2" air outlet; 1/4" drain ball valve; rated to 200 PSI
- Smaller footprint than horizontal models frees up shop space
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
TE-5040V
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
23 - 21
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
14
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
40 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
280 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
24 Inches
Product Width
28 Inches
Product Height
54 Inches
Power Type
Electric
UPC
636084028571
Reviews
(42)
Puma TE-5040V Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.62
(42 Ratings)
5
(31)
(31)4(8)
(8)3(2)
(2)2(0)
(0)1(1)
(1)
Quality Machine At The Right Price
By Marc D.
Kentucky
Purchased 06/24/2024 |
Review Posted 07/24/2024
Shopped quite a few places to find what I needed. Finally, landed here and not disappointed. Delivery and packaging were exceptional. Setup was a breeze. Very happy with this purchase, so far.
Marc D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
None
1 Year Review Of Puma 5hp 40 Gallon Compressor
By Will M.
Nebraska
Purchased 06/08/2023 |
Review Posted 06/29/2024
I loved this compressor since day one. No issues other than the plastic and PEX on the bottom drain valve. It leaked and eventually blew out because it had a crack from a factory defect or shipping. I replaced it with stainless and copper. No leaks now and it works just fine. Best piston driven pump compressor I've used which is almost every day and it doesn't miss a beat.
Will M. Recommends This
Was this review helpful?
Rating Breakdown
3/5
5/5
5/5
5/5
Pros:
I39d Buy It Again
Cons:
PEX drain line
Trash
By Carlo V.
Connecticut
Purchased 04/16/2024 |
Review Posted 05/30/2024
Trash! Didn't last a week.
Carlo V. Does Not Recommend This
Was this review helpful?
Expert Response
First and foremost, thank you for your purchase. We are sorry to hear you are having issues with your unit and want to reassure you factory warranties cover defects in materials and workmanship. Our company is required to follow the manufacturer warranty process if there are issues. Puma would need to be contacted directly at (901) 744-7979 to start the warranty process if you have not done so yet. If they are unable to troubleshoot the issue over the phone they have Local Service Centers that can also assist you and apply the warranty for servicing the unit. If their service doesn't meet your expectations, or if there's anything else we can please email us and we will be happy to help. We will forward your review to the manufacturer so they are aware of the situation.
We appreciate your business and apologize for any inconvenience.
We appreciate your business and apologize for any inconvenience.
Dale V.
Power Equipment Expert
Rating Breakdown
1/5
1/5
1/5
1/5
Great Value
By Joseph B.
Ohio
Purchased 12/12/2023 |
Review Posted 01/11/2024
This compressor seems to be high quality so far. Fairly quiet and smooth running. Packaged well for shipping. Glad I picked this compressor.
Joseph B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Well Worth It For The Money
By Paul E.
Alabama
Purchased 11/06/2023 |
Review Posted 12/09/2023
Received in early November extremely well packaged (Kudos to PUMA!!). Compressor appearance is excellent. Easy set-up. Much quieter than previous compressor. I've only had one issue. After five days of use, the start capacitor on the motor went out. I contacted PUMA and was told that they do not carry just the capacitor. So what did they do instead? They sent an entire replacement motor with really no questions asked other than where to send it!!!!! To say I was stunned is an understatement. I am very impressed thus far!!
Paul E. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again, Exceeded Expectations
Great Compressor!
By Michael D
Connecticut
Purchased 08/15/2023 |
Review Posted 09/06/2023
Great air compressor that operates all my air tools. My first compressor got damaged during shipping, but air compressors direct came through and got me a replacement quickly. This is a fantastic compact unit. It talks the talk and walks the walk. I would definitely buy again.
Michael D Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I'd Buy It Again, Quiet
Cons:
None
Checks The Boxes I Needed
By Eric
Iowa
Purchased 06/12/2023 |
Review Posted 07/06/2023
I bought this compressor because I needed a small frame two stage compressor that I could keep in my garage. The compressor is well built and works well. It's pump is fairly quiet compared to a single stage. The only issue was the copper tubing coming from the pump to the tank was pulled off on the tank end( flared fittings).
I've used it on a cnc plasma and I haven't had a single issue with it keeping up with longer cuts or larger batch cuts.
I've used it on a cnc plasma and I haven't had a single issue with it keeping up with longer cuts or larger batch cuts.
Eric Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
I'd Buy It Again, Easy To Store
Cons:
None
PUMA 5 HP Air Compressor
By Ronald B
Pennsylvania
Purchased 04/04/2023 |
Review Posted 05/01/2023
Got this to replace a 40+ year old compressor. So far, I am very happy with this purchase. Relatively quiet and does what it is supposed to do. Overall quality is very good. Hope this one lasts 40+ years as my old one. I'll be 105 by then!
Ronald B Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I'd Buy It Again
Cons:
None
Nice Unit With A Couple Exceptions
By Kurt
New Jersey
Purchased 03/26/2023 |
Review Posted 04/13/2023
The compressor was shipped surrounded by pallets and arrived with no damage. The line running from the compressor to the tank was not done very well where they bent the tube at the flare which I replaced. Also was not thrilled with the plastic drain tube so I replaced it with a brass elbow, 6" nipple and connected a automatic drain valve.Ran the pump no load for 30 min and took about 5min to fill. Overall happy with the experience, shipping was fast.
Kurt Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
5/5
Puma TE-5040V
By Kimo
North Carolina
Review Posted 02/07/2023
The compressor came very well crated and wrapped. The installation went well without any issues. I am pleased that the decibel level was lower than most compressors of its size. The compactness of the compressor and lower decibel level was critical for the size of my shop. The only issue that I have found is that the pressure in the tank drops on its own over a few hours, apparently there is a small leak somewhere. I haven't taken the time to troubleshoot it by spraying some soap solution on the fittings to see where that leak is.
Outside of that I'm happy with the performance and quality of the compressor - the lower decibel level and that it charges up within just a few minutes. I also added a Tsunami auto drain valve to the compressor which works very well. As mentioned by others it takes a bit of plumbing to tie the Tsunami to the compressor. Fortunately the factory installed drain valve is threaded to a fitting on one of the support feet for easy access. Looking forward to years of service from this compressor.
Outside of that I'm happy with the performance and quality of the compressor - the lower decibel level and that it charges up within just a few minutes. I also added a Tsunami auto drain valve to the compressor which works very well. As mentioned by others it takes a bit of plumbing to tie the Tsunami to the compressor. Fortunately the factory installed drain valve is threaded to a fitting on one of the support feet for easy access. Looking forward to years of service from this compressor.
Kimo Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
Pros:
Easy To Use, Easy To Store
Cons:
None
Product Q&A
(5)
Product Questions
Answered by Melissa, the Air Compressor Expert
What is the measurement from the floor to the top of the fan shroud?
Blue
from California
April 03, 2020
What is the decibel rating of this compressor?
Tom
from Idaho
October 11, 2019
What is the amperage of the motor with 208 voltage?
John M.
from Indiana
October 05, 2019
Is this compressor oil-free?
Randy
from Florida
July 31, 2019
Is there a way to install a silencer/muffler on this compressor? I will put some rubber material underneath the feet, which will help.
Thank you in advance for any assistance you can offer.
Hugh
Hugh
from Virginia
April 14, 2016
How-To Articles
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make itsimple. W...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
%20%7C%20Puma%20TE-5040V&p[url]=https%3A%2F%2Fwww.powerequipmentdirect.com%2FPuma-TE-5040V-Air-Compressor%2Fp13941.html&p[summary]=Buy%20the%20Puma%20TE-5040V.%20Factory-direct%20at%20Power%20Equipment%20Direct.%20Also%2C%20read%20the%20latest%20reviews%20for%20the%20Puma%205-HP%2040-Gallon%20Two-Stage%20Air%20Compressor%20(208%2F230V%201-Phase)&p[images][0]=https%3A%2F%2Fwww.powerequipmentdirect.com%2Fproducts-image%2F500%2Fte-5040v_13941_1000_396f56622c1c8478328bd838e971422c.jpg){kind=link}
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

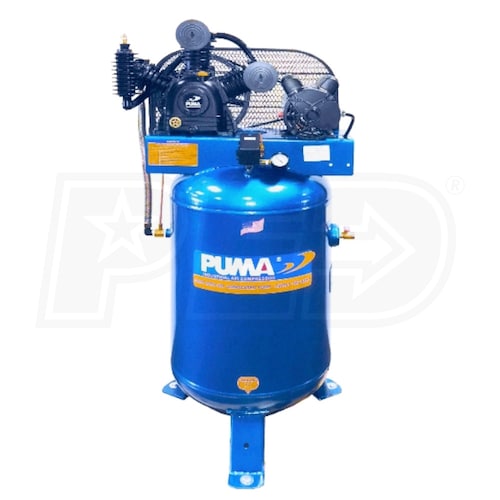

Puma 5-HP 40-Gallon Two-Stage Air Compressor (208/230V 1-Phase)
