Puma TUE-7580VM
Puma TUE-7580VM
Hover to zoom
1 Of 5

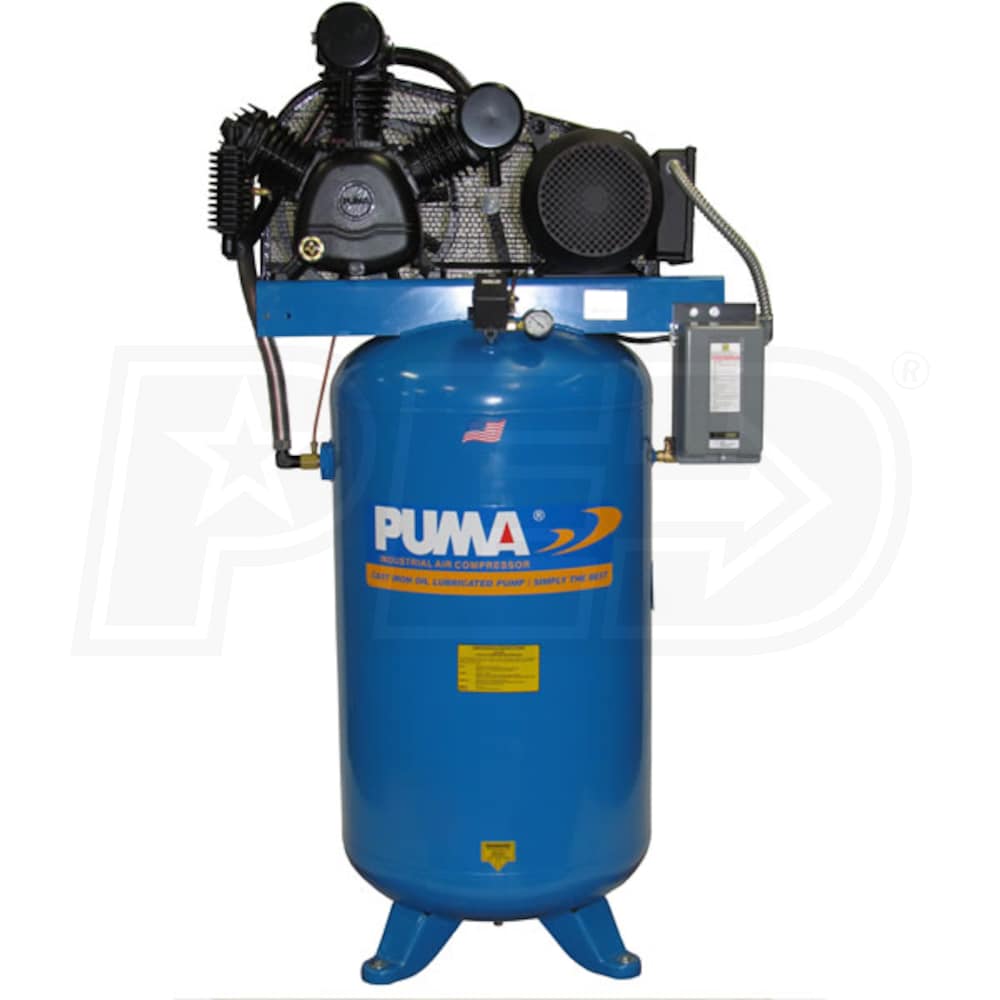

Puma 7.5-HP 80-Gallon (Belt Drive) Two-Stage Air Compressor (230V 1-Phase)

Model:

TUE-7580VM

Write A Review
$2,899.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days

Puma 7.5-HP 80-Gallon (Belt Drive) Two-Stage Air Compressor (230V 1-Phase)
Puma 7.5-HP 80-Gallon (Belt Drive) Two-Stage Air Compressor (230V 1-Phase)
Model: TUE-7580VM
$2,899.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Contractor

Voltage

208-230 Volt AC

Phase

1-Phase

CFM

22

Tank Size

80

  • Heavy Duty Belt Drive Compressor
  • Steady, powerful air can run multiple tools at once
  • Oil Lubricated V-Type Pump
  • Runs cooler, works longer with less vibration
  • Factory Mounted Magnetic Starter
  • Protects your compressor from being overloaded
  • Two-Stage Pump
  • Produces higher CFM more efficiently, with less heat
  • Develops 23 CFM at 40 PSI, 22 CFM at 90 PSI
  • Versatile
  • Excellent choice for commercial & light industrial applications
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

TUE-7580VM
specs product image PID-11118
Motor
Voltage
208-230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
33.3 - 31.3
Recommended Breaker
Consult Certified Electrician
Engine
HP
7.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
600 Pounds
Certification
ASME, CRN
Consumer Warranty
1 Year
Product Length
40 Inches
Product Width
32 Inches
Product Height
75 Inches
Power Type
Electric
UPC
0636084025112
Additional Model Numbers

TUE7580VM, TUE-7580VM
