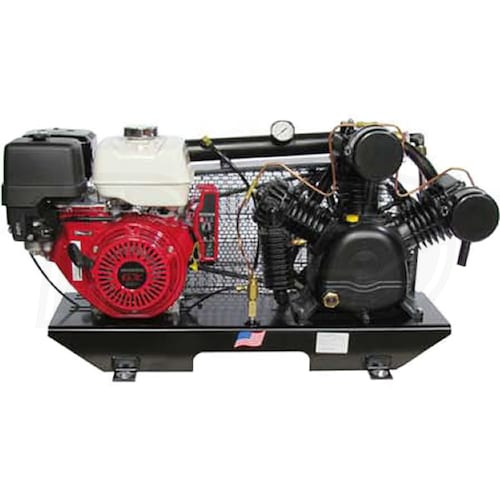

Puma 13-HP Tankless Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
TUK-130HGE
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
23
Tank Size
0
- Tankless Truck-Mount Compressor On A Base Plate
- Add to your own tank or custom set-up
- 13-HP Commercial Grade GX390 Honda Engine
- Smooth running, dependable power with low-oil alert
- Electric Start With Alternator & Recoil Back-Up
- Simple key-start saves your shoulder (battery not included)

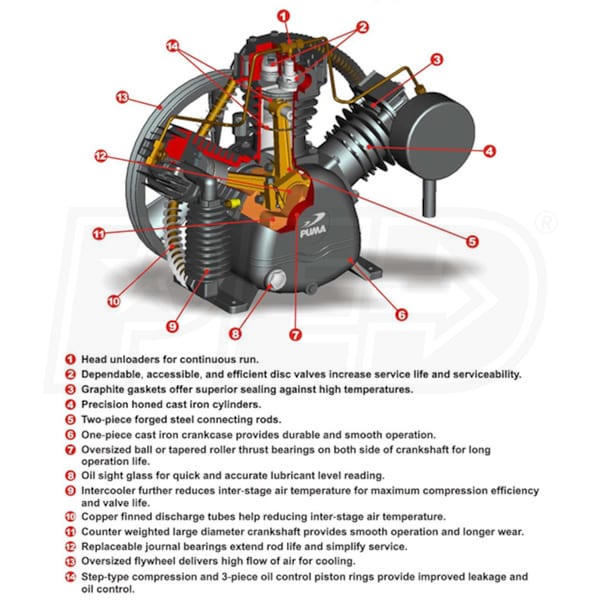

- Cast Iron 2-Stage Pump
- 100% duty cycle takes on the toughest jobs
- 3 cylinder radial configuration for balanced & effective cooling
- 1230 RPM Belt Drive
- Develops 24 CFM at 90 PSI, 23 CFM at 175 PSI; 175 PSI max
- Oversized flywheel delivers high flow for cooling
- Copper Finned Discharge Tubes
- Help reduce inter-stage air temperature for longer pump life
- Graphite Gaskets
- Superior sealing against high temperatures
- Steel Base Plate
- Mounting flanges allow sturdy mounting on your choice of base
- Resists rust & corrosion
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
TUK-130HGE
Engine
HP
13
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
23
CFM Rated @
175 PSI
CFM @ 90 PSI
24
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
0 Gallons
Tank Included
No
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Accessories
Pressure Gauge
No
Air Dryer
No
Overview
Weight
405 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
44.5 Inches
Product Width
17.5 Inches
Product Height
23 Inches
Power Type
Gas
UPC
636084025068
