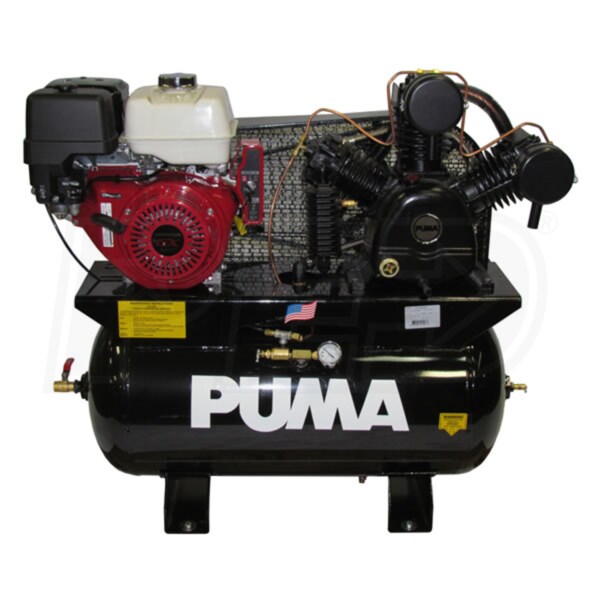

Puma 13-HP 30-Gallon Two-Stage Truck Mount Air Compressor w/ Electric Start Honda Engine
Model:
TUK-13030HGE
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Contractor
Style
Truck Mount
Engine Brand
Honda GX
CFM
24
Tank Size
30
- Truck-Mount Compressor
- Delivers long lasting, reliable performance
- 13-HP Commercial Grade GX390 Honda Engine
- Smooth running, dependable power with low-oil alert
- Electric Start With Alternator & Recoil Back-Up
- Simple key-start saves your shoulder (battery not included)
- Cast Iron 2-Stage Pump
- 100% duty cycle takes on the toughest jobs
- 3 cylinder radial configuration for balanced & effective cooling
- 1230 RPM Belt Drive
- Develops 24 CFM at 90 PSI, 23 CFM at 175 PSI; 175 PSI max
- Oversized flywheel delivers high flow for cooling
- Copper Finned Discharge Tubes
- Help reduce inter-stage air temperature for longer pump life
- Graphite Gaskets
- Superior sealing against high temperatures
- 30 Gallon Receiver
- ASME certified for your safety
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
TUK-13030HGE
Engine
HP
13
Auto Idle
No
Engine Brand
Honda GX
Starting System
12-Volt Key Start w/ Recoil
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
24
CFM Rated @
90 PSI
Pump Material
Solid Cast Iron
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Tank
Tank Size
30 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Weight
481 Pounds
Certification
ASME
Consumer Warranty
1 Year
Product Length
46 Inches
Product Width
24 Inches
Product Height
44 Inches
Power Type
Gas
UPC
0636084025273
Additional Model Numbers
TUK13030HGE, TUK-13030HGE
