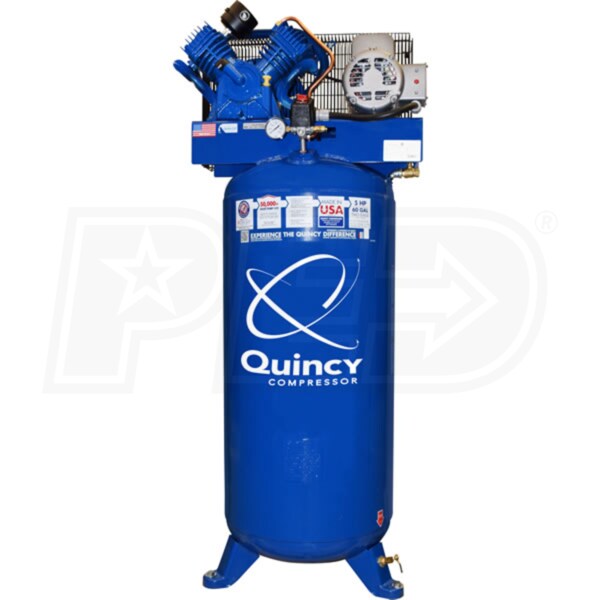

Quincy QT-54 Pro 5-HP 60-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model:
2V41C60VC
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
15.2
Tank Size
60
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
- Engineered for efficiency and lower operating costs
- Produces more compressed air at a lower horsepower
- Runs at a slower RPM, runs cooler and cost less to operate
- High Performance Cast Iron QT-54 Belt Drive Pump
- Industry-leading 50,000+ hour pump life
- Aluminum head for strength and optimum heat dissipation
- Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
- 4-Cylinder Cast-Iron Design
- Cast-iron cylinders maintain rigid tolerances for high efficiency
- Industrial-class bearings ensure extended piston life
- Graphite cylinder and head gaskets for positive sealing and improved performance
- High-Efficiency Finned Tube Intercooler
- Provides maximum cooling & increased valve life
- Eliminates carbon build up in the head and increases valve life
- 2-piece connecting rods for less moving parts & minimized downtime
- Low Oil Pump Temperature Protection
- Extra-capacity oil reservoir assures low oil temperature
- Cast-iron construction for dependability
- Large Balanced Cast Iron Fly Wheel
- Smoother operation, angled for maximum cooling
- Offers better energy efficiency and durability
- Balanced counter-weighted crankshaft assures smooth, trouble-free operation
- Heavy-Duty Industrial Motor
- Capacitor start motor with built-in thermal overload
- UL & CSA approval on all electrical components
- 60-Gallon ASME Certified Air Tank & Pressure Relief Valves
- Manual drain for routine draining and rust prevention
- Vertical tank saves space, provides easy access
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
- Must Include purchase of EWK-2 Maintenance Kit at time of purchase
- Unit must be registered at www.quincycompressor.com
- Download the Warranty page under the Manual tab for details
- Extended warranty includes on-site and labor service
- All installation must be performed by a qualified technician or electrician; Power cord not included
- Quincy Part #: 2020039800 Quincy Model #: 2V41C60VC
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
2V41C60VC
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
No
Amp Draw
24
Recommended Breaker
50 Amp Breaker
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.2
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
No
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Vertical
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
475 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
29 Inches
Product Width
21 Inches
Product Height
70 Inches
Power Type
Electric
UPC
791326101846
Reviews
(496)
Quincy 2V41C60VC Reviews & Ratings
Product Q&A
(10)
Product Questions
Answered by Melissa, the Air Compressor Expert
What are the hole sizes on the three legs?
Randy
from Texas
December 02, 2020
Do you know what the CFM would be at 90 PSI?
Justin J.
from Massachusetts
March 26, 2020
What gauge wire is recommended for installation?
Patricia Z.
from Wisconsin
February 11, 2020
Does this compressor have to be hard-wired or can it be plugged into a 220-volt plug?
Chris
from Texas
January 22, 2020
How quiet is this compressor?
Kathy L.
from Nebraska
July 06, 2019
What are the factory set cut in and cut out pressures for the pressure switch?
Michael W.
from Illinois
November 26, 2018
Is the air compressor pressure vessel ASME Code stamped?
Mark M.
from Massachusetts
July 24, 2018
How do I disconnect the air compressor safely from the power supply?
Michelle
from New York
May 03, 2018
We have 208 volt single phase wiring in our shop -- the result of splitting 3-phase wiring. Will the 230 v. 5hp Quincy motors run properly on this voltage? Are the motors provided by Quincy single wound or double wound?
Marvin Fretwell
from Arizona
February 05, 2013
What all is provided with the unit to get it up and running on arrival?
Terry
from Iowa
October 31, 2011
