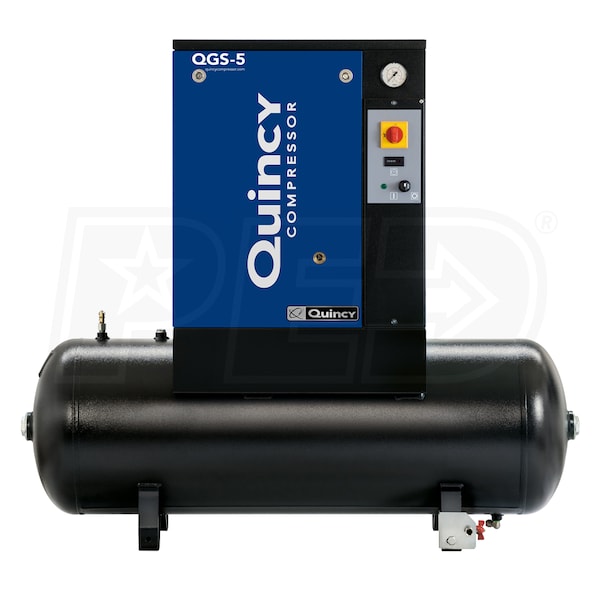

Quincy QGS 5-HP 60-Gallon Rotary Screw Air Compressor (230V 1-Phase)

Model:

4152005428-WOC

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Quincy QGS 5-HP 60-Gallon Rotary Screw Air Compressor (230V 1-Phase)
Quincy QGS 5-HP 60-Gallon Rotary Screw Air Compressor (230V 1-Phase)
Model: 4152005428-WOC
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

15.6

Tank Size

60



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • Superior Compressed Air Performance
  • Oil injected twin screw pump provides reliable, quiet power
  • Compact, Modern Turn-Key Design
  • Small footprint allows for installation flexibility
  • Continuous 100% Duty Cycle
  • Runs your application efficiently 24/7
  • Standard Quiet Enclosure
  • Runs without the vibration & noise of piston compressors
  • Ideal for most applications; 15.6 CFM at 150 PSI
  • 62 dBA for reduced sound fatigue in work area installations
  • Premium Synthetic Lubrication
  • Rated for 8,000 hours; low oil carryover protects tools
  • Start/Stop Operation
  • UL and cUL control panel compliant; 36°F minimum temperature
  • Long Life V-Belt Drive
  • Less maintenance, reliable operation
  • TEFC Electric Motor
  • 1-phase unit runs on 230V power (IP 55 wash down)
  • Extended 3 Year Factory Warranty Available
  • Must register with Quincy & use Quincy Maintenance Kits
  • True Blue 5-Year Warranty with Quincy Authorized Start Up
  • Covers airend, motor, separator reservoir, cooler/heat exchanger
  • Quincy Part #: 4152005428 - Quincy Model #: QGS 5 HP-1
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

4152005428-WOC
specs product image PID-123535
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
dBA Learn More
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
62
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Engine Low Oil Shut-off
Yes
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.6
CFM Rated @
150 PSI
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
60 Gallons
Tank Outlet
1/2 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
465 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
23 Inches
Product Height
51 Inches
Power Type
Electric
