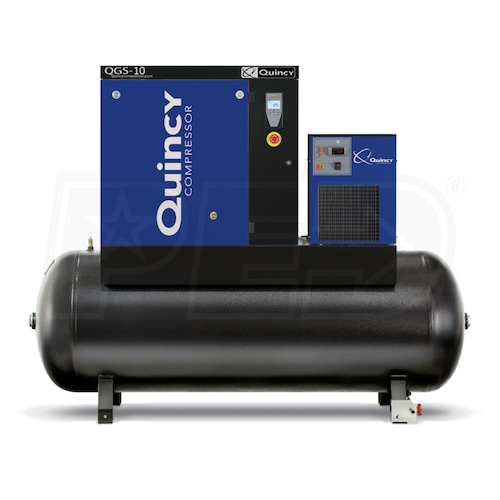

Quincy QGS 10-HP 120-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model:
4152021980
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
6
$397.00
Factory-Direct
$2,399.99
Factory-Direct
$169.00
Factory-Direct
Model: TRI-GD-3046RS-GL
$95.00
Factory-Direct
Model: TRI-GD-4046RS-GL
$108.00
Factory-Direct
$379.00
Factory-Direct
Features
Grade
Commercial
Voltage
208-230/460 Volt AC
Phase
3-Phase
CFM
38.8
Tank Size
120
Quincy QGS 10-HP 120-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Superior Compressed Air Turn-Key Performance
- Oil injected twin screw pump provides reliable, quiet power
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 38.8 CFM at 125 PSI
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Auto-Dual Operation
- Customize timed shut down settings for your operation
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 3-phase unit is capable of running on 208/230-460 voltage; must be wired on-site by licensed electrician
- (IP 55 wash down) Minimum operating temperature 36°F
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152021980 - Quincy Model #: QGS 15 HPD-3
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
4152021980
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
65
Amp Draw
Consult Certified Electrician
Recommended Breaker
Consult Certified Electrician
Engine
HP
10
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
38.8
CFM Rated @
125 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
125 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
120 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
850 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
76 Inches
Product Width
25 Inches
Product Height
58 Inches
Power Type
Electric
UPC
791326011855
Reviews
(2)
Quincy 4152021980 Reviews & Ratings
Like the rest of Quincy's QGS line, this world leading rotary screw compressor features oil-injected twin screw pump for quiet, reliable power. Ideal for most applications, this unit has a high-efficiency intake filter and integrated refrigerated air dryer providing clean, dry air through your system. With its small footprint, it allows for installation flexibility. The quiet enclosure reduces the elevated vibrations and sound levels normally associated with a piston compressor.
This unit features 39.6 CFM at 125 PSI. Quincy rotary compressors use a premium synthetic lubrication rated for 8,000 hours. This unit also features a low oil shutdown for tool protection. The TEFC electric motor can run on 208/230-460 voltage, operates at a minimum of 36°F and has a protection level of IP 55 wash down. The V-Belt drive provides a longer life making it a more reliable operation and involves less maintenance. Full electronic controls allow flexibility and easy operation. Auto-dual controls ensure that your QGS delivers efficient air only when you demand it.
This unit features 39.6 CFM at 125 PSI. Quincy rotary compressors use a premium synthetic lubrication rated for 8,000 hours. This unit also features a low oil shutdown for tool protection. The TEFC electric motor can run on 208/230-460 voltage, operates at a minimum of 36°F and has a protection level of IP 55 wash down. The V-Belt drive provides a longer life making it a more reliable operation and involves less maintenance. Full electronic controls allow flexibility and easy operation. Auto-dual controls ensure that your QGS delivers efficient air only when you demand it.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Good Compressor
By Thomas S.
Glenwood, Minnesota
Purchased 03/24/2021 |
Review Posted 04/14/2021
Would recommend an auto tank drain.
Thomas S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Durable, Quiet, Price, High Quality
Product Q&A
(1)
Product Questions
Answered by Melissa, the Air Compressor Expert
How many amps does this take?
Rene
from Iowa
July 26, 2018
