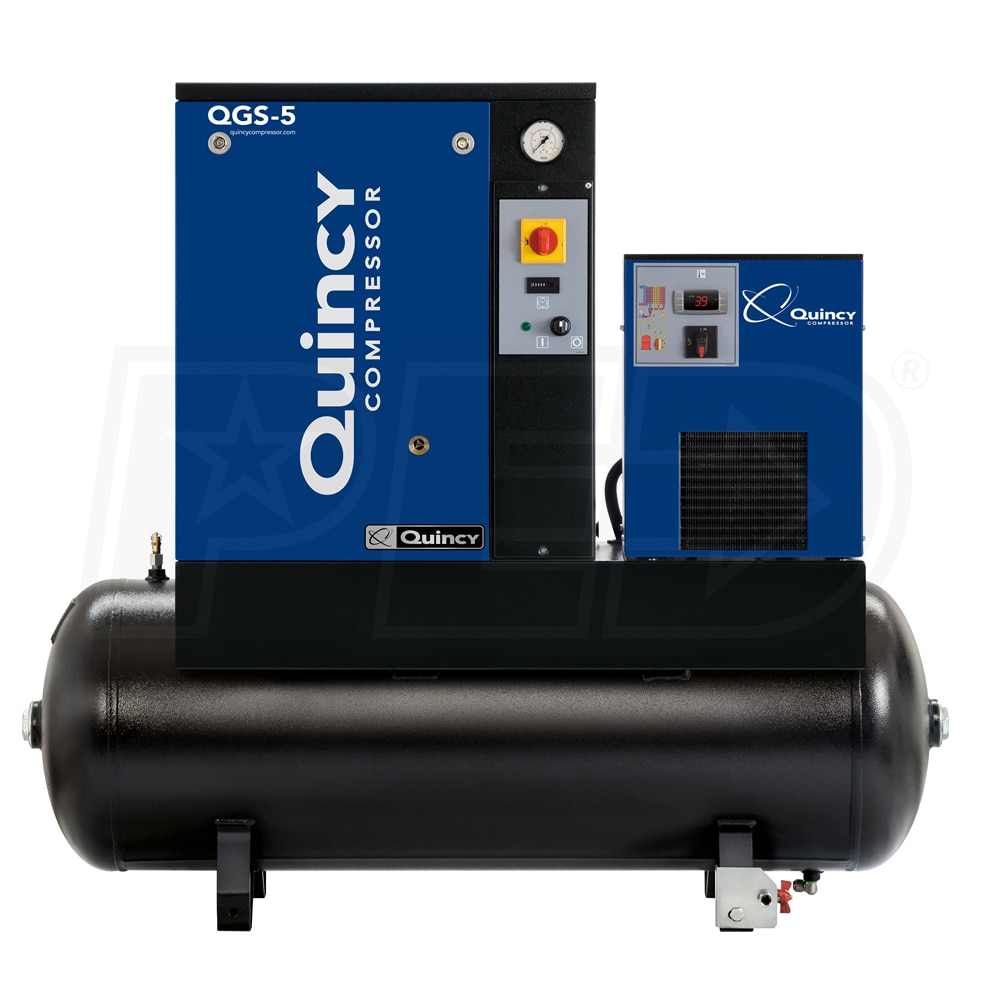

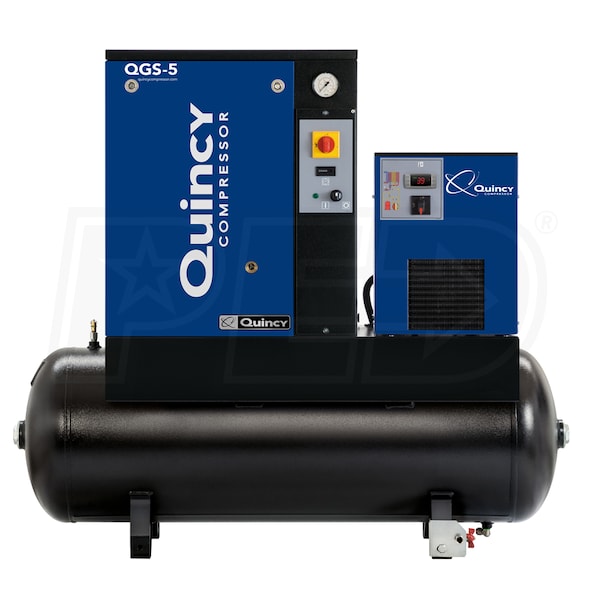

Quincy QGS 5-HP 60-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Model:
4152051914
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Optional Accessories
7
$287.00
Factory-Direct
$287.00
Factory-Direct
Model: DXCM024-0343
$170.99
Factory-Direct
$169.00
Factory-Direct
Model: TRI-GD-3046RS-GL
$95.00
Factory-Direct
Model: TRI-GD-4046RS-GL
$108.00
Factory-Direct
$413.00
Factory-Direct
Features
Grade
Commercial
Voltage
208-230/460 Volt AC
Phase
3-Phase
CFM
15.6
Tank Size
60
Quincy QGS 5-HP 60-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Superior Compressed Air Turn-Key Performance
- Oil injected twin screw pump provides reliable, quiet power
- Integrated Refrigerated Air Dryer
- Condenses the air to remove airborne moisture, dirt, and oil
- Continuous 100% Duty Cycle
- Runs your application efficiently 24/7
- Standard Quiet Enclosure
- Runs without the vibration & noise of piston compressors
- Ideal for most applications; 15.6 CFM at 150 PSI
- 62 dBA for reduced sound fatigue in work area installations
- Premium Synthetic Lubrication
- Rated for 8,000 hours; low oil carryover protects tools
- Start/Stop Operation
- UL and cUL control panel compliant; 36°F minimum temperature
- Long Life V-Belt Drive
- Less maintenance, reliable operation
- TEFC Electric Motor
- 3-phase unit runs on 200,208/230 or 460V power (IP 55 wash down); must be wired on-site by a licensed electrician
- Extended 3 Year Factory Warranty Available
- Must register with Quincy & use Quincy Maintenance Kits
- True Blue 5-Year Warranty with Quincy Authorized Start Up
- Covers airend, motor, separator reservoir, cooler/heat exchanger
- Quincy Part #: 4152005424 - Quincy Model #: QGS 5 HPD 3
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
4152051914
General Information
Product Category
Air Compressor - Stationary
Engine
HP
5
Engine Low Oil Shut-off
Yes
Motor
Voltage
208-230/460 Volt AC
Phase
3-Phase
dBA
dBA
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
62
Amp Draw
28
Recommended Breaker
60 Amp Breaker
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
15.6
CFM Rated @
150 PSI
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
150 PSI
Oil Sight Glass
Yes
Pump Type
Rotary
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Duty Cycle
100%
Tank
Tank Size
60 Gallons
Tank Included
Yes
Tank Outlet
1/2 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
Yes
Air Filter
Yes
Overview
Product Category
Air Compressor - Stationary
Weight
543 Pounds
Certification
ASME
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
56 Inches
Product Width
23 Inches
Product Height
51 Inches
Power Type
Electric
UPC
791326011572
Additional Model Numbers
4152002717, 4152051914
Reviews
(1)
Quincy 4152051914 Reviews & Ratings
Quincy QGS 5-HP 60-Gallon Rotary Screw Compressor w/ Dryer (200/208/230/460V 3-Phase) The Quincy QGS 5-HP 60-Gallon rotary screw compressor with built-in Dryer features a continuous 100% duty cycle and operates at extremely quiet sound levels at 62 dB(A) without the high vibration. They are engineered for small to medium-sized applications ranging from paint booths and component assembly to high demand long-running industrial installations.
A small footprint and lower noise level offer increased installation flexibility, making the QGS ideal for most applications. The compressor features an integrated refrigerated air dryer to purify compressed air by cooling it to condense and remove moisture, airborne dirt and oil giving it a longer lifespan. This unit comes equipped with a TEFC electric motor, V-belt drive, oil-injected twin screw pump, standard quiet enclosure, 8,000-hr. premium synthetic fluid, ASME certified receiver tank and more.
We select the Quincy QGS 5 HPD-3 60-Gallon rotary due to offering superior compressed air performance in compact, modern, and quiet design. These turnkey units are the perfect solution for small footprint, quiet operations that require clean, dry compressed air.
A small footprint and lower noise level offer increased installation flexibility, making the QGS ideal for most applications. The compressor features an integrated refrigerated air dryer to purify compressed air by cooling it to condense and remove moisture, airborne dirt and oil giving it a longer lifespan. This unit comes equipped with a TEFC electric motor, V-belt drive, oil-injected twin screw pump, standard quiet enclosure, 8,000-hr. premium synthetic fluid, ASME certified receiver tank and more.
We select the Quincy QGS 5 HPD-3 60-Gallon rotary due to offering superior compressed air performance in compact, modern, and quiet design. These turnkey units are the perfect solution for small footprint, quiet operations that require clean, dry compressed air.
