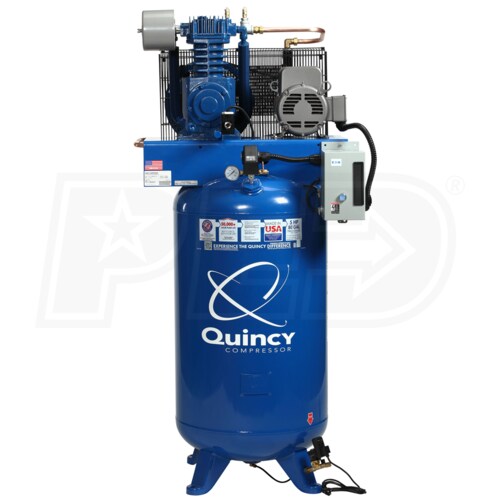

Quincy QT MAX 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model:
453D80VCB20M
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208 Volt AC
Phase
3-Phase
CFM
17.2
Tank Size
80
- Heavy Duty Industrial Unit - Proudly Built in the US
- 50,000 hour-or more- pump life; 5 year pump warranty
- Splash lubricated, cast-iron pump for dependability
- Industrial motor to continuously run your business
- Extra capacity oil reserve & low oil protection
- High-Efficiency Finned Intercooler
- Reduces air temperature for maximum performance
- Magnetic Starter
- Provides thermal overload protection for the motor
- 2-Piece Connection Rods
- Fewer moving parts increases reliability
- ASME Certified Air Tank
- Pressure relief valve, discharge and receiver tank for safety
- Automatic Tank Drain
- Less maintenance and prolongs tank life
- Air-Cooled Aftercooler
- Allows use with a refrigerated air dryer (sold separately)
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
- Must Include purchase of EWK-3 Maintenance Kit at time of purchase
- Download the Warranty page under the Manual tab for details
- Quincy Part #: 2020039823 - Quincy Model #: 253D80VCB20M
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
453D80VCB20M
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
17.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17.2
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
680 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
Additional Model Numbers
253D80VCB20M, 453D80VCB20M
