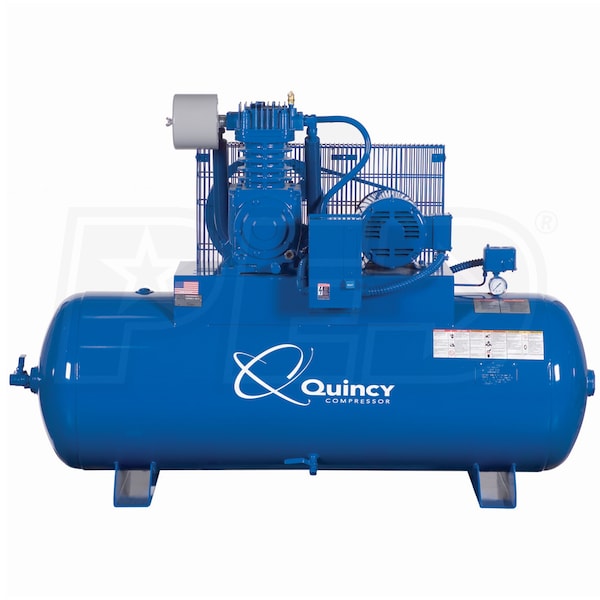

Quincy QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)
Model:
453DS80HCB20
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Grade
Commercial
Voltage
208 Volt AC
Phase
3-Phase
CFM
17.2
Tank Size
80

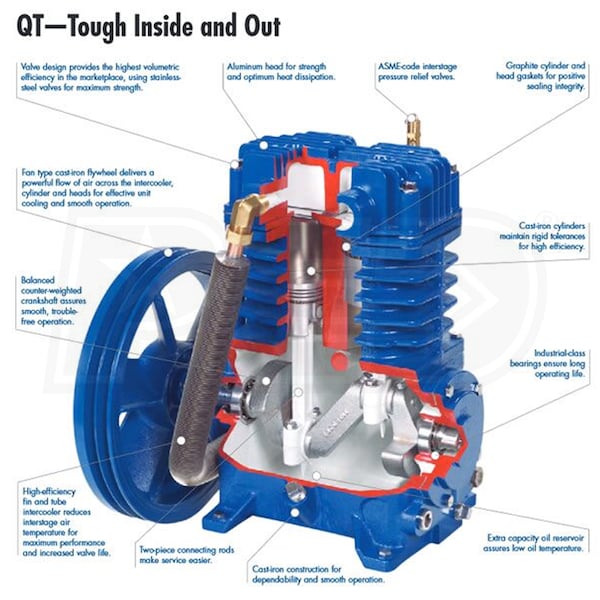

- Heavy Duty QT-5 Industrial Pump
- 50,000 hours or more pump life
- Splash lubricated, cast-iron 2-cylinder pump for dependability
- Extra capacity oil reserve
- ODP Slow-Speed Motor
- 942 RPM industrial motor to continuously run your business
- High-Efficiency Finned Intercooler
- Reduces air temperature for maximum performance
- 2-Piece Connection Rods
- Fewer moving parts increase reliability
- ASME Coded 80 Gallon Tank
- Pressure relief valve, discharge & receiver tank for your safety
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
- Must Include purchase of EWK-3 Maintenance Kit at time of purchase
- Unit must be registered at www.quincycompressor.com
- Download the Warranty page under the Manual tab for details
- Extended warranty includes on-site and labor service
- Quincy Part #: 2020013308 Quincy Model #: 253DS80HCB20
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
453DS80HCB20
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
208 Volt AC
Phase
3-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
17.5
Recommended Breaker
Consult Certified Electrician
Engine
HP
5
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
17.2
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
660 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
UPC
791326113818
Additional Model Numbers
253DS80HCB20, 453DS80HCB20
