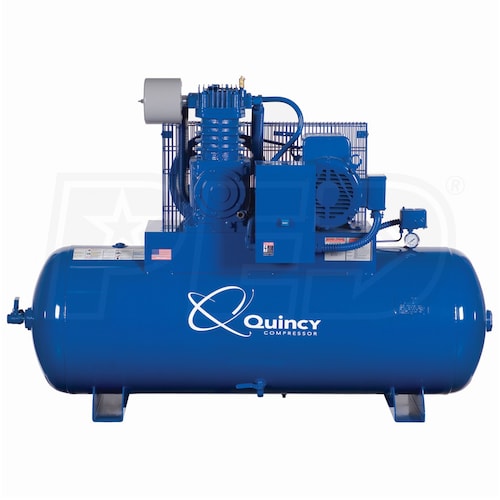

Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

Model:

471CS80HCB

Write A Review
$4,099.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
This Item Is Built To Order

Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Quincy QT Pro 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model: 471CS80HCB
$4,099.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Power Equipment Direct expert image
Expert Recommended Accessories Selected by Melissa, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Grade

Commercial

Voltage

230 Volt AC

Phase

1-Phase

CFM

22.6

Tank Size

80

  • 100% Duty Cycle Splash Lubricated Two-Stage Air Compressor
  • Engineered for efficiency and lower operating costs
  • Produces more compressed air at a lower horsepower
  • American Pride; Proudly built in U.S.A.
  • High Performance Cast Iron QT-7.5 Belt Drive Pump
  • Industry-leading 50,000+ hour pump life
  • Aluminum head for strength and optimum heat dissipation
  • Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency
  • 2-Cylinder Cast-Iron Design
  • Cast-iron cylinders maintain rigid tolerances for high efficiency
  • Industrial-class bearings ensure extended piston life
  • Graphite cylinder and head gaskets for positive sealing and improved performance
  • Large Balanced Cast Iron Fly Wheel
  • Smoother operation, angled for maximum cooling
  • Offers better energy efficiency and durability
  • Balanced counter-weighted crankshaft assures smooth, trouble-free operation
  • High-Efficiency Finned Tube Intercooler
  • Provides maximum cooling & increased valve life
  • Eliminates carbon build up in the head and increases valve life
  • 2-piece connecting rods for less moving parts & minimized downtime
  • Heavy-Duty Industrial Motor
  • Capacitor start motor with built-in thermal overload
  • Runs at a slower RPM, runs cooler and cost less to operate
  • UL & CSA approval on all electrical components
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
  • Must Include purchase of EWK-3 Maintenance Kit at time of purchase
  • Unit must be registered at www.quincycompressor.com
  • Download the Warranty page under the Manual tab for details
  • Extended warranty includes on-site and labor service
  • Quincy Part #: 2020013707 - Quincy Model #: 271CS80HCB23
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

471CS80HCB
specs product image PID-104194
General Information
Product Category
Air Compressor - Stationary
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter Learn More
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
80 Amp Breaker
Engine
HP
7.5
Pump
CFM Learn More
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22.6
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI Learn More
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler Learn More
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off Learn More
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve Learn More
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
740 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
70 Inches
Product Width
23 Inches
Product Height
47 Inches
Power Type
Electric
UPC
791326111937
Additional Model Numbers

271CS80HCB23, 471CS80HCB
