Quincy QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Model:
471CS80VCBM
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Melissa, our Expert
Required Accessories
1
These accessories are required to properly setup/install this product.
Quincy Maintenance Kit For QT Splash-Lubricated 5-HP & 7.5-HP Electric & Gas Powered Air Compressors
Model: EWK-3
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quantity
$299.99
Only 4 In-Stock
Optional Accessories
4
$86.00
In-Stock
$1,649.99
In-Stock
Model: DXCM024-0400
$209.00
Factory-Direct
Model: QMF-25
$283.00
Factory-Direct
Features
Grade
Commercial
Voltage
230 Volt AC
Phase
1-Phase
CFM
22.6
Tank Size
80
Quincy QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Heavy Duty Industrial Components
- 50,000 hour -or more- pump life; 5 year pump warranty
- 1725 rpm industrial motor to continuously run your business
- Special Low Oil Protection & Extra Capacity Oil Reserve
- Extends the life of the splash lubricated, cast-iron pump
- High-Efficiency Finned Intercooler
- Reduces air temperature for maximum performance
- Magnetic Starter
- Provides thermal overload protection for the motor
- 2-Piece Connection Rods
- Fewer moving parts increases reliability
- ASME Certified; Proudly Built In The USA
- Pressure relief valve, discharge and receiver tank for safety
- Automatic Tank Drain & Air-Cooled Aftercooler
- Less maintenance and prolongs tank life
- Allows use with a refrigerated air dryer (sold separately)
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
- Must Include purchase of EWK-3 Maintenance Kit at time of purchase
- Download the Warranty page under the Manual tab for details
- Extended warranty includes on-site and labor service
- Quincy Part #: 2020039827 - Quincy Model #: 271C80VCB23M
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
471CS80VCBM
General Information
Product Category
Air Compressor - Stationary
Engine
HP
7.5
Motor
Voltage
230 Volt AC
Phase
1-Phase
Magnetic Starter
Magnetic Starter
The Magnetic Starter is the "thinking cap" for the motor of the air compressor. Magnetic starters are electromagnetically operated switches that provide a safe method for certain motors to be started under a large motor load.
Yes
Amp Draw
40
Recommended Breaker
Consult Certified Electrician
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
22.6
CFM Rated @
175 PSI
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
175 PSI
Oil Sight Glass
Yes
Pump Type
Two-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
Yes
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
Yes
Tank
Tank Size
80 Gallons
Tank Outlet
3/4 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
Yes
Tank Orientation
Vertical
Accessories
Air Dryer
No
Overview
Product Category
Air Compressor - Stationary
Weight
720 Pounds
Certification
ASME. UL, CSA
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
37 Inches
Product Width
24 Inches
Product Height
74 Inches
Power Type
Electric
UPC
791326114501
Additional Model Numbers
271C80VCBM, 471CS80VCBM
Reviews
(16)
Quincy 471CS80VCBM Reviews & Ratings
Customer Photos and Videos
Customer Rating
4.44
(16 Ratings)
5
(11)
(11)4(3)
(3)3(1)
(1)2(0)
(0)1(1)
(1)
Well Built
By Carl T
New York
Purchased 04/20/2023 |
Review Posted 06/09/2023
The unit arrived in good condition, only issue was one of the fittings was leaking and had to tighten, so far it's been a few weeks since installation, and no other issues.
Carl T Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
4/5
Pros:
Easy To Use, I'd Buy It Again
Cons:
Expensive
QT Max7.5
By Matt S.
Fowlerville, Michigan
Purchased 12/16/2020 |
Review Posted 01/12/2021
Nice unit. Very well made. Just purchased so time will tell on durability? Unit is quiet and performs as expected. Would recommend
Matt S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
5/5
4/5
Pros:
High Quality, Quiet, Reliable, Fast
Heads Up!!!
By Greg N.
Walton, Kentucky
Review Posted 01/23/2020
I have wanted a Quincy for 20 years and finally got one. It’s a great compressor don’t get me wrong, but I do have a complaint and this review is strictly to help my fellow air compressor purchasers from making the same mistake that I did, with mine. I’m a very handy fellow who knows how things work and don’t always need or read instructions. Long and short of it my compressor is now 2 years old and has been great until the pop-off valve in the head starting going crazy. I call Quincy and service guy says the head gaskets are shot and needs new ones. He asked if I re-torqued the head twice a year. I said no.... he said well you have to. Now I’m a bit torn on this subject and again I take full responsibility for my problem..........BUT It was my understanding that Quincy was the baddest air pump on the planet and they ran forever, which is why I purchased one...Right??? All my buddies with Ingersol Rands have never torqued their heads and not had any issues. So just be aware and follow the instructions so your not waiting 2 weeks and counting on head gaskets for your Quincy, like me. I would like to think they could solve this issue at the manufacturer and it never develops. We don’t re-torque aluminum heads on our daily drivers twice a year...but what do I know. God bless!!!
Greg N. Recommends This
Was this review helpful?
Rating Breakdown
4/5
3/5
3/5
4/5
Pros:
High Quality, Id Buy It Again
Cons:
Expensive
Leaks Right Out Of The Box.
By Tomislav M.
Warren, Vermont
Purchased 10/29/2018 |
Review Posted 03/21/2019
Hooked up the electrical supply today, ran the motor with no load for one hour per the manual, then closed the dump valve and pressurized it. At 175 PSI the motor kicks off as advertised, but there's a loud hissing sound. The large 2" plug that the pressure sensor taps into has a serious leak. Do they not do any QA at the factory?
SO GLAD I bought a premium-priced product and not some cheap foreign junk! I live in VT, but the nearest service centers are in CT and NY. Nice.
SO GLAD I bought a premium-priced product and not some cheap foreign junk! I live in VT, but the nearest service centers are in CT and NY. Nice.
Tomislav M. Does Not Recommend This
Was this review helpful?
Rating Breakdown
4/5
2/5
2/5
3/5
Pros:
Features
Cons:
Expensive, Low Quality
Great Compressor
By Robert D.
Tallassee, Alabama
Purchased 12/20/2018 |
Review Posted 02/20/2019
The Quincy Max 7.5 HP is a great compressor. I have researched for a couple of years and waited until I had a legitimate shop to purchase this unit. The Max comes with the cooler unit, which makes checking belt tension an issue, but really works great and the outlet valve on the tank stays cool to the touch. There are lots of ways to deal with the hot air, but I am impressed with the integrated system. I have not used the automatic drain valve yet, because I don't have a handy 120v outlet. I followed the break-in instructions and actually got more turn on the head bolts than I expected to get, so I would not skip the break-in procedures.
Puts out lots of air and seems to be able to keep up with anything I will do.
Overall, I was very satisfied.
Puts out lots of air and seems to be able to keep up with anything I will do.
Overall, I was very satisfied.
Robert D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Reliable, I'd Buy It Again
Does Ok When Finally Got To Work
By James S.
Gnadenhutten, Ohio
Purchased 09/17/2018 |
Review Posted 10/10/2018
Received this air compressor in a very timely manner. Installed it and started it. It ran one cycle and tripped the reset on the magnetic starter. Had an electrician review the wiring and all looked good. Started it and did the same thing. I called Quincy and of course, they were going to call me right back. THAT DID NOT HAPPEN. I run a truck garage and we can't be without air in the shop so I searched the internet and after watching lots of videos(as in hours worth) I stumbled upon what the problem was. It is an adjustable reset and it was set to pop if the motor drew over 24 amps. It is a 7.5 hp motor. Of course, it will draw over that. There is an adjustment on the reset and I set it at 40 amps and that seems to have fixed the problem. I bought Quincy because it was made in the U S. It would be nice if they would have at least called me back and pretended to care. Now I have it working and it seems to be fine. Not sure if the next one will say Quincy on the side of it or not. Hopefully, it will be a while before I have to decide about that though.
James S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
3/5
4/5
Pros:
Price
Cons:
Difficult To Use, Bad Instructions
Top Quality Compressor
By Heath M.
Hanson, Kentucky
Purchased 12/26/2017 |
Review Posted 02/05/2018
Very smooth running and quiet compressor. Seems to be very well built, I could not be happier that I chose a Quincy.
Heath M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Quiet, Features, Price
Cons:
Shipping company was terrible. Took them two weeks to deliver
Powerful, Keeps Up With Sandblaster, Quick Customer Service/Tech
By Joe S.
Monroe, Georgia
Purchased 07/19/2017 |
Review Posted 08/09/2017
After figuring out how to get it off the pallet and bolting in a level place, the unit kept tripping off on its own overload. After contacting customer support, I received a quick reply call. The motor overload was set too low from Quincy. Once support informed me how to dial it in correctly, the unit ran perfectly and had no problem keeping up with my 19 CFM @ 90 psi demand for over an hour without running continuously.
Another issue was the wire coming from the low oil sensor was laying out disconnected. Not sure how that can be or how it was tested but a tech answered the phone and instructed me on where the wire goes so all is well.
Also, I can stand right next to the unit running and can barely notice it running by any vibration in the floor. Very well balanced.
So thankful for good quality service.
Another issue was the wire coming from the low oil sensor was laying out disconnected. Not sure how that can be or how it was tested but a tech answered the phone and instructed me on where the wire goes so all is well.
Also, I can stand right next to the unit running and can barely notice it running by any vibration in the floor. Very well balanced.
So thankful for good quality service.
Joe S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
High Quality, Reliable, Easy To Use, Exceeded Expectations
Cons:
Needs Better Checklist
Outstanding American Product
By Gregory D.
California
Purchased 04/02/2017 |
Review Posted 05/01/2017
Very happy with this purchase. A bit pricey but work the extra cost after experiencing the performance. This beast is HEAVY so be prepared.
Gregory D. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
High Quality, Quiet, I'd Buy It Again
Cons:
Heavy
Very Well Built, Strong & Surprisingly Quiet Machine
By David B.
Claremore, Oklahoma
Purchased 03/17/2017 |
Review Posted 04/10/2017
This compressor has more than enough power and CFM to keep our machine shop running full speed. This 220 has a much lower amperage draw than the compressor we pulled out of here.
Great machine.
Great machine.
David B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
High Quality, Quiet, Reliable, Fast
Cons:
Expensive
How-To Articles
How to Audit Your Compressed Air System
Let's face it, energy isn't cheap and finding ways to cut energy costs is criti...
How to Pick the Perfect Air Compressor
Too much talk about air compressors can get complicated. Let's make itsimple. W...
Power Equipment How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
%20%7C%20Quincy%20471CS80VCBM&p[url]=https%3A%2F%2Fwww.powerequipmentdirect.com%2FQuincy-471CS80VCBM-Air-Compressor%2Fp3347.html&p[summary]=Buy%20the%20Quincy%20471CS80VCBM.%20Factory-direct%20at%20Power%20Equipment%20Direct.%20Also%2C%20read%20the%20latest%20reviews%20for%20the%20Quincy%20QT%20MAX%207.5-HP%2080-Gallon%20Two-Stage%20Air%20Compressor%20(230V%201-Phase)&p[images][0]=https%3A%2F%2Fwww.powerequipmentdirect.com%2Fproducts-image%2F500%2F271c80vcbm_3347_1000_589cc2ba85e3a642e8188f4236aab392.png){kind=link}
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery
Quincy QT MAX 7.5-HP 80-Gallon Two-Stage Air Compressor (230V 1-Phase)

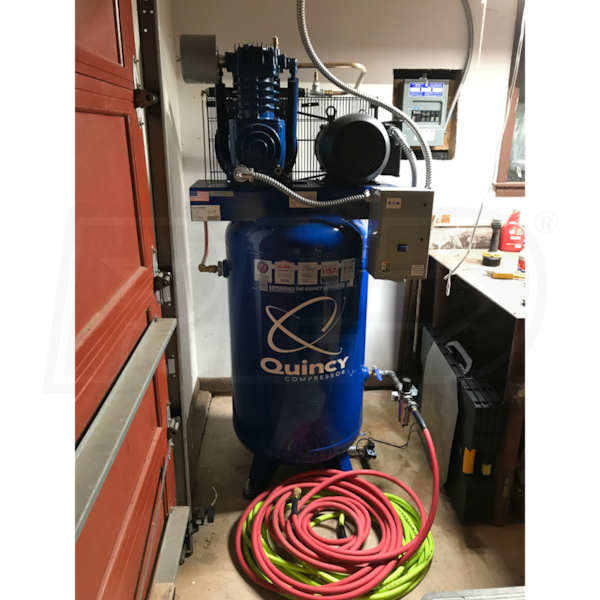

Customer Review Images
