Features
Grade
Contractor
Style
Wheel Barrow
Engine Brand
Honda GX
CFM
9.5
Tank Size
8
- Long-lasting Contractor Wheelbarrow Compressor
- Engineered for near effortless portability, with superb balance and sturdy handles
- Commercial 5.5-HP Honda GX160 Engine
- Designed for easy starts & high-power output
- Oil Alert® monitors oil level, makes maintenance easier
- Precision engineered components result in lower vibration
- Engine Auto Idle
- When there is demand for air pressure, the unloader/throttle control will physically open the engine throttle to increase engine speed, then opposite when air is not needed
- Quiet Single Stage Pump
- Delivers 9.5 CFM @ 90 PSI; 145 maximum pressure
- Cast iron cylinder, crankshaft and valve plate, plus aluminum head for maximum heat dissipation
- 10,000-Hour Pump Life
- Guarantees long lifespan for your investment
- Low 1250 RPM for less wear and tear on components
- Oil sight gauge to easily maintain proper oil levels
- 8-Gallon Air Tank w/ ASME Safety Valves
- Easy to read large tank pressure gauges for accurate readings

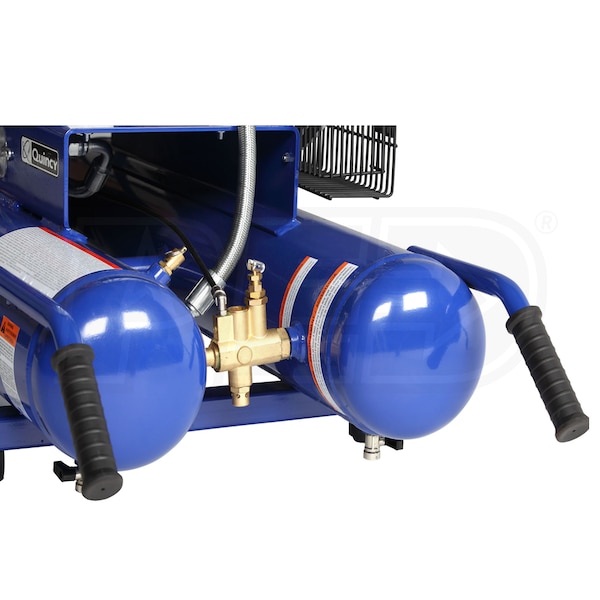

- Individual tank drains for quick tank draining to prevent rust

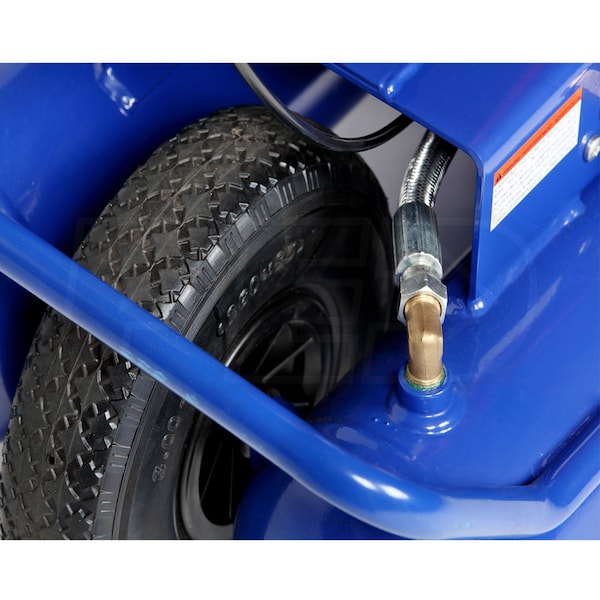

- Pneumatic wheel & easy grip handles make transporting effortlessly

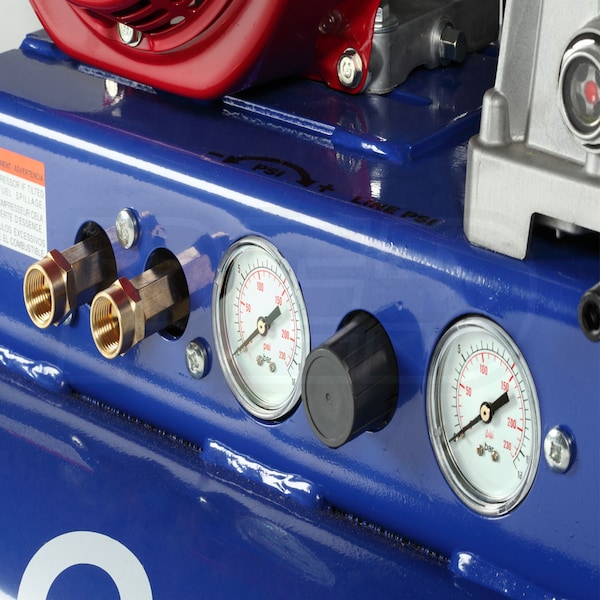

- Top-Mounted Control Panel
- 2 quick connect outlets for multiple tool usage
- Regulator allows maximum air flow for peak tool performance
- 1-Year Standard Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
G15H8WQ
General Information
Product Category
Air Compressor - Portable
Engine
HP
5.5
Auto Idle
Yes
Engine Brand
Honda GX
Starting System
Recoil Start
Engine Low Oil Shut-off
Yes
Pump
CFM
CFM
Cubic Feet Per Minute, which indicates the compressor's flow rate - or the amount of air that a compressor can produce at a given pressure level. Typically compressors that have higher CFM ratings are able to provide more air, which makes them ideal for larger applications
9.5
CFM Rated @
90 PSI
CFM @ 40 PSI
11.1
Pump Material
Cast Iron w/ Aluminum Head
Max PSI
Max PSI
PSI, or Pounds Per Square Inch, measures the amount of pressure placed on a square inch of space. In compressor terms, PSI is the amount of force that an air compressor can deliver
145 PSI
Oil Sight Glass
Yes
Pump Type
Single-Stage
After Cooler
After Cooler
An aftercooler is a mechanical heat exchanger designed to remove the heat and moisture of compression from a compressed air stream so the air is cool and dry enough for use in air-operated equipment. A compressed air aftercooler has three primary functions: Cool the air discharged from the air compressor
No
Pump Drive
Belt Drive
Oil Type
Oil Lubricated
Oil System
Splash Lubricated
Duty Cycle
50%
Pump Low Oil Shut-off
Pump Low Oil Shut-off
Prevents the air compressor from operating or restarting without an adequate amount of oil in the compressor
No
Tank
Tank Size
8 Gallons
Tank Outlet
3/8 Inch
Electronic Drain Valve
Electronic Drain Valve
The inexpensive and reliable electric drain valve (EDV) automatically removes condensate from your air system. It has an integral strainer to prevent clogging and saves time and money by eliminating the need for manual draining
No
Tank Orientation
Horizontal
Accessories
Pressure Gauge
Yes
Air Dryer
No
Overview
Product Category
Air Compressor - Portable
Weight
143 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
43 Inches
Product Width
18 Inches
Product Height
27 Inches
Power Type
Gas
UPC
791326012272
